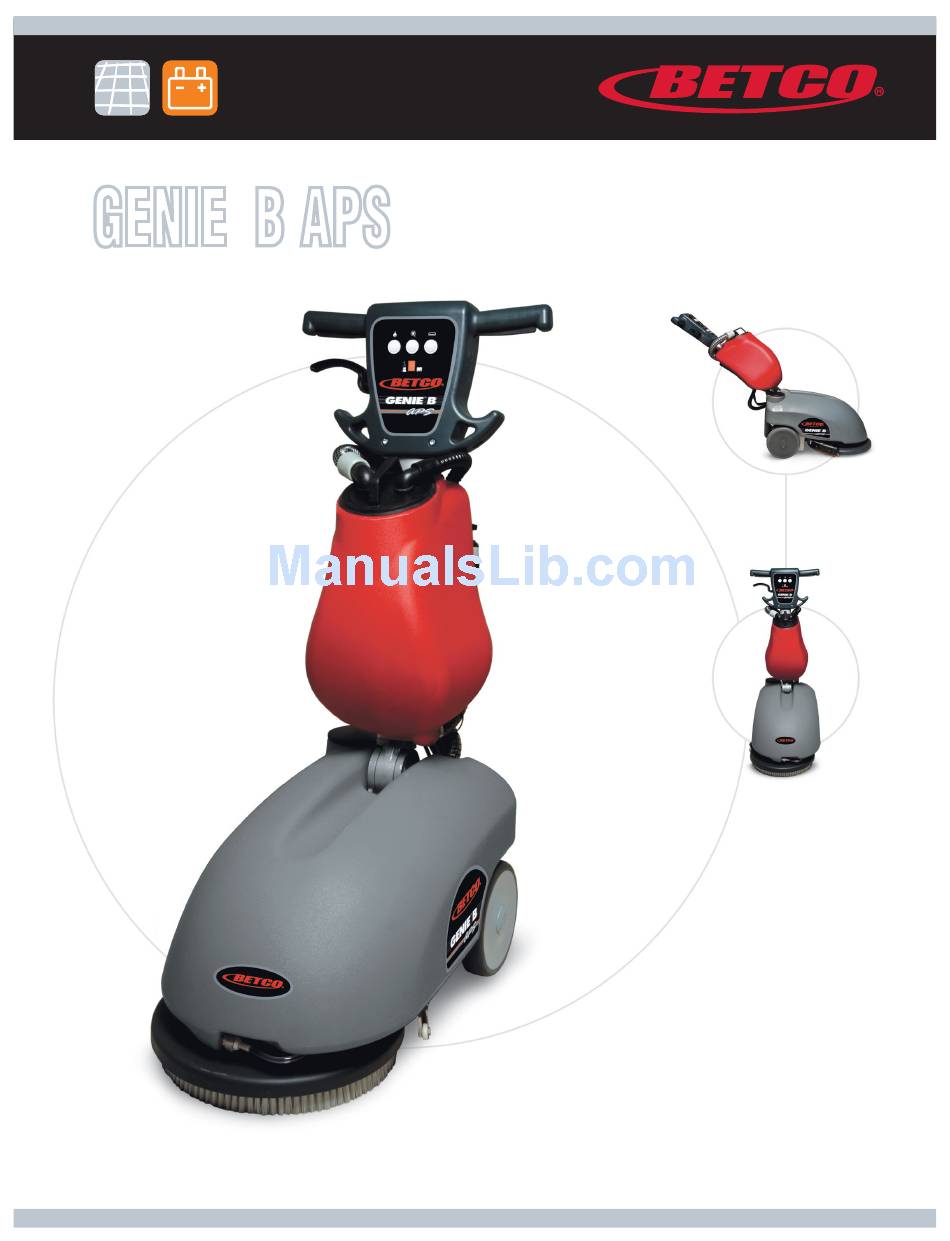

- Page 1 E83039-00 GENIE B APS 14” All Purpose ™ Automatic Scrubber Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECEIVING THE MACHINE..........3 TECHNICAL SPECIFICATIONS ........4 GENERAL SAFETY REGULATIONS ......... 5 MACHINE PREPARATION ........6 - 11 OPERATION ..............12 TURNING OFF THE MACHINE ........13 DAILY MAINTENANCE ...........14 - 15 SCHEDULED MAINTENANCE ........16 TROUBLESHOOTING GUIDE ........17 BRUSH AND SELECTION GUIDE ........ -
Page 3: Receiving The Machine
RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer’s service department. -
Page 4: Technical Specifications
TECHNICAL DESCRIPTION Measurement Unit Genie ™ Working width in (mm) 13.8 (350) Rear squeegee width in (mm) 17.3 (440) Work capacity ft2/h ( m2/h) 11,300 (1050) Water consumption g/m2 Battery Maintenance Free, gel battery Run time Up to 1.25 hours Brush &... -
Page 5: General Safety Regulations
• Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance manual. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contains oils and electronic components. The machine itself was built using totally recyclable materials. -
Page 6: Machine Preparation
MACHINE PREPARATION 1. HANDLING THE PACKED MACHINE No more than two boxes can be stacked. Total weight is 150 lbs. per box. Overall dimensions are: A: 19.7 in (500 mm) B: 19.7 in (500 mm) C: 45.3 in (1150 mm) 2. - Page 7 5. Position the battery inside the compartment with the terminals positioned toward the rear of the machine. 6. Connect Betco factory cables to the battery. WARNING: It is advised to only use sealed batteries to avoid leak- ing battery acid.
- Page 8 MACHINE PREPARATION 6. BATTERY MAINTENANCE AND DISPOSAL For maintenance and recharging, follow the instructions provided by the battery manufacturer or only use factory supplied electrical components. There are many different kinds of chargers according to the type and capacity of the bat- tery.
- Page 9 MACHINE PREPARATION 8. BATTERY DISCHARGE INDICATOR The battery indicator is digital with 4 fixed positions and a flashing signal. The numbers that appear on the display represent the approximate charge level. 4 = Maximum Charge 3 = 3/4 Charge 2 = 1/2 Charge 1 = 1/4 Charge 0 = Discharged Batteries (Flashing) WARNING: A few seconds after the appearance of the flashing "0",...
- Page 10 MACHINE PREPARATION 11. SOLUTION TANK The recovery tank must be completely emptied each time the solution tank is filled. Ensure the cap is correctly threaded into the solution tank (A). Ensure that the quick connect fitting is properly connected at the front of the machine (B).
-
Page 11: Machine Preparation ........................................6
MACHINE PREPARATION 13. RECOvERY TANK Make sure the recovery tank is empty, otherwise, empty it completely. Check that it is properly secured to the handle tube and that the hoses are correctly inserted in the tank elbows. Check the cap to ensure it is properly seated. 14. -
Page 12: Operation
OPERATION 1. MACHINE OPERATION Before installing the tanks, it is necessary to carry out the following operations: 1. Open the two rear latches to the battery compartment and connect the bat- tery. 2. Close the battery compartment and reconnect the latches. 3. -
Page 13: Turning Off The Machine
TURNING OFF THE MACHINE 13. RECOvERY TANK To properly turn off the machine after use or before performing any maintenance: 1. Turn off the solution control switch (3). 2. Turn off the vacuum switch (2). 3. Turn off the main switch (1). 4. -
Page 14: Daily Maintenance
DAILY MAINTENANCE 1. CLEANING THE RECOvERY TANK 1. Disconnect the vacuum hoses from the recovery tank lid. 2. Detach the recovery tank from the handle tube. 3. Remove the lid and empty the tank. 4. Rinse the float ball filter cage with clean water. 5. -
Page 15: Daily Maintenance ...........................................14
DAILY MAINTENANCE 3. REPLACING THE SQUEEGEE BLADES Examine the condition of the squeegee blades. Replace as necessary. To replace the blades: A. Lift the squeegee. B. Remove the two knobs. C. Detach the squeegee from the squeegee yoke. D. Remove the hose from the squeegee hose adaptor. WARNING: Before carrying out any type of maintenance, discon- nect the machine's battery connector. -
Page 16: Scheduled Maintenance
SCHEDULED MAINTENANCE 1. CLEANING THE SQUEEGEE HOSE Check the squeegee hose for blockage if the suction is insufficient and at peri- odic intervals. To clean the hose: A. Remove the hose end from the squeegee hose adapter. B. Remove the other end of the hose from the recovery tank. C. -
Page 17: Troubleshooting Guide
To restore power to the motor, switch off the machine and wait for the fuses to cool down. If the switch interrupts power supply again, contact Betco technical service assistance. 2. INSUFFICIENT WATER ON THE FLOOR A. Verify that the solution tank is clean. -
Page 18: Brush And Selection Guide
BRUSH SELECTION AND USE POLYPROPYLENE BRUSHES (PPL) These are used on all types of floors and offer good wear resistance. PAD DRIvERS Pad driver and an floor pad is recommended when cleaning smooth floors. There are two types of pad drivers: 1. -
Page 20: Parts Diagrams And Listings
BRUSH DECK PARTS DIAGRAM... - Page 21 BRUSH DECK PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81530 Spring, 17, 5x2, 5x69 mm E81709 Nyloc Hex Nut, M8 Zinc E82845 Spacer E83879 Flat Washer M5x11x1 Zinc E82761 Washer 6x12x1.6 E82844 Clutch Plate E20503 Spacer E81874 Flat Washer M8x17x1.6 Zinc...
- Page 22 SQUEEGEE SYSTEM PARTS DIAGRAM...
- Page 23 SQUEEGEE SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81934 Flat Washer M6x12x1.6 SS E81815 Squeegee Vacuum Adapter E81897 Bushing E81531 Squeegee Support Wheel 24 OD x 12.7 W E85792 Squeegee Shoe E20701 Squeegee Hose Guard E81753 Knob M5 E20616...
- Page 24 SQUEEGEE YOKE PARTS DIAGRAM...
- Page 25 SQUEEGEE YOKE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83278 Flat Washer M6.5x24x2 Zinc E87971 Squeegee Yoke Arm E86153 Squeegee Yoke E83710 Cotter Pin D2x20 Zinc E82839 Squeegee Yoke Pivot E83810 Knob E86263 Oval Hd Phil Machine Screw M5x35 SS E86152 Spacer E83834...
- Page 26 MAIN FRAME PARTS DIAGRAM...
- Page 27 MAIN FRAME PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20272 Bushing E86255 Flat Washer M10x21x2 SS E20020 Hex Lug E88349 SB50 Blue Electrical Connector E89141 Charger Plug Tee Handle E86269 Bushing E20050 Protective Trim Edging E81565 Clamp, 4.8x200 Black E20587...
- Page 28 SOLUTION AND RECOVERY TANKS PARTS DIAGRAM...
- Page 29 SOLUTION AND RECOVERY TANKS PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83476 Rivet, M6.4x10 Nylon E81532 Hose, Vacuum 29 D x 1250 L E81534 Recovery Tank Cap ASM E81968 Latch E82853 Filter Flange E82712 Quick Disconnect, Female 1/4" E82381 Gasket Ring E81546...
- Page 30 CONTROL HANDLE PARTS DIAGRAM...
- Page 31 CONTROL HANDLE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E82796 Switch, Momentary E85770 High Hex Nut M6x13 Zinc E81793 Spring Pin M6x12 Zinc E81791 Plug E20273 Connector Tube E88173 Flat Hd Phil Machine Screw M6x10 Zinc E20620 Handle Tube E20364...
- Page 32 ELECTRIC SYSTEM PARTS DIAGRAM...
- Page 33 ELECTRIC SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81787 Ribbon Cable E83547 M6x16 Bolt, Zinc Hex Head E83550 Nyloc Hex Nut, M6 Zinc E85788 Electrical Housing E82761 Washer 6x12x1.6 E85771 Electrical Cover E81767 Relay Electrical Board...
- Page 34 BATTERY CHARGER DIAGRAM...
- Page 35 ELECTRICAL LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20363 Flat Hd SL Machine Screw M5x12 SS E20272 Bushing E20579 Protective Trim Edging E20322 Hex Nut, M5 SS E20050 Protective Trim Edging E20435 Nyloc Hex Nut, M3 SS E20393 Screw, Pan Hd Phil Self Tap E83476...
- Page 36 ACCESSORIES DIAGRAM 13” Pad Clutch Plate 14” Pad Medium Brush STD General Brush Heavy Brush...
- Page 37 ACCESSORIES LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83863 Brush, General Scrub 0.3 mm PPL E82367 Center Lock E82438 Power Cord E82526 Brush, Medium Scrub 0.4 mm PPL E82408 Pad Driver E81608 Brush, Heavy Scrub 0.6 mm PPL E88140 Pad Holder 14"...
-
Page 40: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
