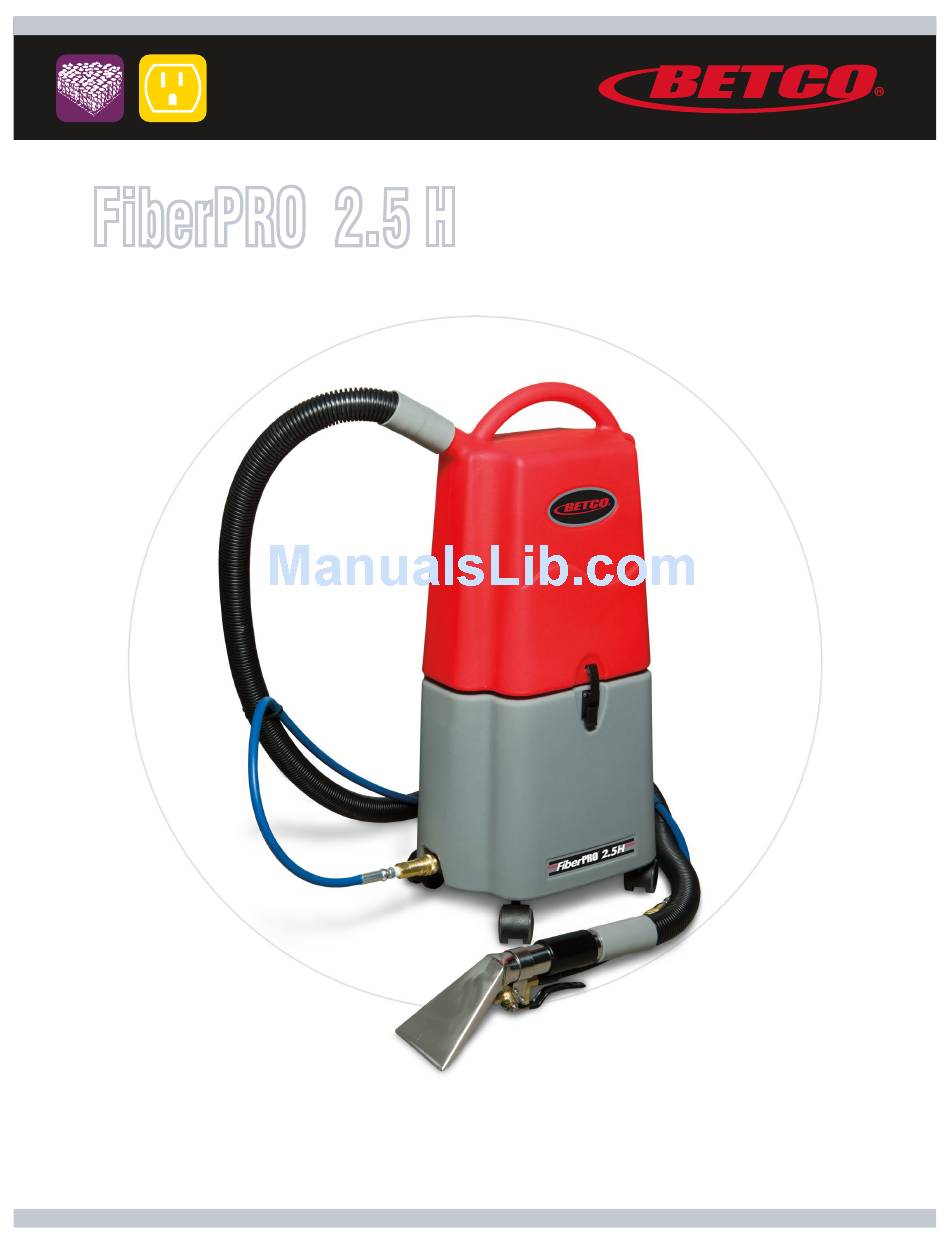

- Page 1 E29976-00 FiberPRO 2.5 H Heated Spot ® Extractor Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECEIVING THE MACHINE..........3 TECHNICAL SPECIFICATIONS ........3 GENERAL SAFETY REGULATIONS ......... 4 MACHINE OVERVIEW ............ 5 MACHINE COMPONENTS ..........6 MACHINE OPERATION ..........7 - 8 PARTS DIAGRAMS AND LISTINGS .......10 - 11 WARRANTY ..............12... -
Page 3: Receiving The Machine
RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer service department. -
Page 4: General Safety Regulations
• Have your BETCO service center check the machine once a year. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contain oils and electronic components. The machine was built using totally recyclable materials. -
Page 5: Machine Overview
750 – 1000 hours of use. To help maintain a professional image, clean the exterior of the machine with an all-purpose detergent such as Betco Green Earth Peroxide Cleaner. The exterior can further be protected with Betco Brite MSP polish. Lubricate the wheels, casters, and... -
Page 6: Machine Components
MACHINE COMPONENTS 1. MAIN BODY OF MACHINE A. Handle B. Vacuum Hose Connection C. Recovery Tank D. Latch E. Solution Tank F. Motor Compartment G. Power Switches 2. INTERNAL MACHINE COMPONENTS A. Vacuum Inlet Filter B. Solution Fill Port C. Recovery Tank D. -
Page 7: Machine Operation
MACHINE OPERATION 1. INSPECT THE MACHINE Before each use inspect the machine, hoses, and cleanliness and completeness. Ensure the spray nozzles on the cleaning tool are tight. 2. REMOVE RECOVERY TANK Release the two latches on the side of the machine, grasp the handle on top of the recovery tank, and pull the recovery tank up and off the solution tank. - Page 8 ® tank, be sure to mix well and always follow the use and dilution instructions on the chemical label. Use a Betco cleaning deter- gent with a pH between 5 and 10 to reduce the likelihood of premature wear to the pump and other seals. If excess foaming occurs, use Betco defoamer to prevent damage to electrical components.
-
Page 10: Parts Diagrams And Listings
FIBERPRO 2.5 H PARTS DIAGRAM ®... - Page 11 FIBERPRO 2.5 H PARTS LISTING ® Item# Part # Description Qty. Item# Part # Description Qty. E84355 Recovery Tank, 2.5 Spotter E84371 Hose E84356 Solution Tank, 2.5 Spotter E84372 Hose Barb, Brass E84373 Heater, Complete E84357 Vaccum Inlet Assembly E84358 Float Ball Assembly E84374 Elbow, Hose Barb...
-
Page 12: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
