BETCO GeneSys 26D Operator And Parts Manual

26", 28"and 32" mid-size scrubber with wet or agm batteries

Hide thumbs Also See for GeneSys 26D:

Operator and parts manual (52 pages)

Troubleshooting manual (24 pages)

Quick Links

Download this manual

E27200

E27300

GENESYS

Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com

E27400

E27500

SERIES

™

400 Van Camp • Bowling Green, Ohio 43402

26", 28"and 32"

Mid-Size Scrubber

with Wet or AGM Batteries

Operator and Parts

Manual

Table of Contents

Chapters

Need help?

Do you have a question about the GeneSys 26D and is the answer not in the manual?

Questions and answers

Summary of Contents for BETCO GeneSys 26D

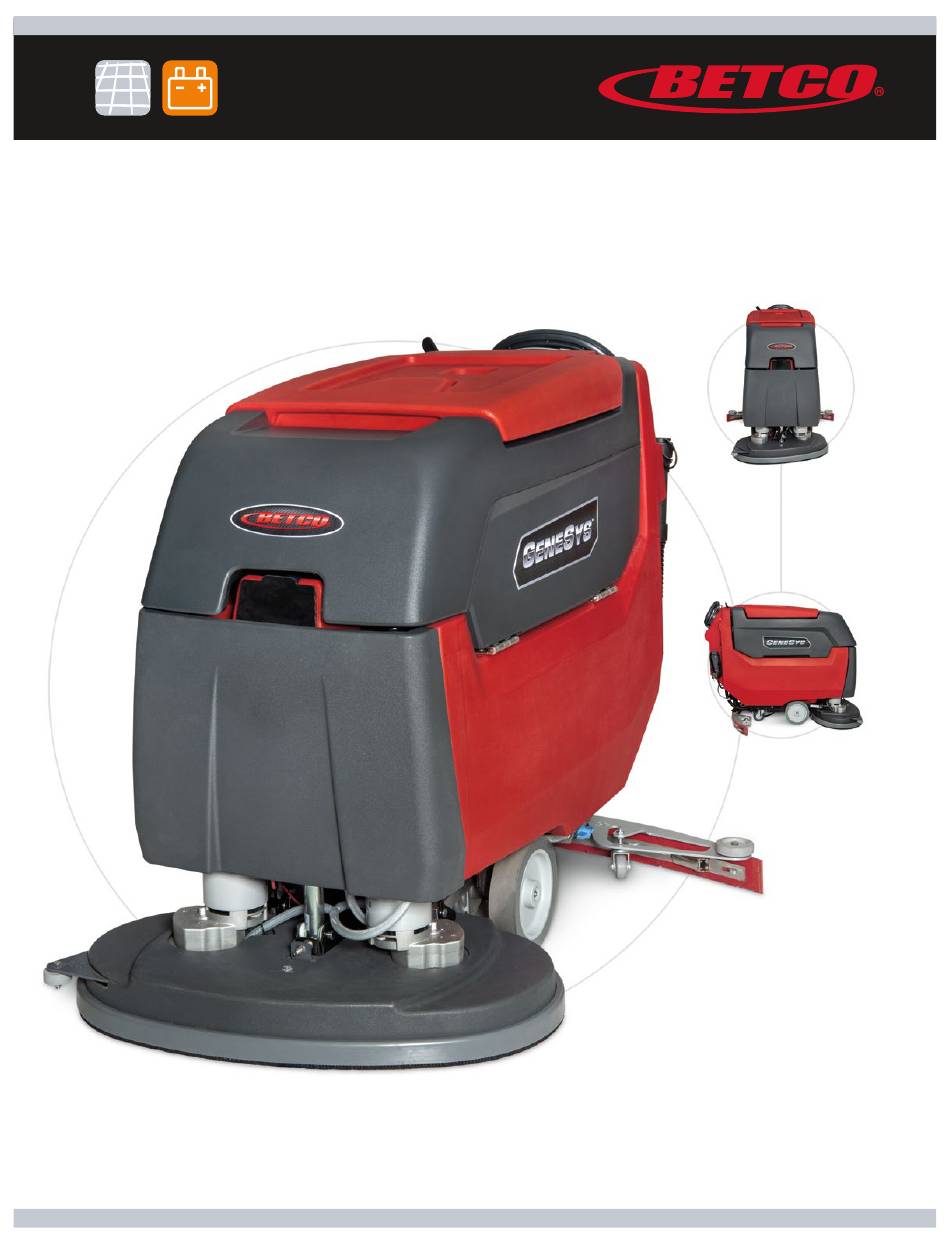

Page 1 E27500 26", 28"and 32" GENESYS GENESYS SERIES SERIES ™ Mid-Size Scrubber with Wet or AGM Batteries Operator and Parts Manual 400 Van Camp • Bowling Green, Ohio 43402 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications ..............................3 Safety Information ............................4 Machine Preparation: Unpacking........................5 Transporting the Machine: Tie Down Procedure .....................6 Batteries Connecting ............................7 Installation ............................7 Servicing Lead Acid batteries ......................8 Servicing Lead Acid batteries with Fortify™ Wet Battery Protection System ........8 Charging ................................9 Machine Preparation / Setup ..........................10 Drive System ..............................11 Solution System...
Page 3: Specifications
SPECIFICATIONS Specifications GeneSys GeneSys GeneSys GeneSys 28ORB ™ ™ ™ ™ Productivity (sq. ft./hour) Up to 29,250 Up to 31,500 Up to 36,000 Up to 31,500 Cleaning Pad Width 26 in. 28 in. 32 in. 28 in. Pad / Brush Dimensions (2) 14 in.
Page 4: Safety Information
• Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance manual. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contains oils and electronic components. The machine was built using totally recyclable materials.
Page 5: Machine Preparation: Unpacking
MACHINE PREPARATION: UNPACKING Note: Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the carrier and also to our customer’s service department. Only acting promptly in this manner will make it possible to receive missing material and to be compensated for shipping damage.
Page 6: Transporting The Machine: Tie Down Procedure
TRANSPORTING THE MACHINE: TIE DOWN PROCEDURE If you are planning to transport the GeneSys scrubber, securing the machine(s) is key to keeping the machine(s) protected and in good working condition. Below are some suggestions for how to efficiently and effectively secure the GeneSys™ scrubbers. The GeneSys™...
Page 7: Installation
Depending on the local climate, charging methods, application, etc., Betco recommends that batteries be checked no less than once a month until you get a feel for how often your batteries need watering.
Page 8: Servicing Lead Acid Batteries
BATTERIES continued GENERAL WATERING INSTRUCTIONS Maintaining Lead Acid Batteries with Fortify™ Wet Battery Protection System • Add water, never acid, to cells (distilled water recommended). • DO NOT OVER WATER. The wet battery protection system tells the operator when to water •...
Page 9: On-Board Charger
CHARGING WARNING: Perform one battery charging cycle before using the machine. ON-BOARD CHARGER The on-board charger has three LEDs to indicate the status of the charging cycle when it is plugged in: SIGNAL (LED) MEANING Red LED flashing twice Battery charger is set to charge LEAD-ACID batteries Green LED is flashing twice Battery charger is set to charge GEL and /or AGM batteries Red LED is on...
Page 10: Machine Preparation / Setup
MACHINE PREPARATION / SETUP TURNING THE MACHINE ON/OFF The key switch to turn on the machine is located on the lower control panel. Turn clockwise for on (I) and counter clockwise for off (O). CIRCUIT BREAKERS Circuit breakers protect the GeneSys machine’s motors. These circuit breakers will trip under misapplications of the machine.
Page 11: Operating The Machine
DRIVE SYSTEM OPERATING THE MACHINE 1. To control the machine, place hand(s) around the console and bail. Squeezing the bail activates the transaxle drive forward and, when the scrub deck is in operating position, the brush motors and solution flow. 2.
Page 12: Solichem Solution Distribution System
SOLICHEM SOLUTION DISTRIBUTION SYSTEM ™ Solid on-board chemical delivery technology removes the need to pour chemical into the solution tank. Water dissolves the SoliChem™ solid and adds the cleaning chemical directly onto the floor wetting system. The SoliChem System also alerts the operator of low SoliChem solid with an LED light.
Page 13: Solution Flow
SOLUTION FLOW The solution control knob is located on the lower control panel left of the key. This controls the water pump and is only active when the scrub head is in an operating position. This knob adjusts water flow rate. For Touch Encoder machines, adjusting flow rate is found in the settings.
Page 14: Head Lift
MACHINE OPERATIONAL SETTINGS HEAD LIFT 1. The head lift is controlled by a linear actuator which raises and lowers the scrub deck. 2. The standard controls knob on the console has 3 down pressure settings and transport mode. 3. Disk machines are equipped with a self-adjusting shroud and bristle skirt that virtually eliminates overspray.
Page 15: Disk Machines Pad Drivers And Brushes
DISK MACHINE PAD DRIVERS AND BRUSHES PAD DRIVER AND BRUSH REMOVAL NOTE: DO NOT use any machine without a pad or brush. Operating a machine without a pad or brush will damage the machine. 1. Remove the pad drivers or brushes from the machine by pushing and holding the red "Auto Off"...
Page 16: Orbital Pads
ORBITAL PADS AND ORBITAL FINISH REMOVAL STANDARD CLEANING OPERATIONS NOTE: Do NOT lower the Orbital Scrub Head without a pad attached. This will damage the scrub head. 1. Attach the pad ½” in front of the scrub head and align the front corners and sides.
Page 17: Recovery System
RECOVERY SYSTEM RECOVERY TANK: Draining 1. Find an approved drain location to empty the recovery tank. 2. Lift the drain hose off of the hose hook, remove the cap (keeping it above the tank’s water level), fold over the collar and lower into the drain location. 3.
Page 18: Debris Tray
RECOVERY SYSTEM continued FORTIFY FOAM CONTROL / VACUUM PROTECTION SYSTEM ™ Proactively control the foam and protect the vacuum fan with the Fortify foam control puck underneath the debris tray inside the recovery tank. FORTIFY FOAM CONTROL PUCK REPLACEMENT ™ 1.
Page 19: Squeegee Assembly
SQUEEGEE ASSEMBLY CLEANING THE SQUEEGEE BLADES 1. Remove the squeegee assembly from the machine by loosening the two knobs. 2. Thoroughly clean and rinse the underside of the squeegee frame, blades and neck 3. Wipe down and dry the squeegee to remove any water and loose debris. DRIP TRAP INSPECTION 1.
Page 20: Selection Guide
SQUEEGEE SELECTION GUIDE The GeneSys™ Mid-Size Scrubber comes standard with Linatex squeegee ® blade material. This has been proven to be a very versatile, high performance material across multiple flooring types. As an option, sold separately, the GeneSys™ can be equipped with Primothane ®...
Page 21: Operating Lever
SQUEEGEE OPERATION 1. Lower the squeegee: Move the squeegee lever to the right. The vacuum motor will come on. 2. Raise the squeegee: Move the squeegee lever to the left. The vacuum motor will turn off after 7 seconds. SQUEEGEE CASTER HEIGHT has been set at the factory for optimal squeegee performance. DO NOT ADJUST. Move handle to right Move handle to left Squeegee...
Page 22: Registering The Device
FORTIFY ARMOR TELEMETRY ™ ™ The Betco Genesys™ machine has an optional ARMOR™ Telemetry unit ® that can monitor the machine through a cellular network. The ARMOR unit is capable of monitoring daily run times, charge times, charge cycles, maintenance needs, location, and if the machine has experienced an impact.
Page 23: Setting The Time
TIMER LOCKOUT The Betco Genesys machine has an optional lockout timer that can limit the time of day, and days, that the machine can be operated. Limiting the hours that the machine can function prevents unauthorized use while not interfering with productivity. The timer is located on the back panel of the machine and is protected from tampering by a metal plate.
Page 24: Parts Diagrams And Listings
TRANSAXLE AND WHEELS DIAGRAM AND PARTS LISTING TORQUE TO 17 ft-lbs MARK POSITION TORQUE TO 17 ft-lbs MARK POSITION TORQUE TO 17 ft-lbs MARK POSITION Item# Part # Description Qty. Item# Part # Description Qty. E28511 FRAME WELDMENT E12524 NUT, HEX, 5/16-18, SS E29400 BRACKET, TRANSAXLE MTG E29439...
Page 25 LIFT ARMS AND SQUEEGEE MOUNT DIAGRAM AND PARTS LISTING FRAME SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28684 BUSHING, SLEEVE, 0.323 ID x 0.497 OD, 0.655 LG E11146 NUT, HEX, 3/8-16, NYLOC, ZP E28685 BUSHING, SLEEVE, 0.501 ID x 0.627 OD, 0.625 LG E28936 BEARING, SLEEEVE, 0.375 ID x 0.501 OD x 0.375 LG...
Page 26 FRAME FLUID DELIVERY DIAGRAM AND PARTS LISTING FRAME SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E29601 PUMP, WATER, 1.0 gpm E28940 VALVE, BALL, 1/2 FNPT, PLASTIC E28775 WASHER, FLAT, 0.203 ID x 0.438 OD, 0.040 THK, SS E28752 FITTING, ADAPTER, 3/4 BARB X 3/4 MNPT E28753...
Page 27: Mark Position
SOLUTION TANK BACK DIAGRAM AND PARTS LISTING CONSOLE HANDLE EP50402 SHOWN FOR REFERENCE If ordering replacement solution tank, LOCTITE 242 (BLUE) use part number EP50283 FRAME SHOWN FOR REFERENCE TORQUE TO 8.5 ft-lbs. MARK POSITION THREAD SEALANT (TRU-BLU) FITTINGS E28752 AND E28940 SHOWN FOR REFERENCE Item# Part # Description Qty.
Page 28 SOLUTION TANK FRONT DIAGRAM AND PARTS LISTING LOCTITE 242 (BLUE) SOLUTION TANK SHOWN FOR REFERENCE BRACKET SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E29579 BUSHING, SLEEVE, 0.315 ID x 0.500 OD, 0.250 LG, OIB 4 E28719 WASHER, FLAT, 0.656 ID x 1.312 OD, 0.094 THK, NYLON 1 E29388...
Page 29: Nut, Hex, 5/16-18, Ss
RECOVERY TANK DIAGRAM AND PARTS LISTING SOLUTION TANK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E12524 NUT, HEX, 5/16-18, SS E29527 HEPA FILTER-GENESYS MS EP50286 SEAL, MSAS RECOVERY TANK LID, 83 IN LG E28575 RECOVERY TANK, GS MSAS E28581 VACUUM FAN, 24VDC, 450W...
Page 30: Nut, Hex, M12-1.75, Nyloc
HEAD LIFT DIAGRAM AND PARTS LISTING SOLUTION TANK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E10112 BOLT, HEX HD, 5/16-18 x 1.250 LG, ZP E28821 WASHER, LOCK, 0.115 ID x 0.260 OD, EXT TOOTH, ZP E28847 COTTER PIN, 0.25 EYE, 0.125 WIRE, ZP E20702...
Page 31 HEAD LIFT WITH SOLICHEM OPTION DIAGRAM AND PARTS LISTING Only applies to machines with Solichem Option SOLUTION TANK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E10112 BOLT, HEX HD, 5/16-18 x 1.250 LG, ZP E28847 COTTER PIN, 0.25 EYE, 0.125 WIRE, ZP EP50420...
Page 32 DISC MACHINE ACTUATOR DIAGRAM AND PARTS LISTING Only applies to machines with disc heads E28726 SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28628 ACTUATOR, HEAD LIFT E28699 PIN, CLEVIS, 0.500 OD X 2.250 LG E28671 PIN, COTTER, HAIRPIN E83145...
Page 33 ORBITAL MACHINE ACTUATOR DIAGRAM AND PARTS LISTING Only applies to machines with orbital heads E28726 SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28628 ACTUATOR, HEAD LIFT E12410 NUT, HEX, 1/2-13, NYLOC, GRADE 5, ZP E28815 BOLT, HEX HD, 1/2-13 x 2.500 LG, ZP E83145...
Page 34 26” DISC LIFT BRACKETS DIAGRAM AND PARTS LISTING SOLUTION TANK AND FRAME SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28654 BRACKET, DISK HEAD ROLLER E29514 BRACKET, LIFT ARM PIVOT E81089 BOLT, HEX HD, 5/16-18 x 0.750 LG, ZP E11043 BOLT, CARRIAGE, 5/16-18 x 2.000 LG E28697...
Page 35 26” DISC HEAD DIAGRAM AND PARTS LISTING MACHINES WITH SOLICHEM: CONNECTS TO EP50419 FROM FLUID DELIVERY ASSEMBLY MACHINES WITHOUT SOLICHEM; CONNECTS TO EP50413 FROM FRAME ASSEMBLY SCRUB DECK FRAME SHOWN FOR REFERENCE Center-Lok for pad driver assembly: E20667 Item# Part # Description Qty.
Page 36 28” DISC LIFT BRACKETS DIAGRAM AND PARTS LISTING SOLUTION TANK AND FRAME SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28654 BRACKET, DISK HEAD ROLLER E29514 BRACKET, LIFT ARM PIVOT E81089 BOLT, HEX HD, 5/16-18 x 0.750 LG, ZP E11043 BOLT, CARRIAGE, 5/16-18 x 2.000 LG E28697...
Page 37 28” DISC HEAD DIAGRAM AND PARTS LISTING MACHINES WITH SOLICHEM: CONNECTS TO EP50419 FROM FLUID DELIVERY ASSEMBLY MACHINES WITHOUT SOLICHEM: CONNECTS TO EP50413 FROM FRAME ASSEMBLY SCRUB DECK FRAME SHOWN FOR REFERENCE Center-Lok for pad driver assembly: E20667 Item# Part # Description Qty.
Page 38 32” DISC LIFT BRACKETS DIAGRAM AND PARTS LISTING SOLUTION TANK AND FRAME SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E29514 BRACKET, LIFT ARM PIVOT E28654 BRACKET, DISK HEAD ROLLER E81089 BOLT, HEX HD, 5/16-18 x 0.750 LG, ZP E11043 BOLT, CARRIAGE, 5/16-18 x 2.000 LG E28697...
Page 39 32” DISC HEAD DIAGRAM AND PARTS LISTING MACHINES WITH SOLICHEM: CONNECTS TO EP50419 FROM FLUID DELIVERY ASSEMBLY MACHINES WITHOUT SOLICHEM: CONNECTS TO EP50413 FROM FRAME ASSEMBLY SCRUB DECK FRAME SHOWN FOR REFERENCE Center-Lok for pad driver assembly: E20667 Item# Part # Description Qty.
Page 40 28” ORBITAL LIFT BRACKETS DIAGRAM AND PARTS LISTING SOLUTION TANK SHOWN FOR REFERENCE LOCTITE 242 (BLUE) FRAME SHOWN FOR REFERENCE LOCTITE 242 (BLUE) Item# Part # Description Qty. Item# Part # Description Qty. E28650 BRACKET, ORBITAL HEAD LIFT WELDMENT E28531 ISOLATOR BUSHING, 0.313 ID x 1.250 OD, PVC BLUE E28680 BRACKET, ORB ROLLER TRACK, WELDMENT...
Page 41 28” ORBITAL MOTOR AND HUB DIAGRAM AND PARTS LISTING ANTI-SEIZE LOCTITE 242 ORBITAL DECK (BLUE) SHOWN FOR REFERENCE LOCTITE 242 (BLUE) LOCTITE 680 (GREEN) LOCTITE 242 (BLUE) LOCTITE 242 (BLUE) LOCTITE 242 (BLUE) Item# Part # Description Qty. Item# Part # Description Qty.
Page 42 28” ORBITAL FLUID FEED DIAGRAM AND PARTS LISTING MACHINES WITH SOLICHEM: CONNECTS TO EP50428 FROM ORBITAL FLUID DELIVERY ASSEMBLY MACHINES WITHOUT SOLICHEM: CONNECTS TO EP50413 FROM FRAME ASSEMBLY ORBITAL DECK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty.
Page 43 260AH WET BATTERY DIAGRAM AND PARTS LISTING CONNECTS TO POSITIVE STANDOFF ON INNER ELECTRICAL PANEL CONNECTS TO NEGATIVE STANDOFF ON INNER ELECTRICAL PANEL SOLUTION TANK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28975 FUSE, 100A E28506 BATTERY, GC2H, 6V 260 Ah, WET CELL, DEEP CYCLE E29201...
Page 44 220AH AGM BATTERY DIAGRAM AND PARTS LISTING CONNECTS TO POSITIVE STANDOFF ON INNER ELECTRICAL PANEL CONNECTS TO NEGATIVE STANDOFF ON INNER ELECTRICAL PANEL SOLUTION TANK SHOWN FOR REFERENCE Item# Part # Description Qty. Item# Part # Description Qty. E28975 FUSE, 100A E88031 BATTERY, AGM, 6V 220 AH E29201...
Page 45 35” SQUEEGEE DIAGRAM AND PARTS LISTING CONNECTS TO E29576 FROM RECOVERY TANK ASSEMBLY TORQUE TO 130 in-lbs (10.8 ft-lbs) MIN. ANTI-SEIZE E28520 SHOWN FOR REFERENCE If ordering whole squeegee assembly, use part number EP50330 Item# Part # Description Qty. Item# Part # Description Qty.
Page 46 40” SQUEEGEE DIAGRAM AND PARTS LISTING ANTI-SEIZE CONNECTS TO E29576 FROM RECOVERY TANK ASSEMBLY TORQUE TO 130 in-lbs (10.8 ft-lbs) MIN. E28520 SHOWN FOR REFERENCE If ordering whole squeegee assembly, use part number EP50331 Item# Part # Description Qty. Item# Part # Description Qty.
Page 47 45” SQUEEGEE DIAGRAM AND PARTS LISTING ANTI-SEIZE CONNECTS TO E29576 FROM RECOVERY TANK ASSEMBLY TORQUE TO 130 in-lbs (10.8 ft-lbs) MIN. E28520 SHOWN FOR REFERENCE If ordering whole squeegee assembly, use part number EP50332 Item# Part # Description Qty. Item# Part # Description Qty.
Page 48 DISC MACHINE INNER ELECTRICAL PANEL DIAGRAM AND PARTS LISTING Only applies to machines with disc heads USED TO ATTACH RELAYS ON WIRE HARNESS SOLUTION TANK SHOWN FOR REFERENCE CONNECTS TO RED ANDERSON CONNECTOR ON BATTERY CHARGER E28907 Item# Part # Description Qty.
Page 49 DISC MACHINE OUTER USED TO SECURE CABLES IN BATTERY COMPARTMENT ELECTRICAL PANEL DIAGRAM E28621 SHOWN FOR REFERENCE AND PARTS LISTING SOLUTION TANK AND FRAME SHOWN FOR REFERENCE Only applies to machines with disc heads Control Board Fuse: E28852 Replacement Key: E89382 Item# Part # Description Qty.
Page 50 ORBITAL MACHINE OUTER ELECTRICAL PANEL DIAGRAM E28621 SHOWN FOR REFERENCE AND PARTS LISTING SOLUTION TANK AND FRAME SHOWN FOR REFERENCE Only applies to machines with orbital heads Control Board Fuse: E28852 Replacement Key: E89382 Item# Part # Description Qty. Item# Part # Description Qty.
Page 51 HANDLE BAIL DIAGRAM AND PARTS LISTING If ordering whole bail assembly, use part number EP50402 Item# Part # Description Qty. Item# Part # Description Qty. E29325 BRACKET, CONTROLS HANDLE, WELDMENT E12524 NUT, HEX, 5/16-18, SS E29337 BEARING, SLEEVE, 0.500 ID x 0.750 OD, 0.500 LG E28669 SWITCH, 15A SPDT, LEVER ACTION E29335...
Page 52 CONTROL PANEL DIAGRAM AND PARTS LISTING CONSOLE HANDLE EP50316 SHOWN FOR REFERENCE INCLUDED WITH E12630 INCLUDED WITH E29323 Item# Part # Description Qty. Item# Part # Description Qty. E12630 BDI (BATTERY DISCHARGE INDICATOR AND HOUR METER) 1 E29323 SWITCH, ROTARY E28788 SCREW, SET, CUP POINT, #5-40 x 0.188 LG E29324...
Page 53 ARMOR SLOT COVER PLATE DIAGRAM AND PARTS LISTING OUTER ELECTRICAL PANEL SHOWN FOR REFERENCE Item# Part # Description Qty. E29363 PLATE, TIMER, ARMOR COVER E28648 SCREW, BUTTON HD HEX, 1/4-20 X 0.500 LG ARMOR OPTION DIAGRAM AND PARTS LISTING Only applies to machines OUTER ELECTRICAL PANEL with Armor Option SHOWN FOR REFERENCE...
Page 54 LOCK-OUT TIMER OPTION DIAGRAM AND PARTS LISTING Only applies to machines with Lock-Out Timer OUTER ELECTRICAL PANEL SHOWN FOR REFERENCE Option Item# Part # Description Qty. E29374 STANDOFF, #4-40, 0.250 OD, 1.250 LG E29368 WASHER, FLAT, 0.125 ID x 0.312 OD, 0.030 THK E29369 SCREW, BUTTON HD HEX, #4-40 x 0.250 LG, ZP E28966...
Page 55: Parts Listing
DISC HEAD SOLICHEM SOLUTION TANK SHOWN FOR REFERENCE OPTION DIAGRAM AND PARTS LISTING Only applies to machines with disc heads and Solichem Option E28747 AND TUBING FROM DISC HEAD ASSEMBLY SHOWN FOR REFERENCE EP50413 FROM FRAME ASSEMBLY SHOWN FOR REFERENCE Item# Part # Description Qty.
Page 56 SOLICHEM PUCK CAGE DIAGRAM E29307 SHOWN FOR REFERENCE AND PARTS LISTING Only applies to machines with Solichem Option E29306 AND E29316 Item# Part # Description Qty. SHOWN FOR REFERENCE E28757 FLANGE, INNER PUCK CAGE, TOP E29308 FLANGE, INNER PUCK CAGE E29309 SCREEN, PUCK CAGE, SS EP50421...
Page 57: Electrical Schematics
DISC MACHINE ELECTRICAL SCHEMATIC Only applies to machines with disc heads 10 BLK 2 RED 24 VDC F1 - 100A 10E BLK CHARGER CHARGER 2A RED INTERLOCK 10A BLK J1-1 Machine Control J1-2 2B RED 45 GRN Board 10E BLK 16 BLU 38 GRY J3-3...
Page 58 ORBITAL MACHINE ELECTRICAL SCHEMATIC Only applies to machines with orbital heads 2 RED 10 BLK 24 VDC F1 - 100A 10E BLK CHARGER CHARGER 2A RED INTERLOCK 10A BLK J1-1 Machine Control J1-2 2B RED 45 GRN Board 10E BLK 16 BLU 38 GRY J3-3...
Page 59: Recommended Spare Parts List
GENESYS RECOMMENDED SPARE PARTS ™ Part # Part Name Machine Sub-System 28ORB E29449 Front Squeegee Blade 35in Squeegee E29450 Rear Squeegee Blade 35in Squeegee E28504 Front Squeegee Blade 40in Squeegee E28502 Rear Squeegee Blade 40in Squeegee E29454 Front Squeegee Blade 45in Squeegee E29455 Rear Squeegee Blade 45in...
Page 60: Recommended Maintenance
GENESYS RECOMMENDED MAINTENANCE ™ SYSTEM REFERENCE SECTION DAILY WEEKLY MONTHLY SIX MONTHS CONTROL PANEL INSPECT ALL CONTROLS AND HARDWARE FOR PARTS DIAGRAMS SECURITY & SERVICEABILITY VERIFY PROPER OPERATION OF ALL CONTROLS SOLUTION DISTRIBUTION VERIFY SOLUTION FLOW AND ADJUSTMENT SOLUTION DISTRIBUTION OPERATION CLEAN AND INSPECT INLINE FILTER SOLUTION DISTRIBUTION...
Page 61: Troubleshooting Guide
TROUBLESHOOTING GUIDE SUB-SYSTEM SYMPTOM POSSIBLE ROOT CAUSE HOW TO CHECK POSSIBLE FIX Solution System Poor or No Water Flow Solution Tank is empty Check Sight Tube Fill with wate Ball Valve is closed Visual Check of valve Open Valve Debris in line Visual Check of solution lines Clear blockages Plugged Filter...
Page 62 TROUBLESHOOTING GUIDE continued SUB-SYSTEM SYMPTOM POSSIBLE ROOT CAUSE HOW TO CHECK POSSIBLE FIX Head Lift Actuator Extends Fully Cams need adjusted Verify Cams are in the appropriate location Adjust Cam location when a pressure is selected Switch Position (Angle) Changed Verify that the switches are engaging properly as Adjust the angle to where the Cam will engage the actuator moves...
Page 64: Warranty
Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
