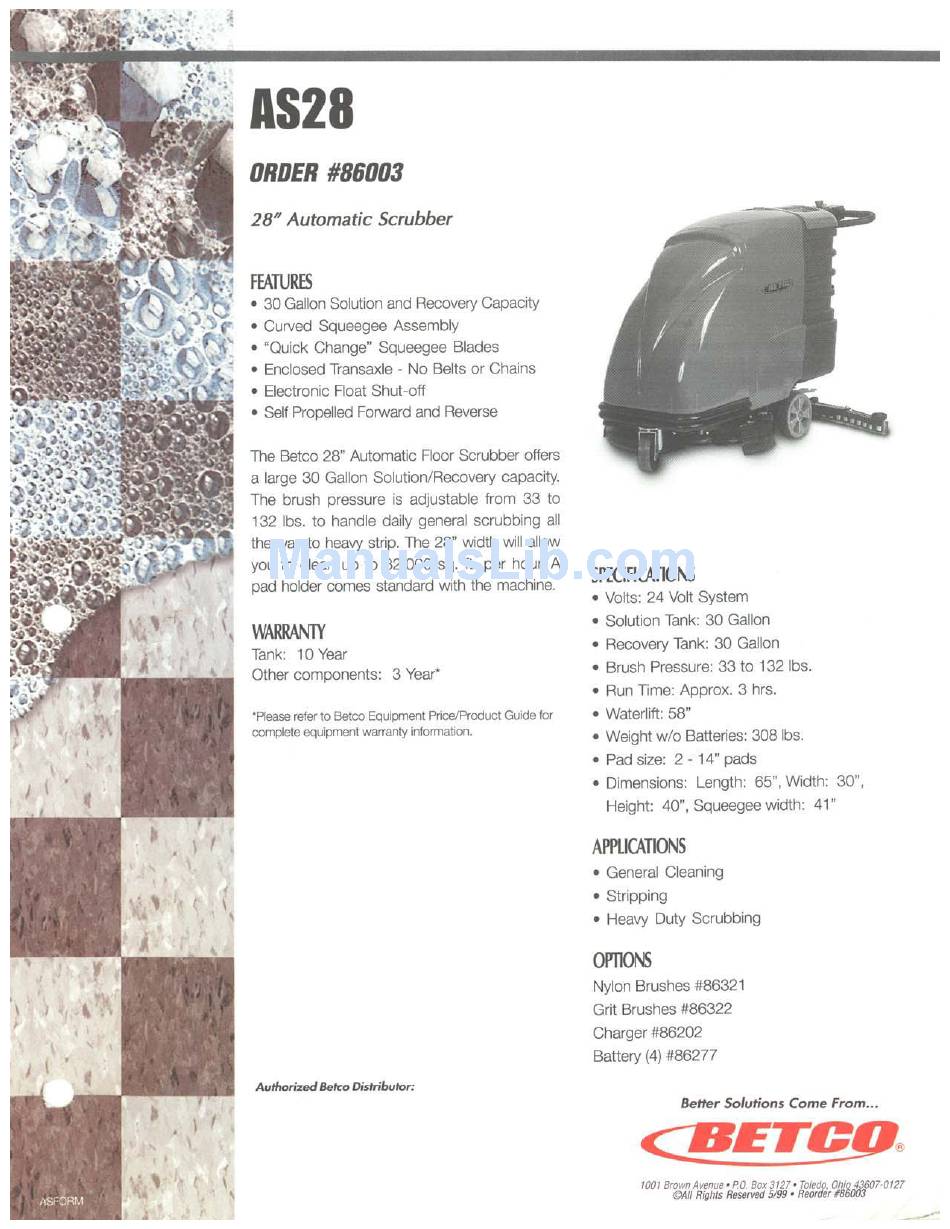

BETCO AS28 Operator's Manual

28" automatic scrubber
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AS28 and is the answer not in the manual?

Questions and answers

Related Manuals for BETCO AS28

Summary of Contents for BETCO AS28

  • Page 53 PF02331BC-3 ab SN from 98K191 CODE: DESCRIPTION: REF. CODE DESCRIPTION 1 PL1098 SQUEEGEE LIFT 2 PL1248 TANK 3 PL1252 ELECTRIC UNIT 3 4 PL1251 ELECTRIC UNIT 2 5 PL1246 HEAD LIFT 6 PL1253 SQUEEGEE 7 PL1099 SQUEEGEE SUPPORT 8 PL1017 PUMP 9 PL1244BC DRIVE UNIT AND BRAKE 10 PL1101BC SUCTION...
  • Page 54 CODE: pl1017 ac SN from 99E000 DESCRIPTION: PUMP PUMPE POMPE BOMBA POMPA REF. CODICE DESCRIPTION 1 E86611 Pump 1a SL02125-1 BODY 1b SL02125-2 ROTOR 1c SL02125-5 1d SL02125-4 SUPPORT 1e SL03402 GASKET 1f SL02125-9 HOLDER 1g E89420 Pump Filter 1h SL18333 UNION / CONNECTOR 1i SL02125-7 CATCH / LOCK...
  • Page 55 PALANCA BOQUILLA SOLLEVAMENTO SQUEEGEE REF. CODE DESCRIPTION 1 SL04149 SCREW 2 E86758 Washer 3 E86680 AS28 Bushing 4 E86673 Bracket AS24/28 5 E86672 Fork for AS24/28 6 E86671 Lift Rod for AS24/28 7 E86853 Nyloc Hex Nut, M8 Zinc 8 E86726...
  • Page 56 15 SL07400 PIN 16 E86875 Self-Locking Nut 20 E86881 Washer 21 E86679 AS24 Squeegee Mount 22 SL07472 BEARING 23 E86672 Fork for AS24/28 24 SL06100 KNOB (o HANDWHEEL) 25 SL05081 NUT 26 SL09798 ARM 27 SL07253 BEARING 28 E86688 AS28 Bracket...
  • Page 57 CODE: pl1101 ab SN from 98L001 DESCRIPTION: SUCTION UNIT SAUGGRUPPE GROUPE ASPIRATION GRUPO DE ASPIRACIÓN ASPIRAZIONE REF. CODE DESCRIPTION 1 E89183 Washer 2 E86703 Nut M8 3 SL04232 4 SL07309 5 E86726 Washer 6 SL19194 HOSE 7 SL09726 PLATE 8 E86449 AS20 Bushing for Vac Motor 9 E86612 Gasket for vacuum motor...
  • Page 58 CODE: pl1239 aa SN from 98L000 DESCRIPTION: HEAD:AXLE PULLEY KOPF TETE CABEZA TEST.:ASSE PULEGGIA REF. CODE DESCRIPTION 1 SL04023 SCREW 2 E86636 Nipple 3 E86468 AS20 Nut 4 E86725 Flange, WS20 5 E86726 Washer 6 E86853 Nyloc Hex Nut, M8 Zinc 7 SL07291 8 E86618 Upper Protection...
  • Page 59 Spacer 13 E89408 Stop Ring 14 E86666 AS28 Pin 15 E86667 Bearing, 6001 2RS 16 E86727 Neutral Pulley 17 E86665 AS28 Plate (Idler Bearing) 19 E87833 Screw WS20 20 E89220 Screw 21 E89183 Washer 22 E86879 Washer 23 E86555 spacer...
  • Page 60 TEST. 71:FLAP E CASSETTO REF. CODE DESCRIPTION 1 E86903 AS30/36 Screw M.4-16 2 E86730 Flap Fixer 3 E86677 AS28 Right Flap Splash Guard 4 E86904 AS30/36 Nut M.4-Zinc Blk w/Pts 5 E86735 6 E86769 Washer 7 E86768 Washer 8 E89418...
  • Page 61 CODE: pl1244BC ab SN from 98L10 DESCRIPTION: DRIVE AND BRAKE ANTRIEBS- UND BREMS TRACTION ET FREIN TRACCIÓN Y FRENO TRAZIONE-FRENO REF. CODE DESCRIPTION E86701 Nut M6 E86704 Washer D 6-18 E86490 AS20 Washer 3a SL06040 WASHER SL07236 BUSHING / BUSH SL09637 LEVER E86450...
  • Page 62 FRAME RAHMEN CADRE CHASÍS TELAIO REF. CODE DESCRIPTION 1 SL17287 PLATE 2 E86663 Battery Strap for AS28 3 SL09642 FRAME 4 SL09933 STEERING COLUMN 5 E89194 Screw 6 E86726 Washer 7 E86853 Nyloc Hex Nut, M8 Zinc 8 SL04222 SCREW...
  • Page 63 Washer 2 E86853 Nyloc Hex Nut, M8 Zinc 3 SL04075 SCREW 4 E86695 AS24/28 Pedal Selector Spring 5 E86326 Half Fork for AS28 6 E86327 Half Fork for AS28 7 SL13071 SPRING 8 SL20025 KNOB (or HANDWHEEL) 9 E86668 AS28 Screw...
  • Page 64 UNION / CONNECTOR 40 E86835 Floating Switch 41 SL19212 PIPE 42 E86751 Clamp 10-16 43 SL05059 44 SL23391 CABLE CLAMP 45 E86693 AS28/30/36 Pipe 46 E86692 AS28 Coupling Clutch 47 SL09617 FRAME 48 E86632 Membrane Bag 49 E86768 Washer 50 E86769 Washer...
  • Page 65 REF. CODE DESCRIPTION 1 SL17277 2 E86653 Complete Tank Cap 4 E86988 Operator D22 Mushroom complete 5 SL17272 TANK 6 E86675 AS28 Control Panel Support 7 SL09612 HANDGRIP 8 E86676 AS28 Panel Label 9 SL17274 BUMPER 10 SL17275 HOOD 11 SL25374...
  • Page 66 10 E86706 Screw TE M 6-16 11 E86707 Cham Washer D10 12 E86708 Screw TE M 6-35 13 E11410 SB175 Red Electrical 14 E86661 Cover for AS28 20 SL2386 WIRING 21 SL2386 BRIDGE / JUMPER 22 SL2301 BRIDGE / JUMPER...
  • Page 67 11 E86543 Fuse Cover for AS20 12 SL2320 FUSE TWEEZERS 13 E87876 Gasket 14 E86647 Fuse 40A 15 E89342 Fuse 30 Amp 16 E86825 Fuse 5 amp 20 E89468 Fuse Carrier 21 SL2378 FAIRLEAD 22 E86660 Control Board for AS28...
  • Page 68 12 E86707 Cham Washer D10 13 E86597 screw 14 E86823 Micro Switch 15 SL09616 PLATE 20 SL13061 SPRING 21 E89254 Control lever AS28 22 E86640 Control Battery Light 23 SL07224 BUSHING / BUSH 24 E86708 Screw TE M 6-35 25 SL23918 WIRING...
  • Page 69 CODE: pl1253 ae SN from 00E001 DESCRIPTION: SQUEEGEE SQUEEGEE SQUEEGEE SQUEEGEE SQUEEGEE REF. CODE DESCRIPTION E87796 Complete Squeegee AS24/28 1 E86853 Nyloc Hex Nut, M8 Zinc 2 E86878 Washer 3 SL20056 KNOB (o HANDWHEEL) 4 E86850 Knob 5 E86841 Squeegee Wheel Guide 9 E86325 AS 24/28"...
  • Page 70 CODE: pl1255 aa SN from 98L000 DESCRIPTION: BRUSHES ø340 BURSTEN ø340 BROSSES ø340 CEPILLOS ø340 SPAZZOLE ø340 REF. CODE DESCRIPTION 1 AL02703 POLYPROPYLENE BRUSH 2 AL02707 POLYSHING BRUSH 3 AL02704 TYNEX BRUSHES 4 AL02705 PAD DRIVER 5 AL03510 STRIPPING PAD(BLACK) 6 AL03511 STRIPPING PAD(GREEN) 7 AL03512...
  • Page 71 CODE: PL1271 aa SN from 98I000 DESCRIPTION: HOOD LIFTING HAUBEHEBE SOULEVEMENT COFFRE LEVANTAMIENTO CAPÓ SOLLEVAMENTO COFANO REF. CODE DESCRIPTION 1 SL04161 SCREW 2 E86427 Washer for AS20 3 E86552 4 SL14220 TIE ROD 5 E86367 clip WS20...
  • Page 72 CODE: WD27057 aa SN from 98L000 WIRING DIAGRAM SCHALTPLAN SCHEMA ELECTRIQUE ESQUEMA ELECTRICO SCHEMA ELETTRICO FUNZIONALE DESCRIPTION: O G 1m m ² BK 4 m m ² BN 4 m m ² BU 1m m ² BN 1 m m ² BN 1m m ²...

  • Page 73: Code Description

    CODE: WD27057-1 aa SN from 98L000 CODE DESCRIPTION -|<|- DIODE VACUUM MOTOR CONNECTOR BATTERY FILTERING CONDENSER FEMALE CONNECTOR TRACTION INTERFACE MALE CONNECTOR CN#F FEMALE CONNECTOR CN#M MALE CONNECTOR CPSD DETERG. SOL. POMP CARD TRACTION UNIT TRACTION MOTOR FUSE ASPIRATOR MOTOR FUSE UNIT AND PUMP FUSE FITTING FUSE MAIN FUSE...
