Summary of Contents for Cypress CHDMI-38C
- Page 1 3-in/8-out HDMI Switcher/ Distributor Operation Manual CHDMI-38C...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Features …………………………………………..……..…...…… Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Remote Control .......…..……………..…..…..…... Specifications ………………………………...……..………..…. CHDMI-38C RS-232 Remote Control Protocol ........ Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction

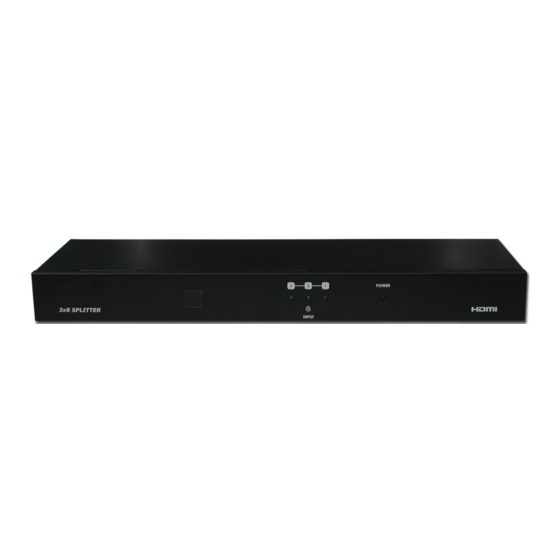

1. Introduction Cypress CHDMI-38C is a high performance 3-in 8-out HDMI Switcher with remote control. It allows you to connect up to 3 HDMI sources and 8 HDMI displays. The eight HDMI outputs are identical and each supports up to 1080p. -
Page 6: Operation Controls And Functions
DVD player or set-top-box. ③ HDMI outputs 1 to 8: Connect each of these output ports to the HDMI input of a HDMI display. ④ Power: Plug the 5V DC power supply into the CHDMI-38C and connect the adaptor to AC wall outlet. -
Page 7: Remote Control
Operating temperature range 0˚C ~ 40˚C Dimensions (mm) 436(W) x 116(D) x 44(H) Weight(g) 1600 6. CHDMI-38C RS-232 Remote Control Protocol * The connection between CHDMI-38C and remote controller with RS-232 modem cable. Pins definition of modem cable CHDMI-38C Remote Controller Definition Definition... -
Page 8: Connection And Installation
Command Code Comment W 01 01 PORT 1 ON W 01 02 PORT 2 ON W 01 03 PORT 3 ON 7. Connection and Installation DVI to HDMI HDMI HDMI Cable Cable Cable HDMI HDMI HDMI HDMI HDMI HDMI HDMI HDMI Cable Cable... -
Page 9: Acronyms
Acronyms Acronym Complete Term... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110114 MPM-CHDMI38C...
