Summary of Contents for Cypress CHDD-3C

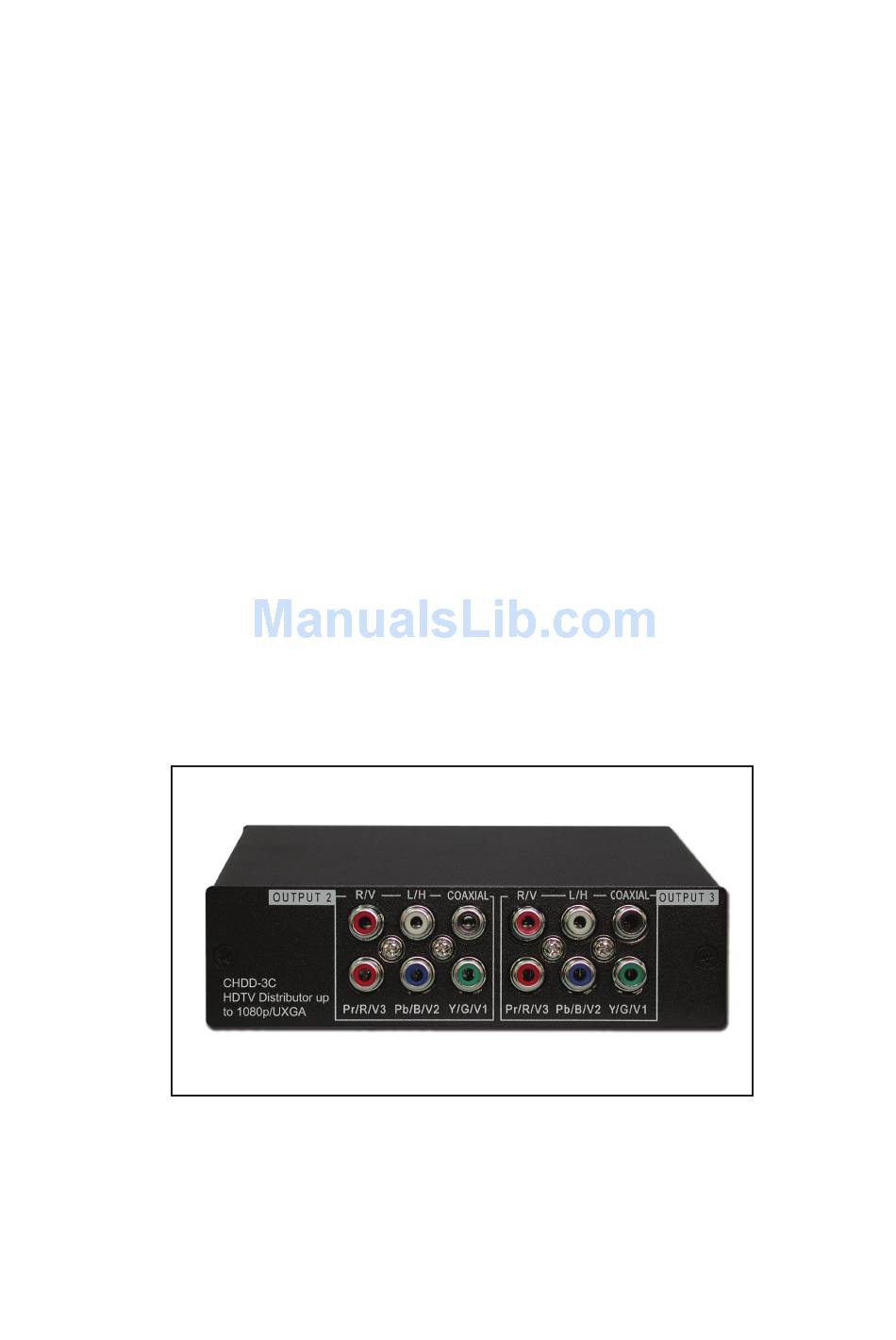

- Page 1 HDTV Distributor up to 1080p/UXGA CHDD-3C is a high performance and versatile distribution amplifier for delivering both HD and SD video with digital/analog audio to your multiple display units. Operation Manual...
- Page 2 Applications The CHDD-3C is capable of distributing video in 3 different formats and is ideal for use in any analog video entertainment distribution system. Features - Component / composite or RGB distribution amplifier. - Supports SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal.
-
Page 3: Connection And Installation
Connection and Installation 1. Works as a 1-in 3-out distribution amplifier for HD component source(YPbPr). COAXIAL COAXIAL COAXIAL COAXIAL OUTPUT 2 OUTPUT 3 OUTPUT 1 INPUT DC 5V 1A CHDD-3C HDTV Distributor up Pr/R/V3 Pb/B/V2 Y/G/V1 Pr/R/V3 Pb/B/V2 Y/G/V1 Pr/R/V3 Pb/B/V2 Y/G/V1... - Page 4 CYPRESS TECHNOLOGY CO., LTD. 2008.1.15 MPM-CHDD3C Home page: http://www.cypress.com.tw...
