Summary of Contents for Cypress CHMX-24

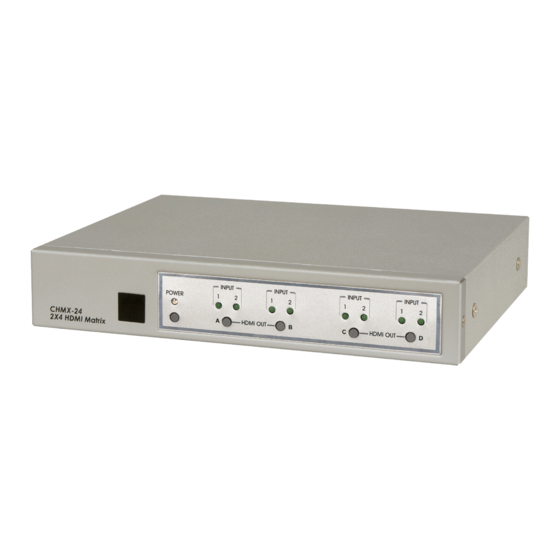

- Page 1 HDMI 2x4 Matrix Operation Manual CHMX-24...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction..................1 2. Features....................1 3. Package Contents................1 4. Operation Controls and Functions..........4.1 Front Panel.................. 4.2 Rear Panel.................. 2 4.3 Remote Control................3 4.4 RS-232 Protocol................3 4.4.1 Pin Definition................. 3 4.4.2 Commands................5. Specifications..................4 5.1 General Specification.............. -
Page 3: Package Contents
4 identical or 2 pairs of different sources at the same time. CHMX-24 provides a maximum of 8 possible connection scenarios between sources and displays. When HDMI signal progresses through CHMX-24, it is re-timed, level compensated, phase error corrected, and data jitter eliminated, so the output is a regenerated brand new HDMI signal that can run for another 25 meters and can be cascaded. -
Page 4: Front Panel
4. Operation Controls and Functions 4.1 Front Panel INPUT INPUT INPUT INPUT Power CHMX-24 HDMI OUT HDMI OUT 2X4 HD Matrix 1. Remote control sensor. 2. Power Switch & LED Indicator: The LED will illuminate when the power is turned on. -
Page 5: Remote Control
OUTPUT for HDMI OUT D. OUTPUT 6. Void buttons (No function.) OUTPUT OUTPUT CR-33 4.4 RS-232 Protocol 4.4.1 Pin Definition CHMX-24 Remote Control Console Definition Definition *RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None... -
Page 6: Commands
4.4.2 Commands COMMAND ACTION Power Off (standby) Power On * System Status * Firmware Version Output A select Input1 Output A select Input2 Output B select Input1 Output B select Input2 Output C select Input1 Output C select Input2 Output D select Input1 Output D select Input2 *:Command”P1”and”ST”response:P?A?C?D? 5. -
Page 7: Connection And Installation
Connection and Installation LCD TV LCD TV LCD TV LCD TV 2007.7.9 MPM-CHMX24... - Page 8 Cypress Matrix Series: Product Description CHMX-22 2x2 HDMI Matrix CHMX-24 2x4 HDMI Matrix CHMX-42 4x2 HDMI Matrix CHMX-44 4x4 HDMI Matrix CHMX-22AS 2x2 HDMI Matrix CCMX-42 4x2 Component Matrix w/audio CCMX-44 4x4 Component Matrix w/audio CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
