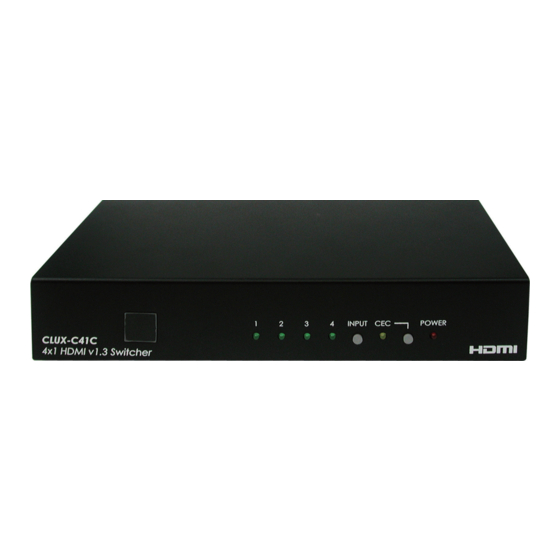

- Page 1 CLUX-C41C 4x1 HDMI v1.3 Switcher Operation Manual CLUX-C41C...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. Specifications................6. HDMI v1.3 Series................ -
Page 3: Introduction
1. Introduction This is a high performance HDMI switcher with 4 separate digital audio inputs and 1 output. It provides for various HDMI sources to share one HDTV display with CEC control fonctions. Simply press one button to select your desired HDMI source for display on the HDTV. -
Page 4: Features
3. Operation Controls and Functions 3.1 Front Panel INPUT CEC POWER CLUX-C41C 4x1 HDMI v1.3 Switcher Remote control sensor. Input select/Indicators: Press the “INPUT” button repeatedly to switch to your desired input source and the LED will illuminate to indicate which input source is selected. -
Page 5: Rear Panel
3.2 Rear Panel RS-232 INPUT DC 5V OUTPUT HDMI output: Connect the HDMI out of the unit to the HDMI input of your display using HDMI cable. HDMI Inputs: Connect each of the input ports to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. -
Page 6: Connection And Installation
4. Remote Control 1. Power: Press the button to turn on/off the unit. 2. Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. 5. Connection and Installation DVD 1 DVD 2 DVD 3 LCD TV 5. -
Page 7: Hdmi V1.3 Series
6. HDMI v1.3 Series: Product Description CLUX-11S 1x1 HDMI V1.3 Repeater CLUX-12S 1x2 HDMI V1.3 Splitter CLUX-14S 1x4 HDMI V1.3 Splitter CLUX-18S 1x8 HDMI V1.3 Splitter CLUX-21SY 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher CLUX-41AT...
