- Page 1 HDMI 4x2 Matrix Operation Manual CHMX-42...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 1 4.1 Front Panel................1 4.2 Rear Panel................2 4.3 Remote Control..............3 4.4 RS-232 Protocol..............3 4.4.1 Pin Definition..............3 4.4.2 Commands..............4 5. -
Page 3: Package Contents

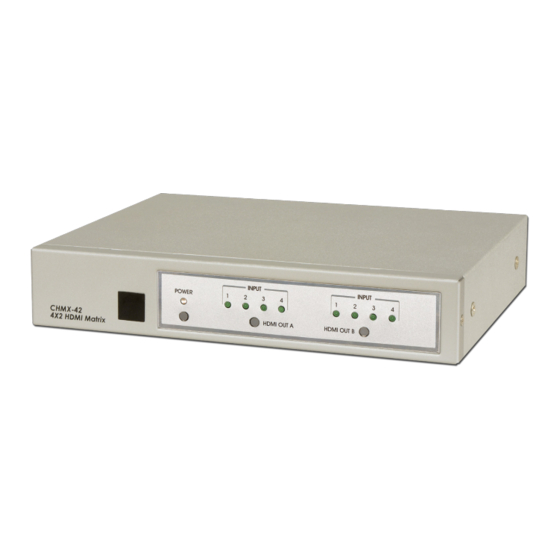

HDMI sources and displays to connect together. Each of the four HDMI sources can be directed to any one of the two outputs, so two displays can show 2 identical or 2 different sources at the same time. CHMX-42 provides a maximum of 8 possible connection scenarios between sources and displays. -
Page 4: Rear Panel
1. Remote control sensor. 2. Power Switch & LED Indicator: The LED will illuminate when the power is turned on. 3. Input Select/Indicators (A): Press the "HDMI OUT A" button repeatedly to switch to your desired source, and the LED will illuminate to indicate which input source is being selected, and routed to HDMI A display. -
Page 5: Remote Control
Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT B. 4. Void buttons (No function). CR-33 4.4 RS-232 Protocol 4.4.1 Pin Definition Remote Control Console CHMX-42 Definition Definition *RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits... -
Page 6: Specifications
4.4.2 Commands COMMAND ACTION Power Off (standby) Power On * System Status * Firmware Version Output A select Input1 Output A select Input2 Output A select Input3 Output A select Input4 Output B select Input1 Output B select Input2 Output B select Input3 Output B select Input4 *:Command”P1”and”ST”response:P?A?C?D? 5. -
Page 7: Connection And Installation
6. Connection and Installation Blu-ray LCD TV LCD TV... - Page 8 Cypress Matrix Series: Product Description CHMX-22 2x2 HDMI Matrix CHMX-24 2x4 HDMI Matrix CHMX-42 4x2 HDMI Matrix CHMX-44 4x4 HDMI Matrix CHMX-22AS 2x2 HDMI Matrix CCMX-42 4x2 Component Matrix w/audio CCMX-44 4x4 Component Matrix w/audio CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
