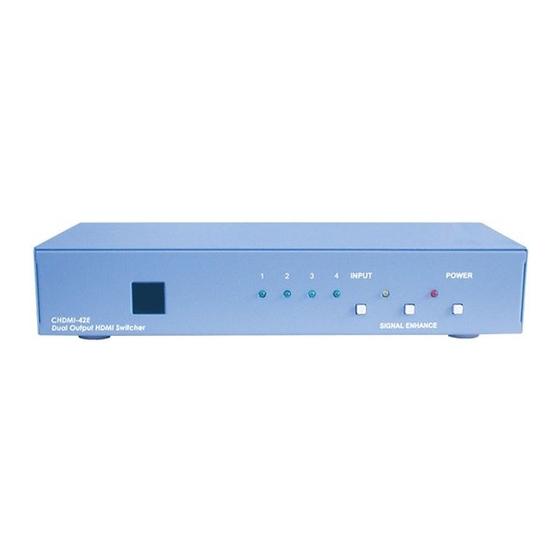

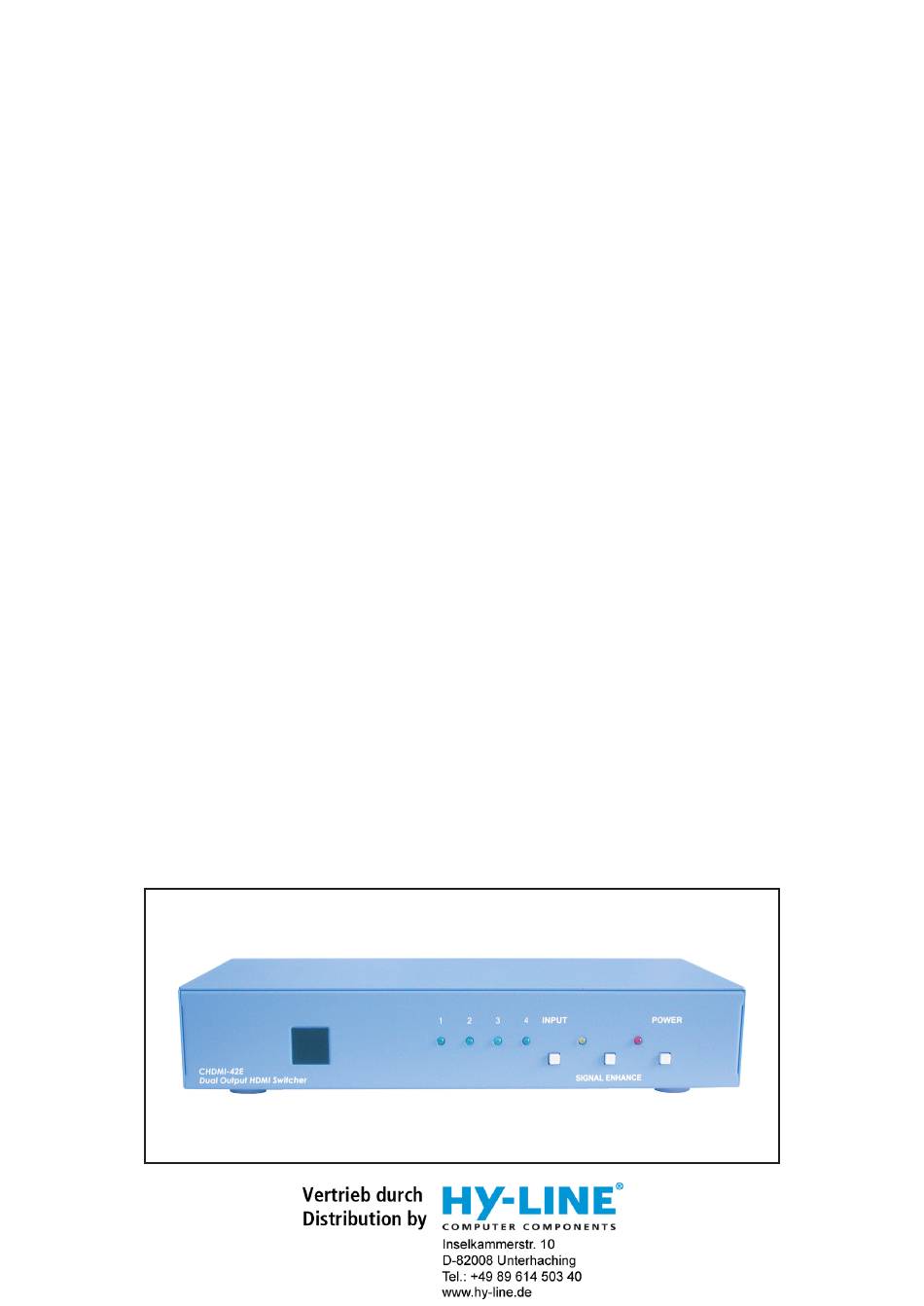

- Page 1 4-in 2-out HDMI Switcher Operation Manual CHDMI-42E...
-
Page 2: Operation Controls And Functions
Introduction CHDMI-42E is a high performance 4-input dual outputs HDMI switcher with remote control. It allows your to connect up to 4 HDMI Sources so they can share two HDMI displays. The two HDMI outputs are identical. Simply pressing one button you can select your desired HDMI source for display on two HDMI TVs simutaneously. -
Page 3: Rear Panel
3. Power: Plug the supplied 5VDC power supply into the unit. 4. RS232: 9-pin D-sub female connector for connecting to your other control console for remote control. RS-232 Remote Control Protocol The connection between CHDMI-42E and remote pc through RS-232 modem cable. * Command: Pins definition of Remote Controller... -
Page 4: Specifications
Specifications * Frequency Bandwidth: 1.65Gbps(single link) * Inputs: 4 x HDMI female ports (Type A connector) * Outputs: 2 x HDMI female port (Type A connector) * 5VDC universal power supply * Weight(g): 800 * Dimension(mm): 240(W) x104(L) x 48(H) Connection and Installation RS-232 DC 5V...
