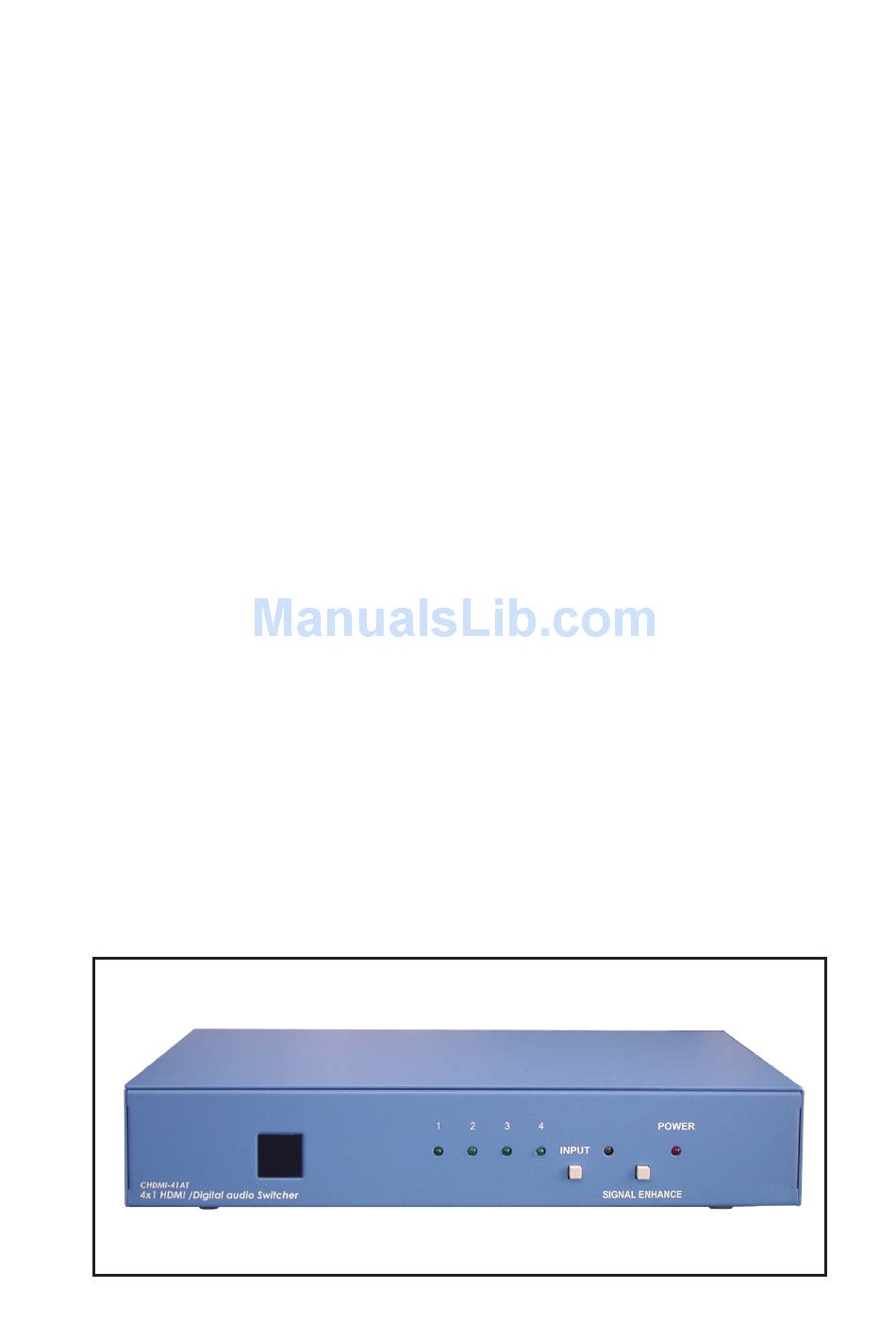

- Page 1 4-in 1-out HDMI /Digital Audio Switcher Operation Manual CHDMI-41AT...
-
Page 2: Operation Controls And Functions
Introduction CHDMI-41AT is a high performance HDMI switcher with separate digital audio input and output. It allows your various HDMI sources to share one HDTV display. Simply pressing one button to select your desired HDMI source for display on the HDTV. -
Page 3: Rear Panel
- Connects the digital SPDIF output to the digital coax input of the display using coax cable. 6. RS232: 9-pin D-sub female connector for connecting to your other control console for remote control. * The connection between CHDMI-41AT and remote controller through RS-232 modem cable. RS-232 Remote Control Protocol * Command:... -
Page 4: Remote Control
Remote Control 1. Power: Press the button to turn on/off the unit. 2. Direct input selector: Press numerical number button to select your desired input source. 3. Void buttons (No function). If the button number is greater than the total input number of the unit then the button is of no function.
