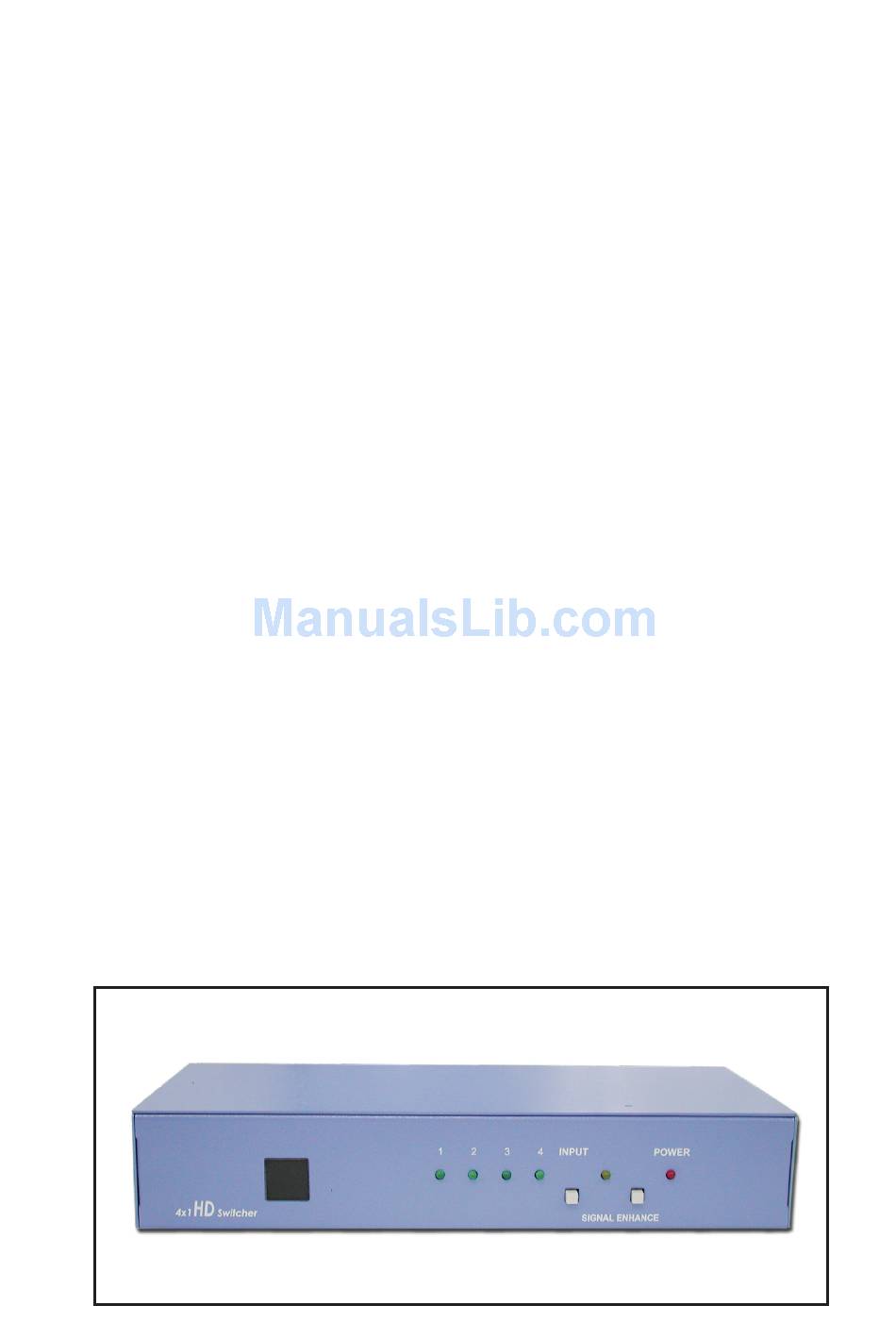

- Page 1 4-in 1-out HDMI Switcher Operation Manual CHDMI-41...
-
Page 2: Operation Controls And Functions

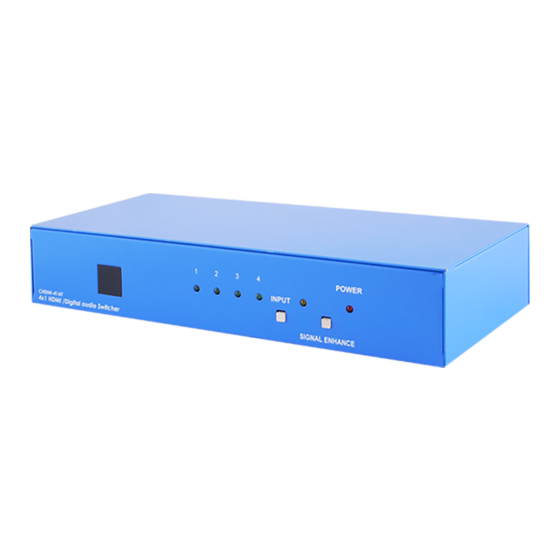

Introduction CHDMI-41 is a high performance HDMI switcher with remote control. It allows your various HDMI sources to share one HDTV display. Simply pressing one button to select your desired HDMI source for display on the HDTV. Features * HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant. -
Page 3: Remote Control
1. HDMI output: Connect the HDMI output to the HDMI input of your display using HDMI cable. 2. HDMI inputs: Connect your various HDMI sources to each of the HDMI input of the unit using HDMI cables. 3. Power: Plug the supplied 5VDC power supply into the unit. 4. -
Page 4: Connection And Installation
RS-232 command * The command is combined with a characters and digits. * This combination command code has to be separated by ASCII character SPACE * The command will be executed after ASCII character "CR" input * After ASCII character "CR" is entered, if the command is legal the unit will reply "OK" message * If the command is illegal, The unit will reply "NG"...
