Summary of Contents for Cypress CHDMI-61

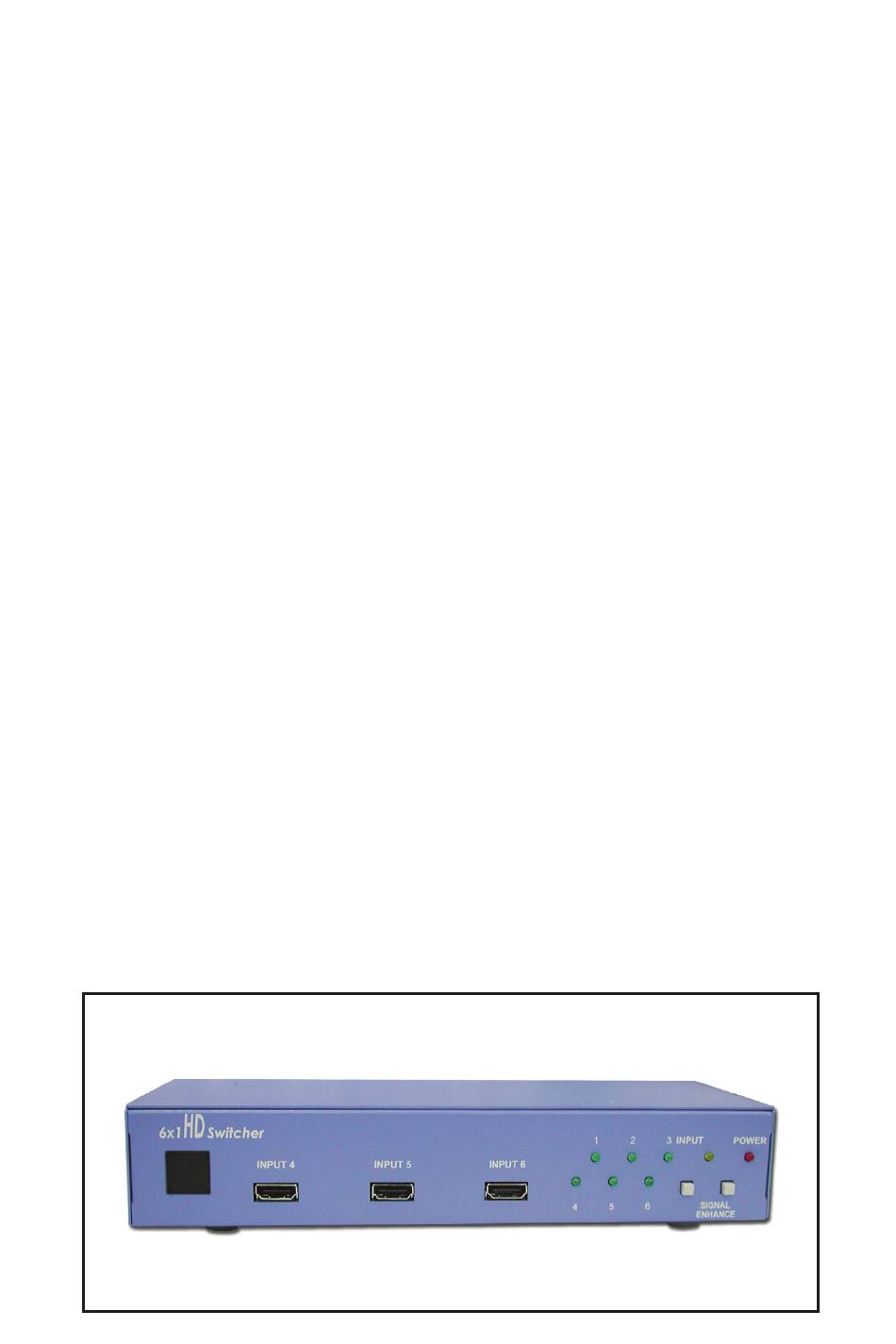

- Page 1 6-in 1-out HDMI Switcher Operation Manual CHDMI-61...

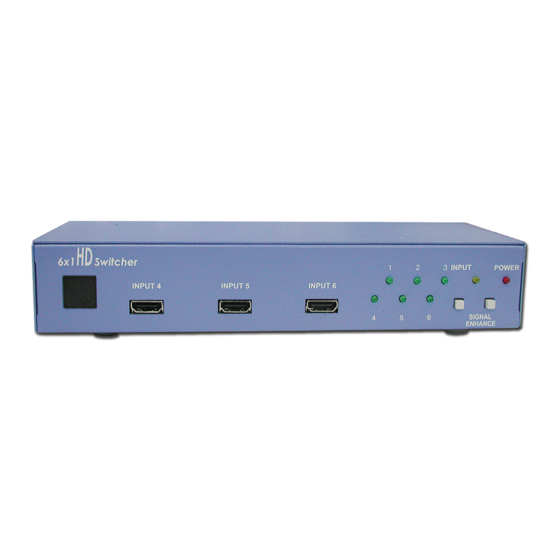

- Page 2 Introduction Cypress CHDMI-61 is a high performance HDMI switcher with remote control. It allows your various HDMI sources to share one HDTV display. Simply pressing one button to select your desired HDMI source for display on the HDTV. Features * HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
- Page 3 * 5VDC universal power supply * Weight: 0.85kgs * Dimension: 240(W) x104(L) x 44(H)mm CHDMI-61 RS-232 Remote Control Protocol RS-232 modem cable. * The connection between CHDMI-61 and remote controller with Pins definition of modem cable CHDMI-61 Remote Controller Definition...
- Page 4 * Command : * A command is combined with a word plus a digit * This combination commnad code has to be separated by ASCII character SPACE * The command will be executed after ASCII character "CR" input * After ASCII character "CR" is entered, The unit will reply "OK" if the command is legal * If the command is illegal, The unit will reply "NG"...
