Summary of Contents for Cypress CLUX-22HC
- Page 1 CLUX-22HC HDMI/CAT6 to HDMI/ CAT6 Splitter Switcher Operation Manual CLUX-22HC...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 4: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Operation Controls and Functions………………...……..……… Front Panel ................Rear Panel……………..…………………………..…….… RJ-45 Pin Definitions …….………………….......…..…..…... Connection and Installation............. 10. Acronyms ................... -
Page 6: Introduction
1. Introduction The HDMI/CAT6 to HDMI/CAT6 Splitter Switcher is the most advanced solution for HDMI and Video/DDC signal distribution. This CAT6 output port can be easily connected to an HDMI receivers CAT6 input port to allow a stable connection between an HDMI source and any compatible display. Each product in this series is compatible to HDMI V1.3, which defines and supports the transfer of Deep Color (10bit and 12bit) video and a new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master... -
Page 7: Features
5. Features HDMI 1.3, HDCP1.1 and DVI1.0 compliant. Deep color video up to 12bit, 1080p@(24/60)Hz. Simultaneously outputs one HDMI and one Video/DDC CAT6 source to one HDMI and one Video/DDC CAT6 output. HDCP keysets allows each output to work independently when ... -
Page 8: Specifications
6. Specifications Bandwidth Frequency 2.25Gbps (single link) Input Ports 1 x HDMI female port (Type A connector) 1 x CAT6 input Video/1 x CAT6 input DDC Output Ports 1 x CAT6 output Video/1 x CAT6 output DDC 1 x HDMI female ports (Type A connector) EDID STD / TV HDMI Audio Output... -
Page 9: Operation Controls And Functions

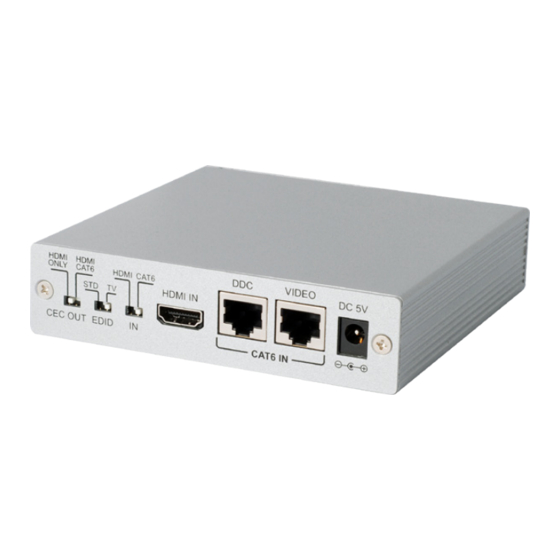

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.2 Front Panel HDMI/CAT6 input selection: Switch to select input sources from either ① HDMI or CAT6. EDID Control Switcher: The default factory setting is TV, do not switch if the ②... -
Page 10: Rear Panel
source equipment such as DVD player or set-top-box. CAT6 IN: These slots are for connecting the Video/DDC input to the ⑤ Video/DDC output of the transmitter unit with CAT6 cables. [Note]: 1. Cable tested with CAT-6E / 23AWG / was solid, so any cables with different specifications might result in a different distance. -
Page 11: Pin Definitions
8. RJ-45 Pin Definitions Video TX2+ DDC Bus Clock TX2- TX1+ DDC Bus Data TX0+ Power 5V TX0- TX1- IR IN TXC+ TXC-... -
Page 12: Connection And Installation
° °... -
Page 14: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 cable Digital Visual Interface EDID Extended Display Identification Data HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared LPCM Linear Pulse Code Modulation Standard SYNC Synchronize SXGA Super Extended Graphics Array Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091217 MPM-CLUX22HC...
