- Page 1 Instruction/Service Manual...
-
Page 2: Table Of Contents
8. Preventative Maintenance Program 9. Cleaning Your Buggy 10. Rear Wheel Axles 11. Upper & Lower Bag Straps 12. Correcting the Alignment of Your Buggy 13. MGI Service Schedule 14. Service Record INSTRUCTION MANUAL PAGE 1. Charging and care of the Battery 2. - Page 3 INSTRUCTION MANUAL CONTINUED PAGE 18. Knowing your modes 19. Remote Control features 20. Registering online 21. How to download a course map 22. The Navigation System-How it works 23. Straight Tracking 24. Understanding GPS 25. Checking for GPS Signal 26. Navigation 27.
-
Page 4: Foreword
5. Warranty Policy Navigator G800 is covered for a period of 24 months from date of the purchase, MGI or an authorised service centre or person will repair or replace free of charge any parts found to be defective in materials or workmanship under normal use provided that: 1. -
Page 5: Warranty Exclusions
To properly maintain the warranty of your MGI motorised buggy, it is essential that this work is carried out. If the work carried out by the authorised service centre is to replace parts that are part of the maintenance schedule, the owner will be charged for the parts and labour. -
Page 6: Rear Wheel Axles
10. Rear Wheel Axles [See Maintenance Schedule] The rear wheel stub axles need to be lubricated regularly. Remove the rear wheels by depressing the spring clip and at the same time pull off the wheel. Apply Petroleum Jelly or light grease to the stub axles. -
Page 7: Mgi Service Schedule
It is the owner’s responsibility to ensure that all periodical checks, necessary adjustments and services are carried out. If in doubt please contact the MGI service centre on 1300 644 523. Any work performed on your buggy should be recorded on your service record (see page 5) regardless of the work. -
Page 8: Service Record
The tools to tighten all nuts and bolts are provided with your maintenance / service and instruction manual. As part of MGI’s Preventative Maintenance Program, if the six monthly services are carried out by an authorised service centre, you will be charged for that service. -
Page 9: Charging And Care Of The Battery
• Charge and store the battery in a warm and dry environment The Li Charger can only be used to charge Li batteries from MGI • Do not open either the Li battery or Li charger. Doing so is dangerous and will void warranty •... -
Page 10: Fitting The Battery
LED Indicator -The Red LED illuminates to indicate the charger is power on. -The Yellow LED indicates the battery is charging. -The LED will turn Green when the battery is fully charged. -The LED will flash Green when the battery is on float charge. -The 24v lithium ion charger will power off automatically after being on float charge for 18 hours. -
Page 11: Fail Safe Connection
5. Fail Safe Connection Your buggy has been equipped with fail safe battery connection. Your buggy will only start if the speed control has first been switched off. 6. Attaching / Removing Wheels To attach the wheels, place the wheel on the axle. Push the release tag across and push the wheel on as far as it can. - Page 12 6. Slide sand bucket loop into the bracket on the left side of the buggy. Use the screw to secure the sand bucket loop [Diagram 4] MOST IMPORTANT: DEPRESS THE SEAT WITH YOUR HAND BEFORE SITTING. DO NOT USE THE SEAT ON UNEVEN SURFACES. *MGI does not warrant any seat support brackets that are damaged or bent.
-
Page 13: Fitting Your Golf Bag
11. Fitting your Golf Bag Securing the top bag strap 1. Provide a good position for the positioning of both ends of the elasticised straps 2. Stretch the longer end of the strap and secure to the extended shorter end 3. -
Page 14: Guide To Using Your Remote Control

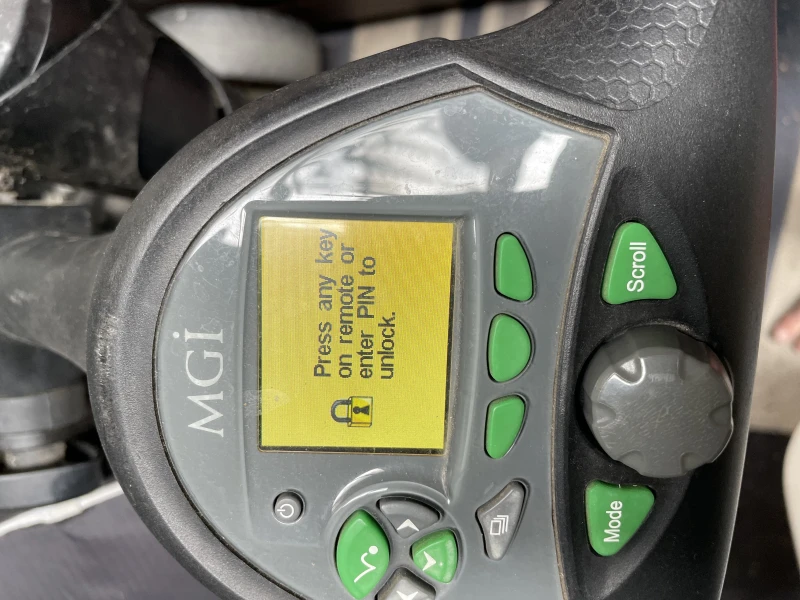

13. Guide to using your Top Box Left soft key Right soft key Centre soft key On/off key Left, right & down keys Left, right & down keys Speed control dial, stop/go Menu key Remote dock Sureshot/Buggy Mode toggle 14. Guide to using your Remote Control Forward/Increase speed Nav Off [red light]... -
Page 15: Change Your Pin
15. Top Box control features On/Off- Press the on/off button to turn the buggy on and off Speed Control- Turn the speed control clockwise to set the desired speed [S1 to S9-the higher the number the higher the speed] and press the speed control to start the buggy. To accelerate speed, turn the speed control clockwise. -
Page 16: Knowing Your Modes
Servicing schedule reminders in kilometres (every 500 km) 19. Remote Control features Charging your remote control - Before you start using your Navigator G800 buggy you must fully charge the remote control internal lithium ion battery for approximately 6 hours or overnight with the AC charger. -
Page 17: Registering Online
Soft Braking - The Navigator G800 is equipped with electronic soft braking. This means when you press the stop button the buggy will roll to a stop. The range of the Navigator G800 is up to 80 metres. It also has a heart beat interaction between the transmitter and receiver. This means they stay in contact with each other at all times. -
Page 18: The Navigation System-How It Works
23. Straight Tracking Your Navigator G800 is a highly sophisticated and patented electronic gyroscope as the straight tracking system to steer the buggy when under remote control. The gyroscope is tilt compensated to enable true sterring over a wide range of grades you expect to encounter on the average golf course. -
Page 19: Checking For Gps Signal
Go to Sureshot Homepage > Features > Status > Reset Unit This enables you to reset your Navigator G800 to the factory settings. It will delete all loaded courses, saved games and reset features to their default values. It does not reset the registration details. -
Page 20: Buggy Mode
(unit must be registered). See how to download courses under How to download a course map. • Ensure that your Navigator G800 has been turned on for at least five minutes with clear access to the sky before you begin playing your game of golf. •... - Page 21 • If scoring is enabled, on the Hazard Screen press the Fairway soft key to set fairway hit. Press the Green soft key to set greens in regulation. • If there are no hazards mapped for a hole and scoring is enabled, the View soft key is used only for the scoring options.
-
Page 22: Understanding The Icons
34. Understanding the Icons The greens, hazards and distances are all represented in easy to read icons: 35. Scoring This feature is switched On or Off from the: Sureshot Homepage > Features > Setup > Scoring To begin scoring first select the hole you are hitting off from. If hitting from the 5th hole press the left arrow key until Hole 5 is displayed then follow the following steps: If scoring is switched Off the Fairway, Green, Putts and Sand soft keys are not displayed. -
Page 23: Mapping A Course
There is no need to map tee off areas as your Navigator G800 will always tell you how far you [the Tracker G600] are to those hazards and greens that you have mapped: •... -
Page 24: Demo
40 courses at any one time. 39. Editing a course You can edit a course that is on your Navigator G800. You may like to add a layup point or a reference point, or add a hazard that was not included in the original mapping. -
Page 25: Deleting A Game
Question: Is it important to register my purchase for warranty purposes? Answer: You must register your purchase as soon as possible with MGI. You can register on line www.mgi-golf.com. The serial number for your buggy is located underneath the top handle scorecard compartment. -
Page 26: Further Information
In the Melbourne, Sydney and Queensland metro areas, there are mobile service vans that attend most golf courses and retailers. MGI invests large amounts of capital into advancing the mechanical and electronic features of its range of buggies. Should you have any feedback or suggestion, which would further enhance the performance of our buggies, we would welcome your correspondence.
