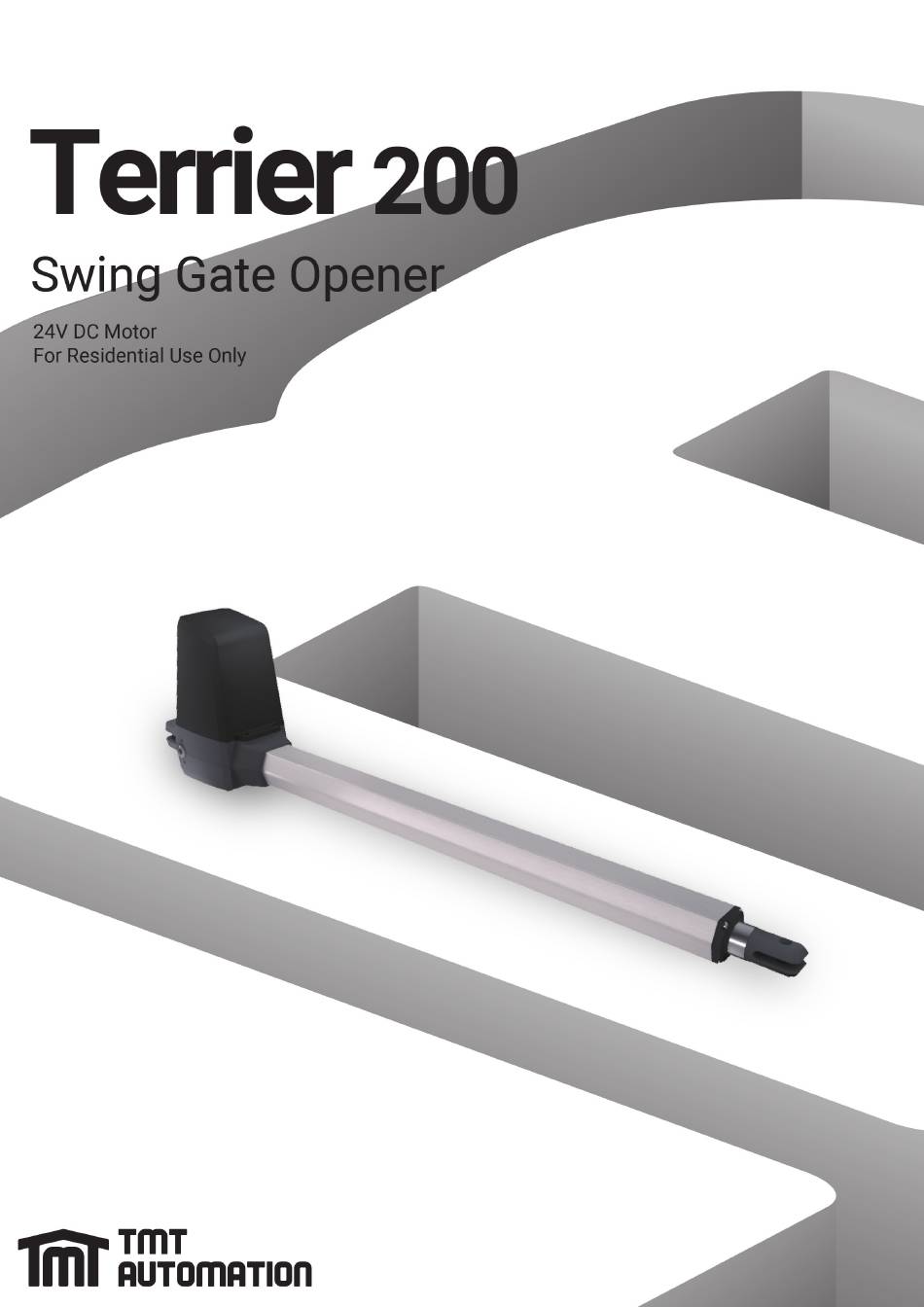

TMT Automation Terrier 200 Manual

Swing gate opener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terrier 200 and is the answer not in the manual?

Questions and answers

Related Manuals for TMT Automation Terrier 200

Summary of Contents for TMT Automation Terrier 200

  • Page 2 UL Classification 1. Class I - Residential Vehicular Gate Operator A vehicular gate operator (or system) intended for use in a home of one to four single family dwellings, or garage or parking area associated therewith. 2. Class II - Commercial/General Access Vehicular Gate Operator A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units, hotel, garages, retail store or other building servicing the general public.

  • Page 3: Table Of Contents

    Contents Safety Overview III. Stall Force Dial I. Before Installation IV. Autoclose Dial II. During Installation Accessories III. After Installation Pairing Remotes Warranty Information I. Using Factory Remotes Technical Specifications II. Unpairing Remotes List of Parts III. Connecting with Other Controllers Tools Needed IV.

  • Page 4: Safety Overview

    Safety Overview ------Important Instructions-------- Thank you for choosing TMT Automation® Automatic Gate Opener System, a leader and innovator in the field of gate automation systems. This manual will guide you through the steps of installation and maintenance. PLEASE READ AND FOLLOW THE STEPS CAREFULLY TO REDUCE the risks of injury or death.

  • Page 5: Before Installation

    I. Before Installation The terms gate opener and gate operator will be used interchangeably. 1. Please make sure your gate is in proper working condition: a. The gates should be level, firm and able to swing freely in both directions. b.

  • Page 6: During Installation

    II. During Installation 1. Be aware of moving parts. Moving parts could pinch hands and fingers. 2. The gates should not open into public access areas to prevent unwanted collisions and injuries. 3. Do not install the gate opener in an area that the public has access to; the gate openers can be tampered with and cause security and other dangers.

  • Page 7: Warranty Information

    Product registration is required, or warranty is in effect starting from the date of purchase. TMT Automation will, at its discretion, provide replacements for any defective parts within the terms of the warranty, free of any charge.

  • Page 8: Tools Needed

    Post bracket Expansion bolt Rubber plug Washer M8-180mm hex bolt Single Motor 2 pcs / Single Motor 4 pcs / Single Motor 1 pcs / Single Motor 4 pcs / Single Motor 4 pcs / Dual Motor 4 pcs Dual Motor 8 pcs Dual Motor 2 pcs Dual Motor 8 pcs Dual Motor 8 pcs...

  • Page 9: Installation

    Installation I. Preparing the Gate Prior to installing the automatic gate operator, make sure of the following: Center Mount 1. The gate should swing freely, smoothly and leveled. 2. The gate should be able to hang without support from wheels. It is recommended that gates weighing above 250 lbs.
  • Page 10 7. Find a suitable location to mount the control box and battery box. The control box and battery box should be in range of both gate operators. They should also be at least a foot above the ground to avoid splash and moisture damage. 8.

  • Page 11: Pull To Open Installation

    II. Pull to Open Installation 1. Mark out the positions for the gate opener. Make sure that the mounting spots on the post and the gate are leveled to the ground. You may want to use a Sharpie or tape to mark your positions.
  • Page 12 4. Use the clamps to notch the mounting brackets to the post. The center of the mounting bracket should align with the center line as labelled in the diagram in Step 1. Mark the positions where the mounting brackets should latch on to the post. 5.
  • Page 13 7. After you have set the angle, insert the bolt and washer to set the angle of the mounting bracket. 8. Once the positions of the mounting brackets are measured and checked, you can now drill holes to fasten the brackets. You may want to keep the clamps to hold the post mounting brackets in place, and slowly drill one hole at a time.
  • Page 14 • Wiring Instruction Of Accessories Photocell • Photocell 1 • Photocell 2 Loop sensor For single gate opener setups, use the SKey for dual opener setups, use the DKey. Note: Please make sure the function of DKey/SKey has been adjusted to Open only by Chow! App.

  • Page 15: Push To Open Installation

    III. PUSH to OPEN Installation 1. To have a push to open gate, make sure that you will not be at risk of colliding into pedestrians or oncoming traffic. 2. Mark out the positions for the gate opener. Make sure that the mounting spots on the post and the gate are leveled to the ground.
  • Page 16 5. Use the clamps to notch the mounting brackets to the post. The center of the mounting bracket should align with the center line as labelled in the diagram in Step 2. Mark the positions where the mounting brackets should latch on to the post. 6.

  • Page 17: Stopper Installation

    IV. Stopper Installation • Push to open Stopper • Pull to open Stopper 1. Please install the stopper to determine the close position. 2. Please intsall the stopper at the center of the close position. 3. Please use the installation kit of the stopper to fasten the stopper on the ground. 4.

  • Page 18: Control Box Installation

    V. Control Box Installation 1. After determining the position of the control box, you may want to use the clamps to mark up the position of the holes and help you secure the box. Note that the control box should be at least one foot from the ground and within five feet of at least one of the gate operators.

  • Page 19: Connecting Batteries As Power Supply

    • Motor 1 • Motor 2 VII. Connecting Batteries as Power Supply NOTE: This system requires batteries to be connected to work. 1. The system should be powered by two 12V batteries connected in series. Make sure the batteries are connected appropriately to provide 24V.

  • Page 20: Connecting The Control Box To An Ac Adapter

    VIII. Connecting the Control Box to an AC Adapte 1. Make sure the power switch for the control board is in the OFF position. DO NOT connect the AC adapter to a power source until you have finished wiring the adapter to the control board. The AC Adapter unit consists of an AC transformer block, an adapter wire to the control board and an adapter wire to the outlet.
  • Page 21 3. The mounting brackets are equipped with a notch that can fit into the holes on the curved pipe, as seen below. If you want to change the orientation of the panels, drill a hole through the mounting brackets and pipe and secure with a screw. Make sure the power switch for the control board is in the OFF position before attempting to connect the solar panels.

  • Page 22: Control Board Setup

    Control Board Setup Before attempting to set up the control board, always make sure that the power switch is turned OFF. Below is a diagram of the control board. I. PUSH/PULL SWITCH The PUSH/PULL DIAL controls the direction in which the gates open. If you have set your gates to being PUSH-to-OPEN, set the dial to the OFF position;...

  • Page 23: Autoclose Dial

    NOTE: When the TIMER is set to MAX, the AUTOCLOSE TIMER is set to 300 seconds. Accessories A selection of accessories is available on our Amazon store, including solar kits, photocells, keypads and more. Check out TMT Automation on Amazon!

  • Page 24: Pairing Remotes

    Pairing Remotes Remotes must be first paired to initiate system learning. The remotes come with a power button, make sure that the remote is switched ON. I. Using Factory Remotes To pair the factory remotes that comes with the kit, follow the instructions below: 1.

  • Page 25: Connecting With Other Controllers

    III. Connecting with Other Controllers Our control board uses a 433 MHz RF receiver. It offers limited compatibility with other remotes that use 433 MHz bandwidth. Our system uses a rolling code to prevent unauthorized users from copying the code and using relay attacks to maximize security.

  • Page 26: System Reset Via Remote

    VI. System Reset Via Remote The remote is capable of resetting the system. To do this, you can hold Button 3 and Button 4 simultaneously for 10 seconds. When the system is restored to the factory setting, the POWER LED will flash for 5 seconds before returning into the blinking state to indicate that system learning has yet to be completed.
  • Page 27 2. How do I check if the power is connected properly? a. To check if solar power is properly connected, you can disconnect the AC adapter and see if the POWER LED lights up. If it is on, then the panel is properly connected, if it is off, then there might be a problem with the way that the components or that there is not enough sunlight for the solar panel to function.

  • Page 28: Manual Operation

    Manual Operation In the case of an emergency, the operator can be manually operated. Please keep the allen key that came with the operator, for it is essential in disengaging the operator. I. To Disengage Motor Gear 1. Use the allen key to insert and release untill the motor gear is disengaged. You should feel the clutch released and the entire operator should be able to move freely.

  • Page 29: Appendix

    Appendix...

  • Page 30: Parameter Table

    Parameter Table Below parameters can only be adjusted with Chow! App. Please turn on the APP Override Switch to activate the Chow! App function. Setting Function Parameters Description F1-1 Overcurrent (Default setting) F1-2 Limit Switch Motor Type F1-3 Hall Sensor F2-1 0.5A F2-2...
  • Page 31 F8-0 Function off F8-1 2(Default setting) F8-2 F8-3 F8-4 Time gap b/w two gates F8-5 (Opening) F8-6 F8-7 F8-8 F8-9 F9-0 Function off F9-1 2(Default setting) F9-2 F9-3 F9-4 Time gap b/w two gates (Closing) F9-5 F9-6 F9-7 F9-8 F9-9 F10-0 Function off(Default setting) F10-1...
  • Page 32 99.5% travel overcurrent reverse , the last 0.5% travel overcurrent F12-1 stop, reverse speed is the parameter set by deceleration speed 95% travel overcurrent reverse , the last 5% travel overcurrent stop, F12-2 reverse speed is the parameter set by deceleration speed 90% travel overcurrent reverse , the last 10% travel overcurrent stop, F12-3...
  • Page 33 F15-0 0 (Default setting) F15-1 Overcurrent F15-2 sensitivity F15-3 F15-4 F15-5 F16-0 Function OFF O p e n / S t o p / C l o s e / S t o p F16-1 (Default setting) F16-2 Open/Stop/Close A Button F16-3 Pedestrian Mode F16-4...

  • Page 34: Safety Device Logic

    Safety Device Logic • FB PH1 Functions Parameters Function Gate status Reaction FB-0 PH1 Function off No function No function (Default setting) Gate fully close Not allow to open Gate fully open Not allow to close FB-1 Photocell -Close Stop during cycle Not allow to open/close Closing phase Open...
  • Page 35 Setting Function Parameters Description FD-0 No function Pedestrian Mode FD-1 On (Default setting) Stander gate opening FE-0 (Default setting) Release gate tension before Latch release mode FE-1 opening(Gate reversing for 0.25s) FF-1 Single gate Dual / Single gate FF-2 Dual gate (Default setting) FG-0 Function OFF (Default setting) FG-1...
  • Page 36 SE Terminal Function OFF FK-0 (Default setting) When gates closing , it will FK-1 stop when SE terminal is triggered. When gates closing , it will SE Terminal Function FK-2 reverse for 2 sec when SE terminal is triggered. When gates closing , it will reverse to fully open FK-3 position when SE terminal is...

  • Page 37: Smartphone Control With Chow! Mobile Application

    Smartphone Control With CHOW! Mobile Application WARNING : Please read this manual carefully before installation. TMT Automation is not responsible for improper installation and failure to comply with local electrical and building regulations. Please keep all the components of the Wifi box and this manual for further consultation.
  • Page 38 4. The system will send a link to your email when the registration succeeded. 5. Please go to your email, and click the link to activate your Chow! account. 6. Please log in your Chow! account. • Connect the Wifi/Bluetooth Module to the Chow! App 1.

  • Page 39: Operation

    III. Operation 1. Tap the device on your main page. 2. Tap the Open/Stop/Close to control gate opener. 3. Tap the Bluetooth icon to switch to Bluetooth control mode **Please turn ON the Bluetooth function of your smartphone** Note: Only one user can access the Bluetooth control mode. Once the first user leaves this operation page, the second user can access this device.

  • Page 40: Push Notification

    V. Push Notification Press the icon on the corner to enter the account management page. Tap the push notification setting. Turn ON the switches of the notification. **Please go to the settings page of your smartphone, find TMT Chow! and allow the notification.**...
  • Page 41 VI. FAQ The Blue LED is NOT Blinking when pairing. Please check the indicator light status first. If the blue light does not blinking after connecting to the power source, kindly contact customer support. Blue and Green LED blinks alternatively when Connecting to Chow by the first user.
  • Page 42 Return to the factory setting. Return to the factory setting is used when you lose your PIN code for sharing the device. After return to the factory setting, please follow the previous indications to reconnect the Chow. 1. Tap the device icon on the main page for 3 seconds and delete the device.

  • Page 43: Fcc Warning

    VII. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 44 34100P-157-16-B...
