5. ADDITIONAL INFORMATINO:

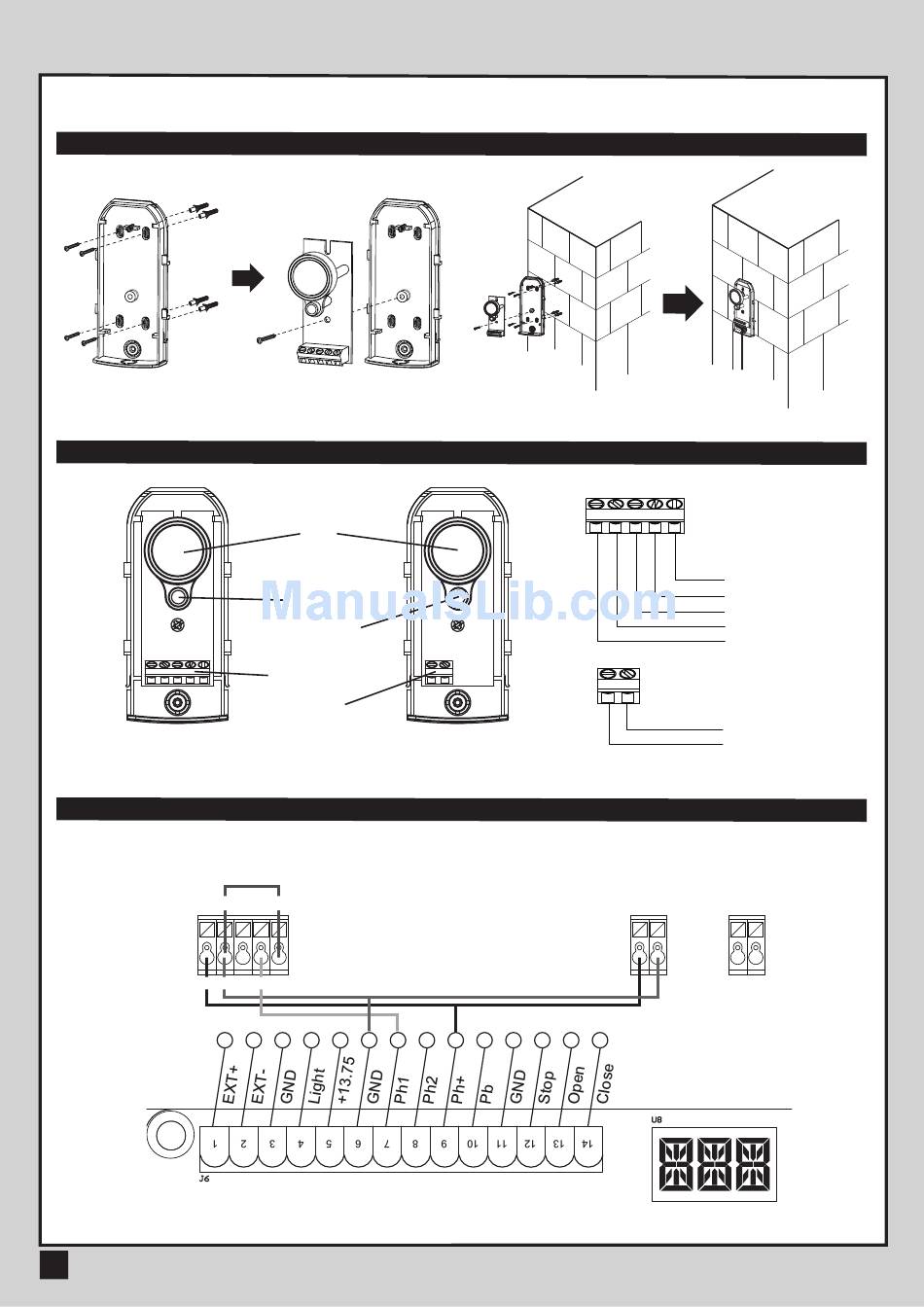

5.1 WIRE CONNECTION OF H2 PHOTOCELL (SAFETY BEAM)

1 2 3 4 5
RX
CLOSE LOOP
1 2 3 4 5
DC (12-24V) GND
12
Lens
Beam Alignmnet
Indicator
Power Led
Indicator
Terminal Block
Power
Terminal Block
NO NC COM
1 2 3 4 5 6 7
Figure 5(1)
Figure 5(2)
1 2
TX
Figure 5(3)
8 9 10 11 12 13
BOXER SERIES SLIDING GATE OPENER USER MANUAL
RX
1 2 3 4 5
COM
N.C.
N.O.
GND
DC (12~24V)
TX
1 2
GND
DC (12~24V)
1 2 3 4
