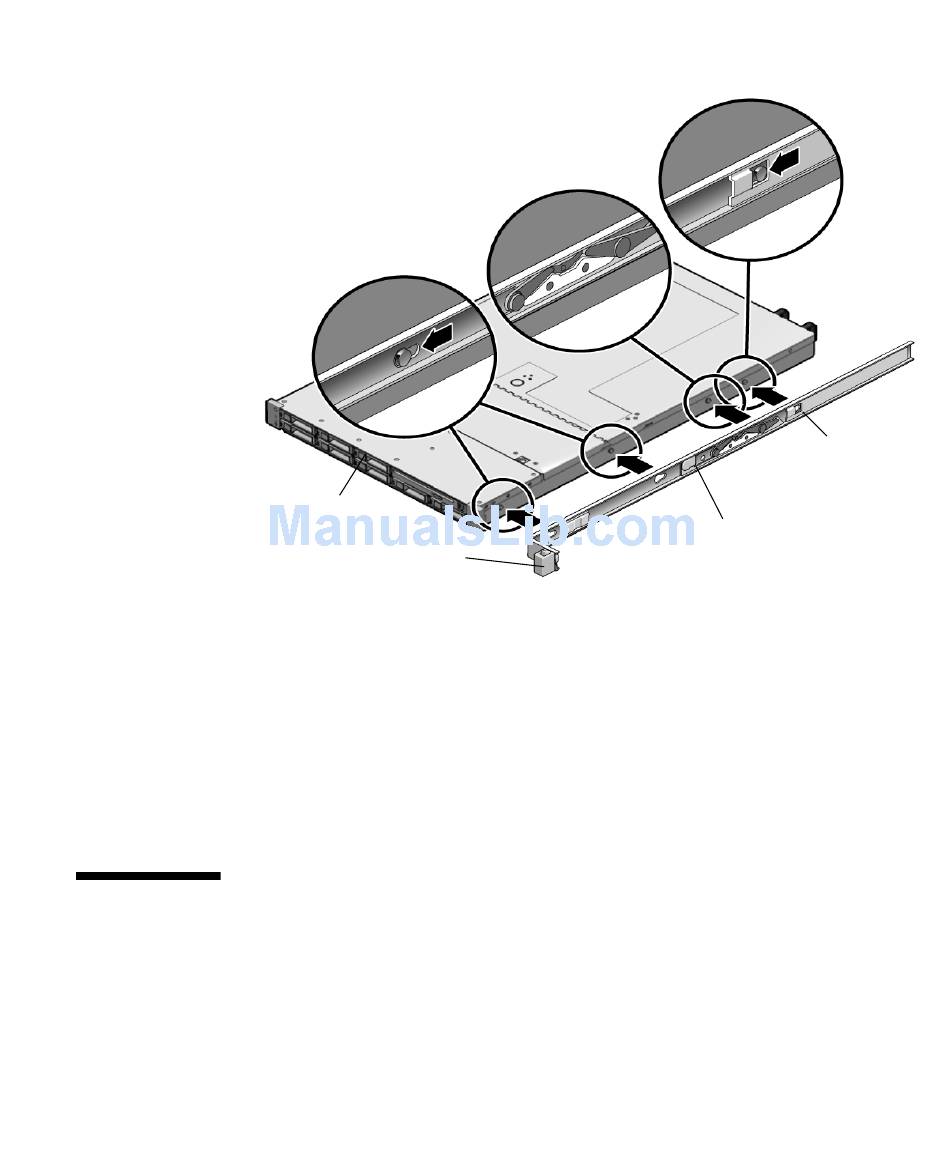

Aligning the Mounting Bracket With the Server Chassis
FIGURE 2-3
Chassis front
Slide-rail lock
2. With the heads of the four chassis locating pins protruding though the four
keyed openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click. (See
3. Verify that the rear locating pin has engaged the mounting bracket clip. (See
.)
FIGURE 2-3
4. Repeat to install the remaining mounting bracket on the other side of the
server.
Attaching the Slide-Rail Assemblies to
the Rack
Do one of the following procedures to attach the slide-rail assemblies to the rack:
"Disassembling Bolt-On Slide-Rails" on page 12
■
"Disassembling Tool-less Slide-Rails" on page 13
■
Chapter 2 Installing the Sun Fire X4150 Server Into a Rack with Slide-Rails
.)
FIGURE 2-3
Mounting
bracket clip
Mounting bracket
15
