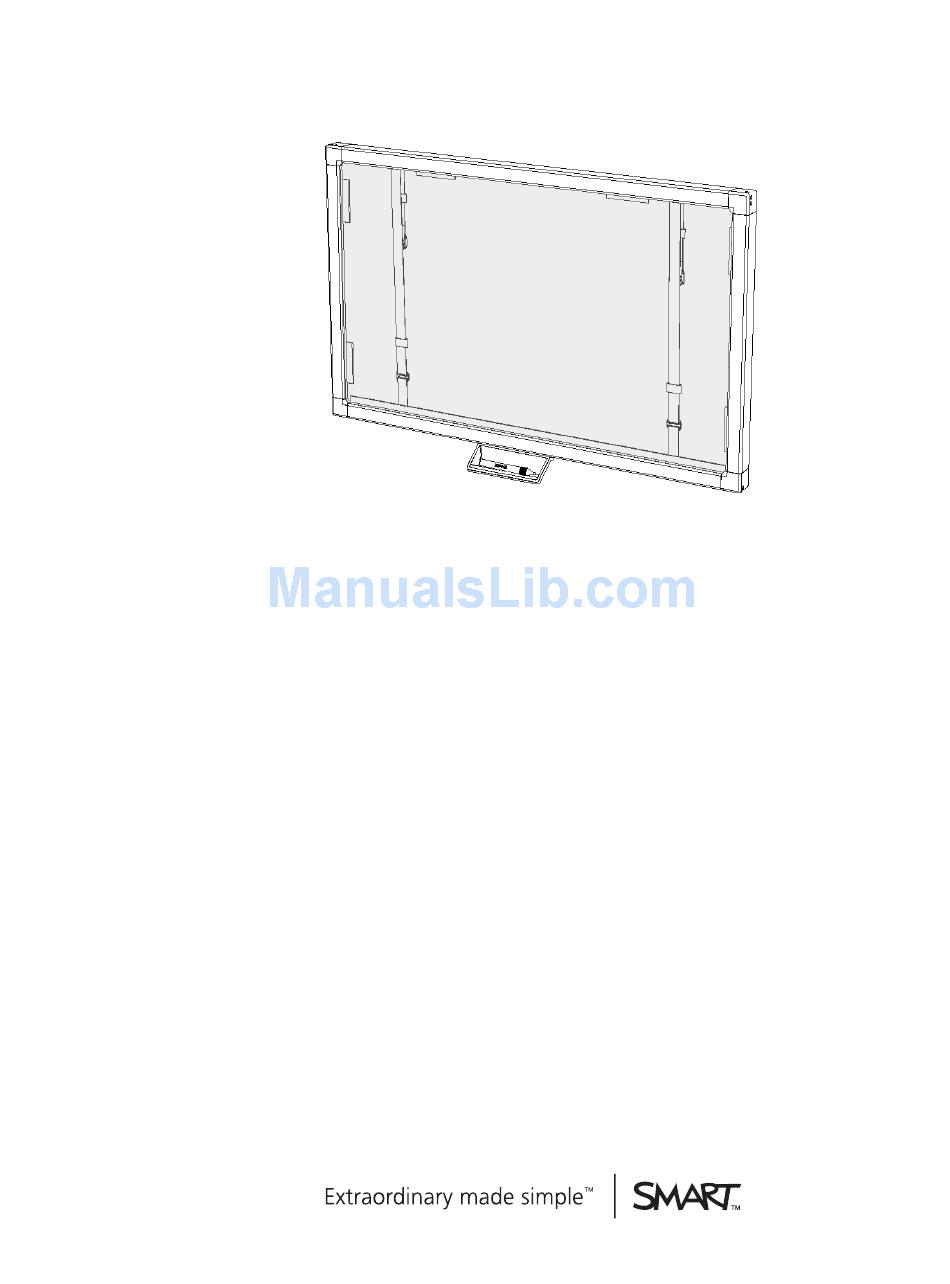

- Page 1 SMART Board® 400 series interactive display overlay User’s guide...
-
Page 2: Product Registration
© 2011 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.One or more of the following patents: US6320597;... - Page 3 CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid damage to the interactive display overlay which may not be covered by your warranty. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture.
-
Page 5: Table Of Contents
Contents Important information for your interactive display overlay Chapter 1: About your interactive display overlay Your SMART Board 400 series interactive display overlay Features of your interactive display overlay Accessories and replacement parts Chapter 2: Setting up your interactive display overlay... -
Page 7: Chapter 1: About Your Interactive Display Overlay

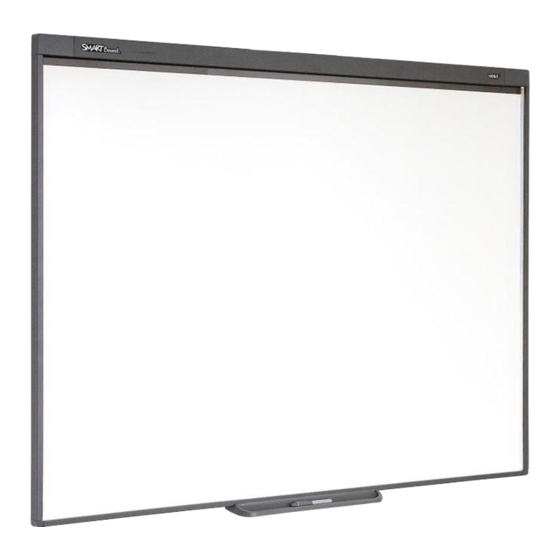

When you mount your SMART Board® 400 series interactive display overlay on a compatible flat- panel display and connect it to a computer with SMART software, you have touch control of your computer’s desktop from your interactive display overlay screen and can write and erase digital ink. -
Page 8: Your Smart Board 400 Series Interactive Display Overlay
Software To use all of the features of your interactive display overlay described in this guide, ensure that you have the latest version of SMART software and SMART Product Drivers installed on your computer. Touch Perform mouse functions with your finger, write in digital ink with the pen included and erase digital ink. -
Page 9: Accessories And Replacement Parts
Cat 5 USB extender. You require a powered hub to use a Cat 5 USB extender with the interactive display overlay. RPENLEDGE-SBID4 Replacement pen ledge for the SMART Board 400 series interactive display overlay. RPEN-SBID4 Replacement pen and nibs for the SMART Board 400 series interactive display overlay. GW-MP SMART GoWire™ auto-launch cable for business. -
Page 11: Chapter 2: Setting Up Your Interactive Display Overlay
Refer to the relevant local building codes and regulations. Two people are required to mount your SMART product because it may be too heavy for one person to safely manoeuvre. I M P O R T A N T For more information, see the SMART Board 400 series interactive display overlay textless installation guide (smarttech.com/kb/160507). - Page 12 I M P O R T A N T For a complete list of compatible flat-panel displays and the spacers they require for a secure fit, see the SMART Board 400 series interactive display overlay flat-panel display fit list (smarttech.com/kb/160508).
-
Page 13: Connecting Your Interactive Display Overlay To Your Computer
C H A P T E R 2 Setting up your interactive display overlay 6. If the flat-panel display was wall-mounted, return the flat-panel display and interactive display overlay to the wall mount. Connecting your interactive display overlay to your computer Connect the included 3m (9' 10") USB cable from your computer to your interactive display overlay to provide power to your interactive display overlay and enable touch control of your computer’s desktop. - Page 14 C H A P T E R 2 Setting up your interactive display overlay Extending your connection with a CAT5 to USB extenderconnection If your computer will be further than 5m (16' 5") from your interactive display overlay, you can use a CAT5 to USB extender and a powered hub to connect them.
-
Page 15: Chapter 3: Installing Smart Software
Installing SMART Meeting Pro software Connecting a SMART GoWire cable Installing SMART Notebook software You must install SMART software on the computer connected to your interactive display overlay to use all the features of your interactive display overlay. Identifying your SMART software package The SMART software that you’re entitled to depends on which model of interactive display overlay you purchased. -
Page 16: Installing Smart Meeting Pro Software
SMART Meeting Pro software without installing the software on your computer. A SMART GoWire cable is included in all SBID-4XX-MP series models. It is not included in SBID- 4XX series models. You must connect your computer SMART GoWire cable to a computer with a Windows operating system.For other computer requirements, see the SMART GoWire cable for SMART Meeting Pro... -
Page 17: Installing Smart Notebook Software
SMART Notebook software to access more features for your interactive display overlay. I M P O R T A N T Connect to the Internet before you install SMART software so that you can obtain a software product key and download software updates. - Page 18 (Windows operating systems) or the Dock (Mac operating system software) and then select Check for Updates and Activation. The SMART Product Update window appears. 4. Follow the on-screen instructions to update SMART Notebook software and SMART Product Drivers to their latest versions. 5. Go to smarttech.com/registration...
-
Page 19: Chapter 4: Using Your Interactive Display Overlay
Using Floating Tools Floating Tools Your interactive display overlay enables you to perform mouse functions with your finger. With SMART software installed, you can draw digital ink, erase digital ink, open an on-screen keyboard and more. Orientating your interactive display overlay... -
Page 20: Using Touch Control
4. Test the orientation by moving the pointer around the screen using your finger or pen. If touch is still inaccurate, orientate your interactive display overlay again. Using touch control Even without SMART software, your interactive display overlay enables touch control as if your touch was a mouse. To open a file or folder... -
Page 21: Using Multitouch Gestures In Windows 7 Operating System
Multitouch gestures do not work when SMART Notebook software or SMART Meeting Pro software are in Whiteboard mode. Using SMART Meeting Pro software If SMART Meeting Pro software is installed on your computer, you can access the features of SMART Meeting Pro software. N O T E Press Help or F1 to access SMART Meeting Pro software help. -
Page 22: Using Smart Business Toolbar Tools
Using your interactive display overlay Using SMART Business Toolbar tools Once you have installed SMART Meeting Pro software, the SMART Business Toolbar gives you easy access to a variety of tools that you'll use frequently. For more information, see the SMART Meeting Pro software Help. -
Page 23: Using Smart Notebook Software
Full Whiteboard view and on the Page Sorter when in Normal view. Using other tools In addition to SMART Recorder, SMART Video Player and SMART Keyboard, you can use these additional tools with your interactive product by pressing Programs and then selecting the tool. Tool... -
Page 24: Using Floating Tools
C H A P T E R 4 Using your interactive display overlay Using Floating Tools Once you have installed SMART Notebook software, the Floating Tools tab appears on the left-hand side of your desktop. For more information, see the SMART Notebook software Help. -
Page 25: Chapter 5: Maintaining Your Interactive Display Overlay
Cleaning your interactive display overlay C A U T I O N Before you clean your SMART product, shut down or disconnect the computer. Otherwise, you may scramble the desktop icons or inadvertently activate applications when you wipe the screen. -
Page 26: Updating Smart Software
C H A P T E R 5 Maintaining your interactive display overlay Updating SMART software You can check for software updates with your SMART Product Update or by going to smarttech.com/downloads. To check for software updates 1. Start your SMART software program. -
Page 27: Chapter 6: Troubleshooting Your Interactive Display Overlay
The pointer moves erratically. Ensure that nothing is touching the screen or blocking the view of the cameras. A “USB not recognised” message appears. Disconnect and then connect the USB cable. If the issue persists, contact SMART technical support (smarttech.com/ContactSupport). -
Page 29: Appendix A: Hardware Environmental Compliance
Appendix A Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment regulations (WEEE directive) Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment sold within the European Union. -
Page 30: Covered Electronic Devices
China’s Electronic Information Products regulations China regulates products that are classified as EIP (Electronic Information Products).SMART Technologiesproducts fall under this classification and meet the requirements for China’s EIP regulations. Restriction of Certain Chemicals (REACH directive) The European Union has enacted the REACH directive which restricts the use of certain chemicals... - Page 32 SMART Technologies smarttech.com/support smarttech.com/contactsupport...
