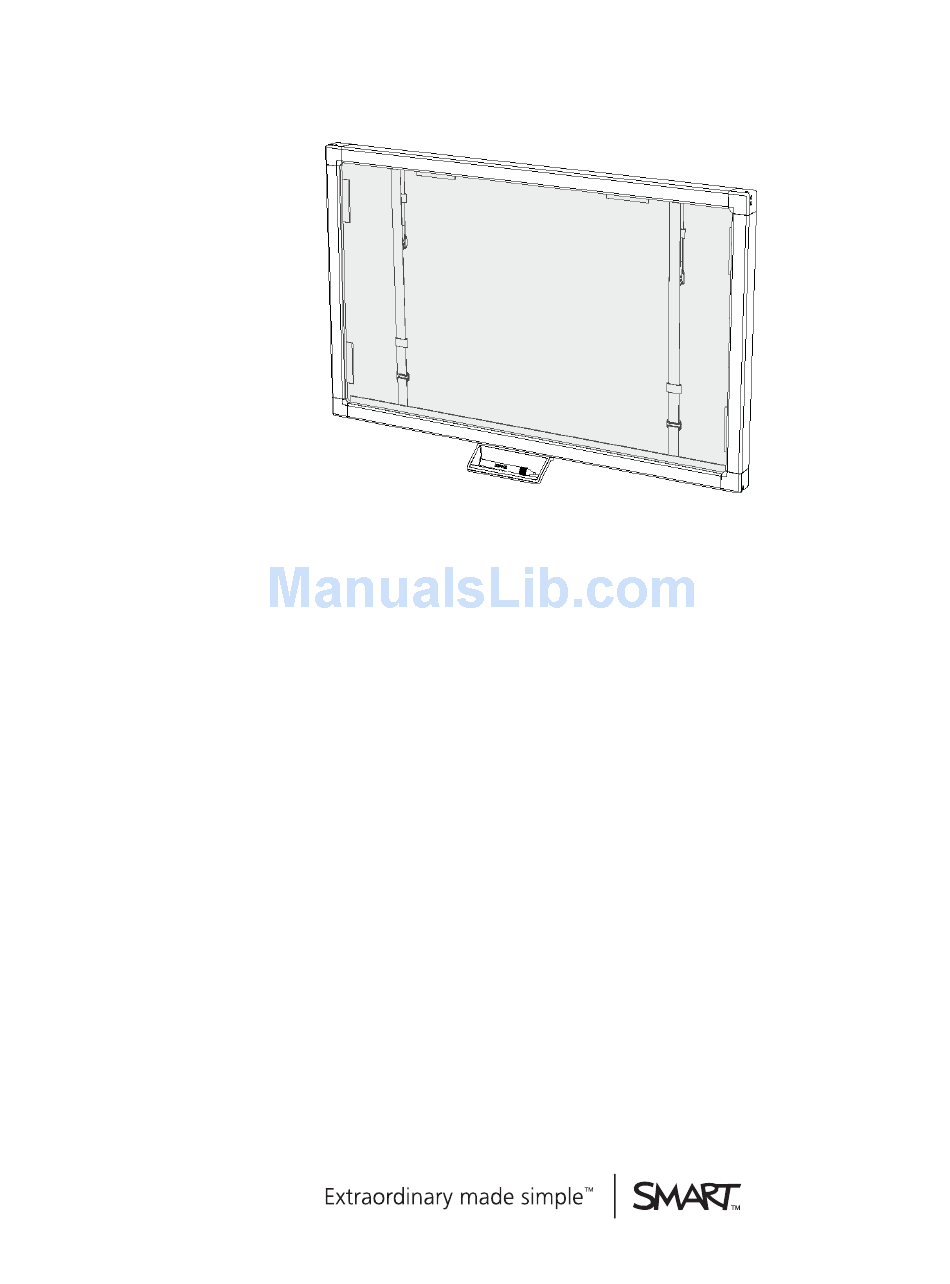

  • Page 1 SMART Board™ 400 series interactive display overlay User’s guide...

  • Page 2: Product Registration

    Product registration If you register your SMART product, we’ll notify you of new features and software upgrades. Register online at smarttech.com/registration. Keep the following information available in case you need to contact SMART Support. Serial number: Date of purchase: FCC warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Important information for your interactive display overlay   W A R N I N G Failure to follow the installation instructions shipped with your SMART product could result in personal injury and damage to the product which may not be covered by your warranty. Ensure that any cables extending across the floor to your SMART product are properly bundled and marked to avoid a trip hazard.

  • Page 5: Table Of Contents

    Contents Important information for your interactive display overlay Chapter 1: About your interactive display overlay Your SMART Board 400 series interactive display overlay Features of your interactive display overlay Accessories and replacement parts Chapter 2: Setting up your interactive display overlay...

  • Page 7: Chapter 1: About Your Interactive Display Overlay

    Chapter 1 About your interactive display overlay Your SMART Board 400 series interactive display overlay Features of your interactive display overlay Software Touch DViT™ (Digital Vision Touch) technology USB cable Accessories and replacement parts When you mount your SMART Board™ 400 series interactive display overlay on a compatible flat- panel display and connect it to a computer with SMART software, you have touch control of your computer’s desktop from your interactive display overlay screen and can write and erase digital ink.

  • Page 8: Your Smart Board 400 Series Interactive Display Overlay

    C H A P T E R 1 Introducing your SMART Board interactive display overlay Your SMART Board 400 series interactive display overlay Use the illustration below to familiarize yourself with the components of your interactive display overlay. Features of your interactive display overlay...

  • Page 9: Accessories And Replacement Parts

    Cat 5 to USB extender. You require a powered hub to use a Cat 5 to USB extender with the interactive display overlay. RPENLEDGE-SBID4 Replacement pen ledge for the SMART Board 400 series interactive display overlay. RPEN-SBID4 Replacement pen and nibs for the SMART Board 400 series interactive display overlay. GW-MP SMART GoWire™ auto-launch cable for business.

  • Page 11: Chapter 2: Setting Up Your Interactive Display Overlay

    Two people are required to mount your SMART product because it may be too heavy for one person to safely maneuver.   I M P O R T A N T For more information, see the SMART Board 400 series interactive display overlay textless installation guide (smarttech.com/kb/160507).
  • Page 12   I M P O R T A N T For a complete list of compatible flat-panel displays and the spacers they require for a secure fit, see the SMART Board 400 series interactive display overlay flat-panel display fit list (smarttech.com/kb/160508).

  • Page 13: Connecting Your Interactive Display Overlay To Your Computer

    C H A P T E R 2 Setting up your interactive display overlay 6. If the flat-panel display was wall-mounted, return the flat-panel display and interactive display overlay to the wall mount. Connecting your interactive display overlay to your computer Connect the included 9' 10"...
  • Page 14 C H A P T E R 2 Setting up your interactive display overlay Extending your connection with a CAT5 to USB extender If your computer will be farther than 16' 5" (5 m) from your interactive display overlay, you can use a CAT5 to USB extender and a powered hub to connect them.

  • Page 15: Chapter 3: Installing Smart Software

    Chapter 3 Installing SMART software Identifying your SMART software package Installing SMART Meeting Pro software Connecting a SMART GoWire cable Installing SMART Notebook software You must install SMART software on the computer connected to your interactive display overlay to use all the features of your interactive display overlay. Identifying your SMART software package The SMART software you’re entitled to depends on which model of interactive display overlay you purchased.

  • Page 16: Installing Smart Meeting Pro Software

    C H A P T E R 3 Installing SMART software Installing SMART Meeting Pro software Install SMART Meeting Pro software if your interactive display overlay model number includes the suffix “-MP”.   I M P O R T A N T SMART Meeting Pro software is available only for computers with Windows operating systems. For more information, see the release notes in the Related documents section of the SMART Meeting Pro software downloads page.

  • Page 17: Installing Smart Notebook Software

    C H A P T E R 3 Installing SMART software To connect a SMART GoWire cable 1. If your computer is connected to your interactive display overlay by a USB cable, then disconnect the USB cable from your computer. 2. Connect the SMART GoWire cable to the USB cable. 3.
  • Page 18 C H A P T E R 3 Installing SMART software 3. Click the SMART Board icon in the notification area (Windows operating systems) or the Dock (Mac operating system software), and then select Check for Updates and Activation. The SMART Product Update window appears. 4.

  • Page 19: Chapter 4: Using Your Interactive Display Overlay

    Chapter 4 Using your interactive display overlay Orienting your interactive display overlay Using touch control Using multitouch gestures in Windows 7 operating system Using SMART Meeting Pro software Using SMART Business Toolbar tools Using other tools Using SMART Notebook software Using Floating Tools Floating Tools Your interactive display overlay enables you to perform mouse functions with your finger.

  • Page 20: Using Touch Control

    C H A P T E R 4 Using your interactive display overlay Press the Orientation button near the top left corner of your interactive display overlay. The orientation screen appears. 2. Hold your finger or pen steadily on the center of the red target until you hear the buzzer, and then lift your finger or pen away from the screen.

  • Page 21: Using Multitouch Gestures In Windows 7 Operating System

      I M P O R T A N T If you are unable to use these gestures on a computer with Windows 7 operating system, download the Windows 7 multitouch driver for the SMART Board 400 series interactive display overlay from smarttech.com/downloads.

  • Page 22: Using Smart Business Toolbar Tools

    C H A P T E R 4 Using your interactive display overlay Using SMART Business Toolbar tools After you install SMART Meeting Pro software, the SMART Business Toolbar gives you easy access to a variety of tools you'll use frequently. For more information, see the SMART Meeting Pro software Help.  ...

  • Page 23: Using Smart Notebook Software

    C H A P T E R 4 Using your interactive display overlay Tool Name Action Display the previous page of the current file. You can also press the Previous Page PAGE UP key on your keyboard. Available in Whiteboard mode when in Full Whiteboard view, and on the Page Sorter when in Normal view.

  • Page 24: Using Floating Tools

    C H A P T E R 4 Using your interactive display overlay Using Floating Tools After you install SMART Notebook software, the Floating Tools tab appears on the left side of your desktop. For more information, see the SMART Notebook software Help. To open or close Floating Tools Press the double arrows on the Floating Tools tab.

  • Page 25: Chapter 5: Maintaining Your Interactive Display Overlay

    Chapter 5 Maintaining your interactive display overlay Cleaning your interactive display overlay Updating SMART software Transporting your interactive display overlay Properly maintained, your interactive display overlay will provide years of service. Cleaning your interactive display overlay   C A U T I O N Before you clean your SMART product, shut down or disconnect the computer.

  • Page 26: Updating Smart Software

    C H A P T E R 5 Maintaining your interactive display overlay Updating SMART software You can check for software updates with your SMART Product Update or by going to smarttech.com/downloads. To check for software updates 1. Start your SMART software program. 2.

  • Page 27: Chapter 6: Troubleshooting Your Interactive Display Overlay

    Chapter 6 Troubleshooting your interactive display overlay This section provides some solutions to issues that could occur with your interactive display overlay. Issue Recommendation Connect your computer to your You don’t see your computer desktop on the screen. interactive display overlay with a video cable.

  • Page 29: Appendix A: Hardware Environmental Compliance

    Appendix A Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment regulations (WEEE directive) Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment sold within the European Union.

  • Page 30: Covered Electronic Devices

    A P P E N D I X Hardware environmental compliance Covered electronic devices Many U.S. states classify monitors as covered electronic devices and regulate their disposal. Applicable SMART Technologies products meet the requirements of the covered electronic devices regulations. China’s Electronic Information Products regulations China regulates products that are classified as EIP (Electronic Information Products).
  • Page 32 SMART Technologies smarttech.com/support smarttech.com/contactsupport...
