Streering Lever - CanyCom S25A Operator's Manual

7

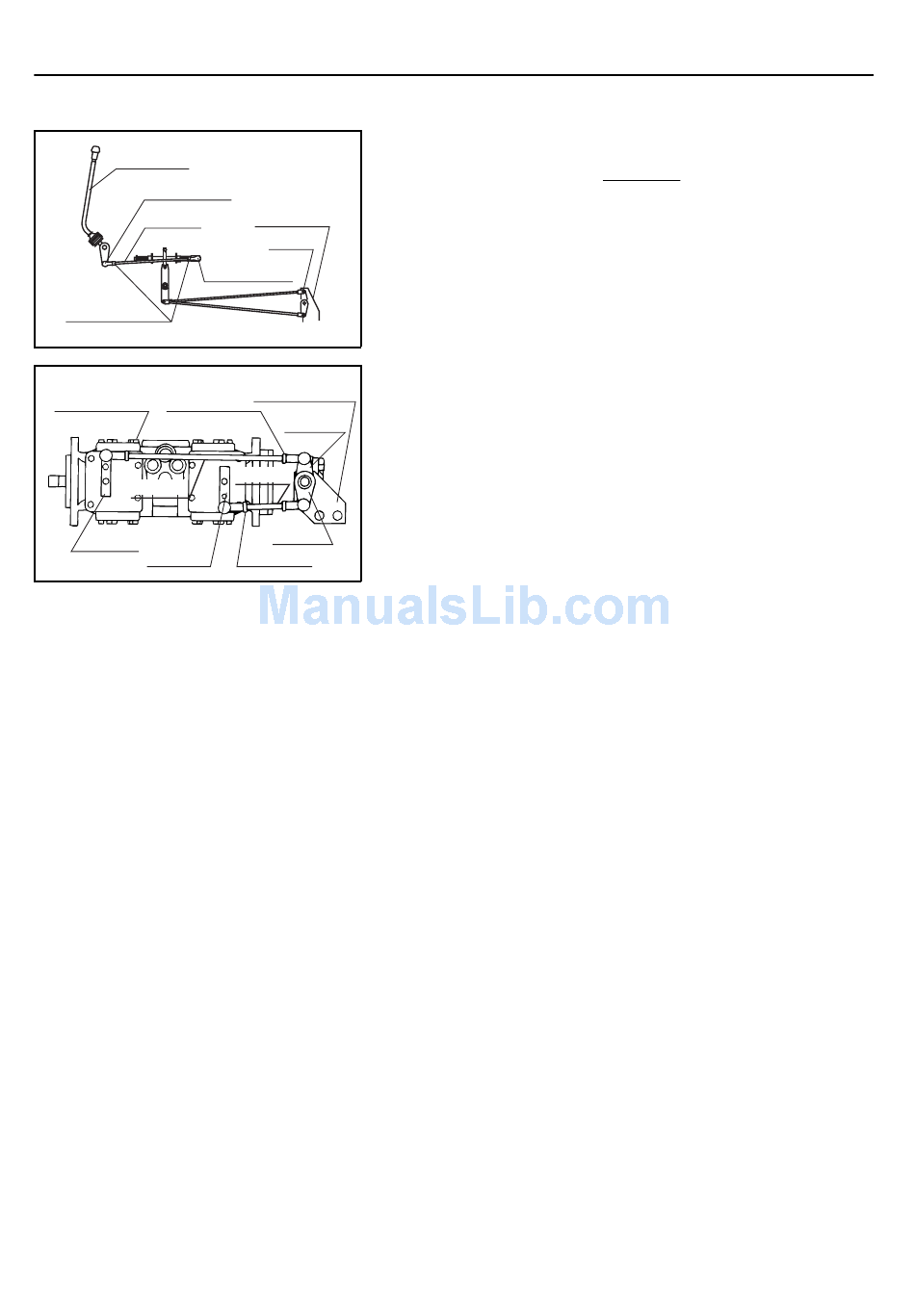

Steering lever
Link ball
Rod A
Locknut
Hydraulic
pump
Locknut
Rod B
Arm A
ArmB
Maintenance
Intermediate
link
A r m
Link ball
Intermediate
link
Arm C
Rod C
Arm D
Locknut
7.8.4. Steering Lever
The steering lever is adjusted to the suitable
value when the machine is shipped from the
factory,so normally there is no need to adjust
it. If the steering lever and links have been
replaced,the steering lever must be adjusted.
1. Turn rod A and adjust so that the link portion of
the steering lever is perpendicular.
(1)Loosen locknut.
(2)Turn rod A to adjust.
(3)After adjusting,tighten the locknut securely.
2. Adjust with the bearing so that hydraulic pump
arm A, arm B, intermediate link arm C, and arm
D are perpendicular.
(1)Loosen locknut.
(2)Turn rods B and C to adjust.
(3)After adjusting,tighten the locknut securely.
3. In the condition in Step 2, operate the steering
lever fully to the front and rear, and check that
arm A and arm B both move the same angle to
the front and rear. If the angle is different, turn
rod B or C to ajust.
4. After carrying out of the adjustments in Steps
1 to 3, set the steering lever to the [N] position,
push the parking brake switch to the [ (parking)],
and start the engine.
Operate the parking brake switch to the
[TRAVEL] position, and if the machine dose not
move, the setting of the [N] position is correct.
If the machine moves, turn rod B and rod C
again to carry out fine adjustment of arm A and
arm B and set securely to the neutral position.
5. After completing the setting of the neutral
position in Step 4, operate the steering lever
fully to the front and rear and check that the
machine travels in a straight line.
6. Coat the sliding surface of arm A and arm B with
grease.
-54-
