Summary of Contents for Telikou FT-800

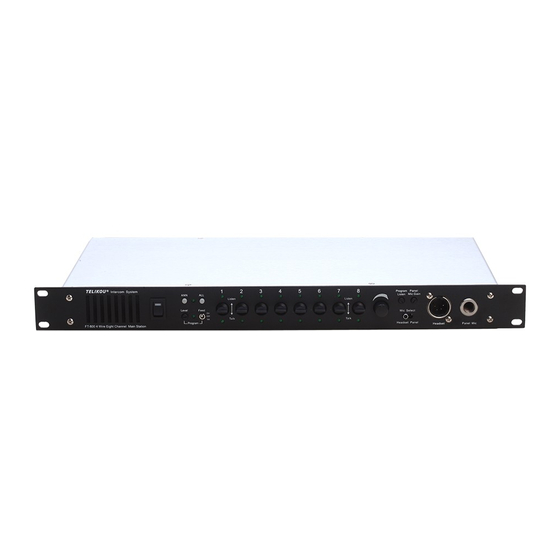

- Page 1 TELIKOU Intercom System FT-800 4-Wire Eight Channel Main Station Instruction Manual © TELIKOU Systems All Rights Reserved...
- Page 2 Thank you for choosing TELIKOU intercom products. FT-800 is a 4-wire eight channel main station. FT-800 not only can be connected to camera CCU, but also can be connected to BK-104 belt pack which supports Tally function. The FT-800 is suitable for television stations, communications centers, OB trucks, live performance venues and even sports facilities.
- Page 3 Microphone select switch is used to select between panel microphone or headset microphone. 4. Volume Control Use this control to adjust the audio level from the FT-800 headset or panel speaker. 5. Channel Button Lift button enter the monitoring status. The up LED lights.
- Page 4 When channel switch is lift or pressed, this light on. 16. Program Listen Volume Control Adjust program audio level which for the FT-800 panel speaker or headset. 17. Panel Mic Gain Mic gain is used to adjust the panel microphone gain. It has preset for electret microphones 18.
- Page 5 Pin 6 --- Audio Input -; Pin 7 --- Green Tally Signal Drive; Pin 8 --- Red Tally Signal Drive; Note: When connect to any other TELIKOU 4-wire device. The RJ-45 connection cable should be made as follow. Orange White...
- Page 6 Pin 9 --- Common Note: low level is efficient. IV：Connect to CCU CCU board is optional. Each FT-800 can has max four CCU channel. CCU channel can not talk with any other channel except front panel. Pin 1 --- Ground;...
-
Page 7: Troubleshooting
2. Turn on the camera microphone . Meanwhile, FT-800 headset and camera headset both can hear each other. 3. If the voice heard from FT-800 is not proper. Adjust the Input Level potentionmeter which is beside RJ-45 connector, until the voice level which is heard from FT-800 is proper. -
Page 8: Power Supply
TELIKOU FT-800 4-Wire Eight Channel Main Station v2.3 Otherwise, please check the FT-800 and tally light. VI Technical Specification Audio Bandwidth: 200Hz-4000Hz ±2dB Earphone impedance: Dynamic 50-2000ohm Microphone impedance: Dynamic 100-600ohm 4-Wire Channel Input Audio Type: Balanced 4-Wire Channel Output Audio Type: Balanced 4-Wire Channel Input Impedance: >10Kohm...
