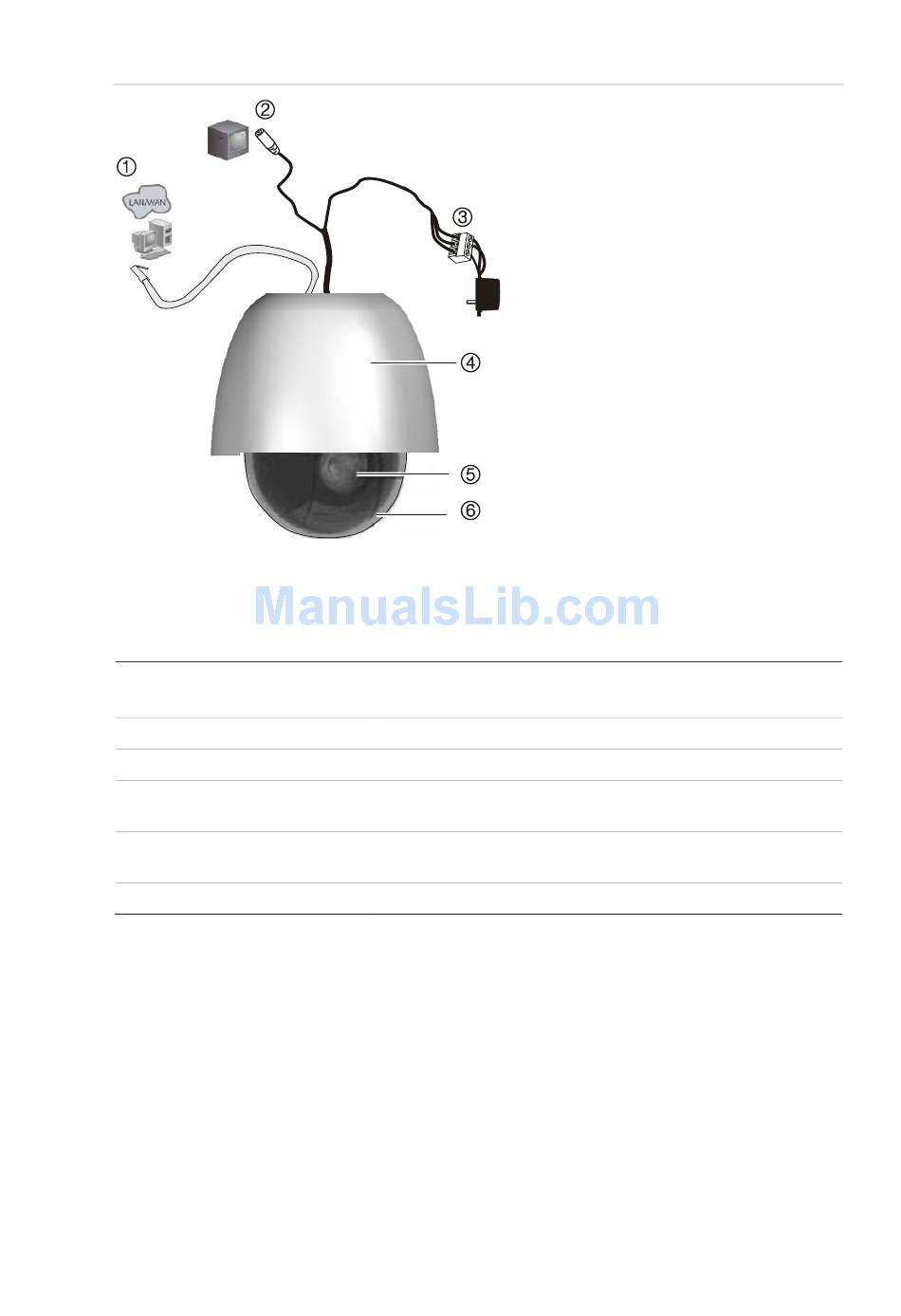

Figure 2: Overview of the dome camera

Specifications

Operating temperature
Power supply
Power consumption
Dimensions (mm)
Environmental
Weight

System requirements

For proper operation, adhere to the following operational, cable, and power
requirements for the dome camera.
Cable requirements
Table 1 on page 6 lists the requirements for the cables that connect to the dome
camera.
UltraView IP PTZ 36X Camera User Manual
1. Ethernet RJ-45 connector.
Connect to the network devices.
2. Video output.
Connect the BNC connector to a CCTV
monitor. Optional.
3. Power supply cord.
Connect +24 VAC power supply.
4. Housing.
5. PTZ module.
6. Bubble.
Pendant housing: -10 to +50 °C (-14 to +122 °F)
Flush housing: -30 to +65 °C (-22 to +149 °F)
24 VAC +/- 4 VAC
30 W (heater on), 15 W (heater off)
Pendant housing: Ø 220 × 261 mm (Ø 8.66 ×10.27 in.)
Flush housing: Ø 206 × 241 mm (Ø 8.11 × 9.49 in.)
Pendant housing: IP66
Flush housing: IP54
5 kg (11 lb.)
