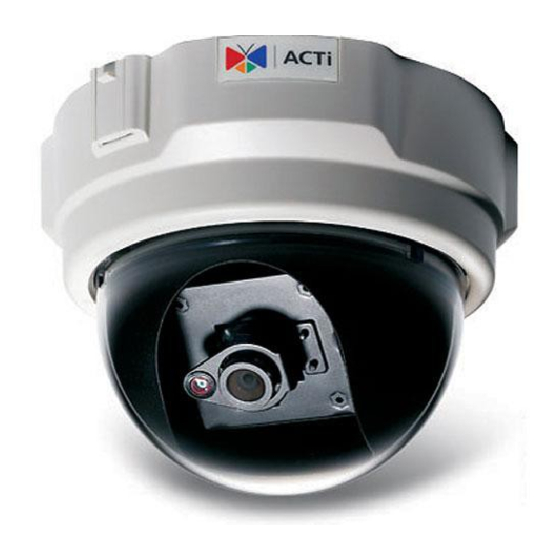

ACTi ACM-3401 Quick Installation Manual
Megapixel ip dome
Hide thumbs
Also See for ACM-3401:
- Hardware user manual (24 pages) ,
- Specifications (2 pages) ,
- Hardware user manual (22 pages)
Related Manuals for ACTi ACM-3401
Summary of Contents for ACTi ACM-3401
-
Page 1: Quick Installation Guide
Megapixel IP Dome ACM-3401 Megapixel Day&Night IP Dome ACM-3411 Ver. 080130 Quick Installation Guide... -
Page 2: Getting Started
Getting Started PACKAGE CONTENTS ACM-3401/3411 Power Adaptor (Option) Product CD Accessory Warranty Card Drill Template Drill template... -
Page 3: Physical Description
PHYSICAL DESCRIPTION Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed for a while, release the reset button. - Page 4 NAME DESCRIPTION DC Power Input Ground Pin Audio Input / Output The IP device supports audio input and output with terminal block.
-
Page 5: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect the power adaptor to IP device 2. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your IP device has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 6: Quick Tour
Quick Tour This section guides you with a quick tour on this IP device. 2.1 Configure this IP Device 2.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below. - Page 7 2.1.2 Open Internal Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP device default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
- Page 8 2.1.4 Preview the video 2.1.5 Set the new IP address...
- Page 9 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this IP device follows MII standard.
