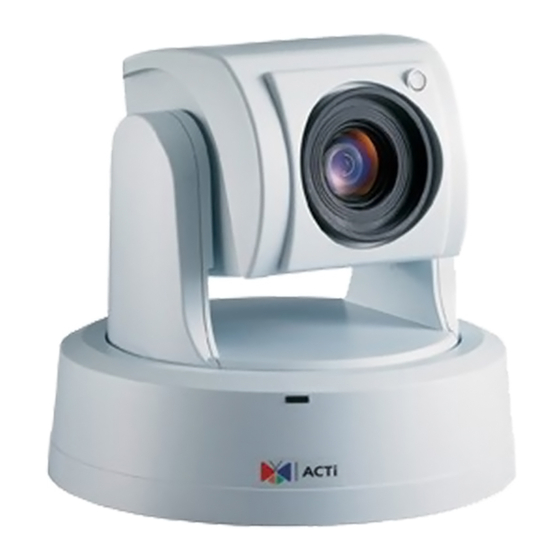

ACTi ACM-8511 Quick Installation Manual
Ip ptz camera
Hide thumbs
Also See for ACM-8511:
- User manual (16 pages) ,
- Installation & configuration note (12 pages)
Related Manuals for ACTi ACM-8511
Summary of Contents for ACTi ACM-8511
-
Page 1: Quick Installation Guide
IP PTZ Camera ACM-8511 Ver. 080912 Quick Installation Guide... -
Page 2: Getting Started
Getting Started PACKAGE CONTENTS ACM-8511 Power Adaptor (Option) Product CD Terminal Blocks & Screw Warranty Card Accessory... -
Page 3: Physical Description
PHYSICAL DESCRIPTION Power Input If your power input is DC12V. Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. - Page 4 •1 transistor output - For connecting external devices such as relays and LED’s. Connected devices can be activated by Output buttons on the Live View page or by an Event Type. The output will show as active (in Event Configuration > Port Status) if the alarm device is activated.
- Page 5 connector (also green) on the camera. 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND RELAY DC POWER DEVICE DIODE CAMERA...
-
Page 6: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect the power adaptor to IP device 2. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your IP device has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 7: Quick Tour
Quick Tour This section guides you with a quick tour on this IP device. 2.1 Configure this IP Device 2.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below. - Page 8 2.1.2 Open Internal Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This IP device default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
- Page 9 2.1.4 Preview the video 2.1.5 Set the new IP address...
- Page 10 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotiation, since this IP device follows MII standard.
