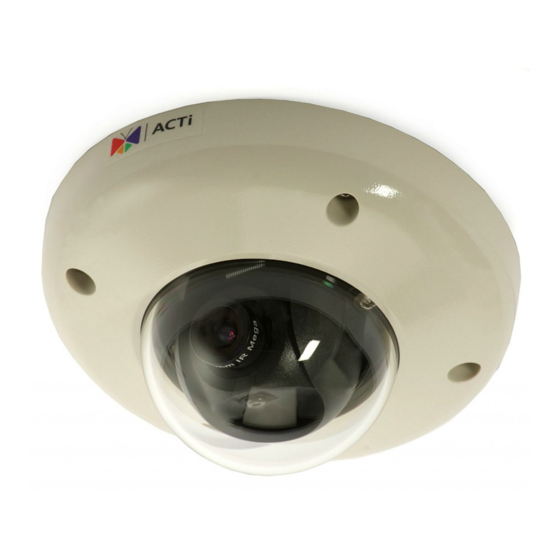

- Page 1 Megapixel IP Vandal Proof PoE Indoor Mini Dome ACM-3701E Ver. 120803 Quick Installation Guide VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 2 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 3: Getting Started
Getting Started PACKAGE CONTENTS ACM-3701E Product CD Warranty Card Drill Template Mount Screws Allen/Hex Key RJ45 Field Installable Feed Through Adaptor VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 4: Physical Description
PHYSICAL DESCRIPTION Ethernet Indicator LED The LED will indicate ethernet speed and active states after IP camera has connected completely. Power LED The LED will light up after IP camera has successfully completed the boot process Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. - Page 5 Model ACM-3701E Picture Type Rugged RJ-45 Connector Ethernet Port The IP device connects to the Ethernet via a female RJ-45 industrial connector. The Ethernet port supporting Power over Ethernet. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
- Page 6 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 7: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect this IP device’s ethernet port to an Ethernet (RJ45 connector). IP device has only PoE built-in, you must regard it as a PD and connect it directly to a PSE device like PoE switch. -
Page 8: Quick Tour
Quick Tour This section guides you with a quick tour on this IP device. 2.1 Configure this IP Device 2.1.1 Make sure network environment Default IP of this IP device is 192.168.0.100. Please make sure this IP device and your PC are on the same network segment before running the installation. Please set the settings as below. - Page 9 2.1.2 Open Internal Explorer with IP address If your web browser is earlier than IE6, then download IE6 is NOTE: recommended. This IP device default IP address is set to 192.168.0.100 NOTE: 2.1.3 Login with default administrator’s account & password Default administrator account is set to Admin, password is set to NOTE: 123456, and click...
- Page 10 2.1.4 Preview the video 2.1.5 Set the new IP address VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 11 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 button *Click In your Client PC, please make sure the setting of Network NOTE: Connections Type is set to Auto Negotation, since this IP device follows MII standard.
