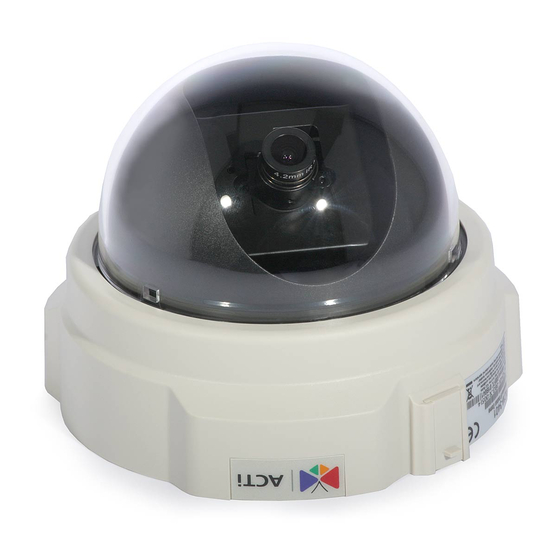

- Page 1 ACM-3401 Series Megapixel IP PoE Dome Hardware User’s Manual (DC 12V / PoE) Ver. 2012/3/5 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 2: Table Of Contents
ACM-3401 Series Hardware User’s Manual Table of Contents Precautions Introduction Package Contents..............4 Features and Benefits ..............5 Safety Instructions ..............6 Physical description ..............8 Installation Procedure ..............11 Ceiling Mount ..................11 Wall Mount....................14 Basic Connections..............17 Product Specification..............18 Accessing Camera If you have DHCP server / router in your network:......19... -
Page 3: Precautions
ACM-3401 Series Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
ACM-3401 Series Hardware User’s Manual 1. Introduction Package Contents ACM-3401 Product CD Accessories Warranty Card Drill Template Drill template www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... -
Page 5: Features And Benefits
ACM-3401 Series Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (8 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
ACM-3401 Series Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included wit h this device. All warranty of this product will be voided in the situations above. - Page 7 ACM-3401 Series Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 8: Physical Description
ACM-3401 Series Hardware User’s Manual Physical description 1) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base -T/100Base-TX Ethernet). 2) Power Input Connect the power adaptor here if your power input is DC12V. - Page 9 ACM-3401 Series Hardware User’s Manual The red Step 3: Reconnect the power cable while continuing to hold the reset button. Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for another second and turn off again.
- Page 10 ACM-3401 Series Hardware User’s Manual Terminal Pin Define is described as below: Pin Name Description Spec DIO PW Electrically connected in parallel with the con- Voltage: 12V DC, nector for the power supply, this pin provides an Max: 1.2W auxiliary connector for mains power to the unit.
-
Page 11: Installation Procedure
ACM-3401 Series Hardware User’s Manual Installation Procedure Ceiling Mount Use the drill template, and drill a hole with φ35 on the ceiling Tighten the plate to ceiling with M4*20 screws www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 12 ACM-3401 Series Hardware User’s Manual Connect cable s through the hole on the ceiling and plate, or on the side of casing Fasten the camera to ceiling by turning clockwi se direction www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 13 ACM-3401 Series Hardware User’s Manual Insert the cables (Power/Network/DIO/Audio) through the mounting plate and connect to the camera. Then use the little strap in bundled accessory to fa sten the network cable. 1.6.1.6 Done www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 14: Wall Mount
ACM-3401 Series Hardware User’s Manual Wall Mount Tighten wall mount bracket to the wall by 3 PAN Head Tapping screw s 3-PAN HEAD SCREW TAPPING Tighten the plate to wall mount bracket with M4*10 screws, and connect all necessary cables through the hole on the plate and wall mount kit 2-FLAT HEAD SCREW TAPPING(M4x10 www.acti.com... - Page 15 ACM-3401 Series Hardware User’s Manual Note: that there’s a triangle mark on both plate and wall mount kit. Those triangle marks need to be fixed to the same direction. Insert the cables (power/Network/audio) through the mounting plate and connect to the camera.
- Page 16 ACM-3401 Series Hardware User’s Manual Fasten the camera to wall mount kit by turning clockwise direction Done www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 17: Basic Connections
ACM-3401 Series Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the S witch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 18: Product Specification
ACM-3401 Series Hardware User’s Manual Product Specification ACM-3401 ACM-3411 Device Micron Progressive Scan CMOS Size 1/3 inch Image Effective Pixels 1280(H) x 1024(V) Color mode automatically switched Color 0.5 Lux at F1.0 (2400 ºK, 30 IRE) to B/W mode under 4 Lux Min. -
Page 19: Accessing Camera
ACM-3401 Series Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a net work, just plug in your computer and IP Cam era into the net work and your IP device will acquire network address by itself. - Page 20 ACM-3401 Series Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and pas sword: Default User: Admin Password: 123456 6.
- Page 21 ACM-3401 Series Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the net work, no two devices use the same IP.
- Page 22 ACM-3401 Series Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add int o the net work, please type the correct IP.
