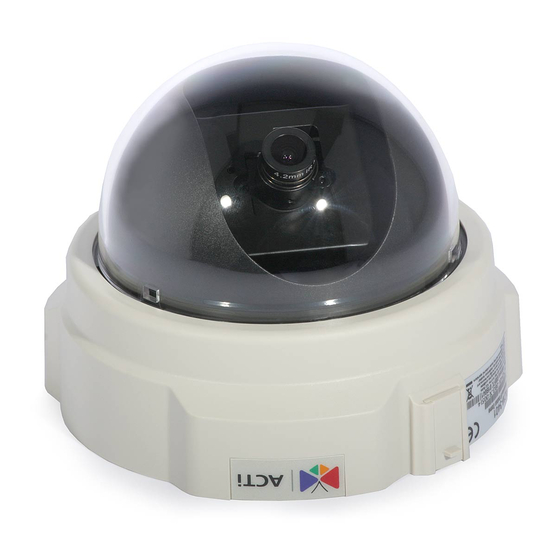

ACTi ACM-3401 Series Hardware User Manual
Acm-3401 series megapixel ip poe dome dc 12v/poe
Hide thumbs
Also See for ACM-3401 Series:
- Hardware user manual (22 pages) ,
- Quick installation manual (9 pages) ,
- Specifications (2 pages)
Related Manuals for ACTi ACM-3401 Series
Summary of Contents for ACTi ACM-3401 Series
- Page 1 ACM-3401 Series Megapixel IP PoE Dome Hardware User’s Manual (DC 12V / PoE) Ver. 2012/9/14...
-
Page 2: Table Of Contents
ACM-3401 Series Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Installation Procedure ..............11 Ceiling Mount ................11 Wall Mount ................... 15 Basic Connections ................. 19 Product Specification .............. -
Page 3: Precautions
ACM-3401 Series Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
ACM-3401 Series Hardware User’s Manual 1. Introduction Package Contents ACM-3401 Product CD Accessories Warranty Card Drill Template Drill template... -
Page 5: Features And Benefits
ACM-3401 Series Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (8 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
ACM-3401 Series Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 7 ACM-3401 Series Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.
-
Page 8: Physical Description
ACM-3401 Series Hardware User’s Manual Physical description 1) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). 2) Power Input Connect the power adaptor here if your power input is DC12V. - Page 9 ACM-3401 Series Hardware User’s Manual Step 3: Reconnect the power cable while continuing to hold the reset button. The red Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for another second and turn off again.
- Page 10 ACM-3401 Series Hardware User’s Manual Terminal Pin Define is described as below: Pin Name Description Spec DIO PW Electrically connected in parallel with the con- Voltage: 12V DC, nector for the power supply, this pin provides an Max: 1.2W auxiliary connector for mains power to the unit.
-
Page 11: Installation Procedure
ACM-3401 Series Hardware User’s Manual Installation Procedure Ceiling Mount Use the drill template, and drill a hole with φ35 on the ceiling Use the mounting plate and choose the correct three screw holes. There are two versions of the mounting plate. - Page 12 ACM-3401 Series Hardware User’s Manual Tighten the plate to ceiling with T4*20 screws (not to use screws other than flat heads). Please make sure the screw is flat on the plate, protruding is incorrect. Connect cables through the hole on the ceiling and plate, or on the side of casing...
- Page 13 ACM-3401 Series Hardware User’s Manual Fasten the camera to ceiling by turning clockwise direction Insert the cables (Power/Network/DIO/Audio) through the mounting plate and connect to the camera. Then use the little strap in bundled accessory to fasten the network cable.
- Page 14 ACM-3401 Series Hardware User’s Manual 1.6.1.6 Done...
-
Page 15: Wall Mount
ACM-3401 Series Hardware User’s Manual Wall Mount Tighten wall mount bracket to the wall by 3 PAN Head Tapping screws 3-PAN HEAD SCREW TAPPING Tighten the plate to wall mount bracket with T4*20 screws (not to use screws other than... - Page 16 ACM-3401 Series Hardware User’s Manual Please make sure the screw is flat on the plate, protruding is incorrect. Note: that there’s a triangle mark on both plate and wall mount kit. Those triangle marks need to be fixed to the same direction.
- Page 17 ACM-3401 Series Hardware User’s Manual Insert the cables (power/Network/audio) through the mounting plate and connect to the camera. Then use the little strap in bundled accessory to fasten the network cable. Fasten the camera to wall mount kit by turning clockwise direction...
- Page 18 ACM-3401 Series Hardware User’s Manual Done...
-
Page 19: Basic Connections
ACM-3401 Series Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE(Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 20: Product Specification
ACM-3401 Series Hardware User’s Manual Product Specification ACM-3401 ACM-3411 Device Micron Progressive Scan CMOS Image Size 1/3 inch Effective Pixels 1280(H) x 1024(V) Color mode automatically switched Color 0.5 Lux at F1.0 (2400 ºK, 30 IRE) to B/W mode under 4 Lux Min. -
Page 21: Accessing Camera
ACM-3401 Series Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself. - Page 22 ACM-3401 Series Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click...
- Page 23 ACM-3401 Series Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
- Page 24 ACM-3401 Series Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the video stream by going to Video Setting...
