ACM-4201

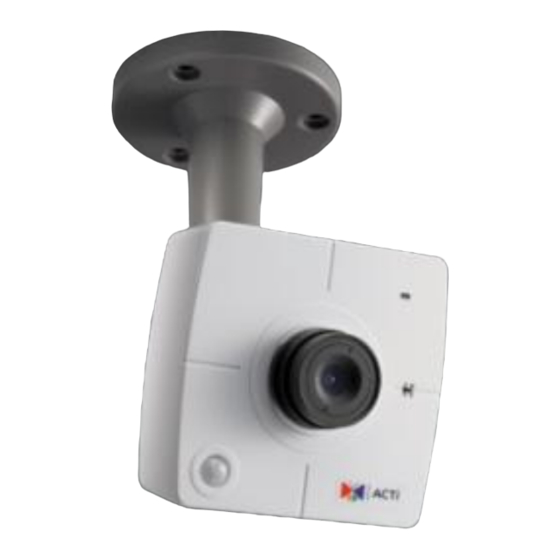

Megapixel IP PoE Cube Camera with PIR
Hardware User's Manual
(DC 12V / PoE)
Ver. 2012/3/12

Advertisement

Table of Contents
loading

Related Manuals for ACTi ACM-4201

Summary of Contents for ACTi ACM-4201

  • Page 1 ACM-4201 Megapixel IP PoE Cube Camera with PIR Hardware User’s Manual (DC 12V / PoE) Ver. 2012/3/12...

  • Page 2: Table Of Contents

    ACM-4201 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Basic Connections ................. 11 Product Specification ..............12 Accessing Camera If you have DHCP server / router in your network: ...... 13 If you do have DHCP server / router in your network: ..

  • Page 3: Precautions

    ACM-4201 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    ACM-4201 Hardware User’s Manual 1. Introduction Package Contents ACM-4201 Product CD Camera Stand Warranty Card Accessories www.acti.com...

  • Page 5: Features And Benefits

    ACM-4201 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (8 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.

  • Page 6: Safety Instructions

    ACM-4201 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 7 ACM-4201 Hardware User’s Manual improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation. Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.

  • Page 8: Physical Description

    ACM-4201 Hardware User’s Manual Physical description 1) Action LED Indicator LED light will light up after the Camera has successfully completed the boot process. 2) Microphone Input Sensitivity: -36dB ± 3dB (0dB=1V/Pa at 1KHz) S/N Ratio: More than 58dB Directivity: Omni directional 3) Motion Sensor (PIR) Motion Sensor detects movement by looking at changes in the Infrared (IR) spectrum.
  • Page 9 ACM-4201 Hardware User’s Manual 4) Audio Output The IP device supports audio output with earphone jack 5) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
  • Page 10 ACM-4201 Hardware User’s Manual 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND DC POWER RELAY DEVICE DIODE CAMERA Connect input/output devices to the camera as follows: 1. Attach the cables for the device securely to the supplied green connector block.

  • Page 11: Basic Connections

    ACM-4201 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. If you have a PoE (Power over Ethernet) supported switch or injector: (PoE Enabled version only) 1) Connect your IP Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45 connector.

  • Page 12: Product Specification

    ACM-4201 Hardware User’s Manual Product Specification ACM-4201 Device Micron Progressive Scan CMOS Image Size 1/3 inch Effective Pixels 1280(H) x 1024(V) Min. scene Color 0.5 Lux at F1.0 (2400°K, 30 IRE) Illumination Lens f4.2mm / F1.8 Lens Viewing Angle 75° (Horizontal) Synchronization Sync.

  • Page 13: Accessing Camera

    ACM-4201 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself.
  • Page 14 ACM-4201 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 15 ACM-4201 Hardware User’s Manual If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP. Please perform the following steps.
  • Page 16 ACM-4201 Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the video stream by going to Video Setting...
