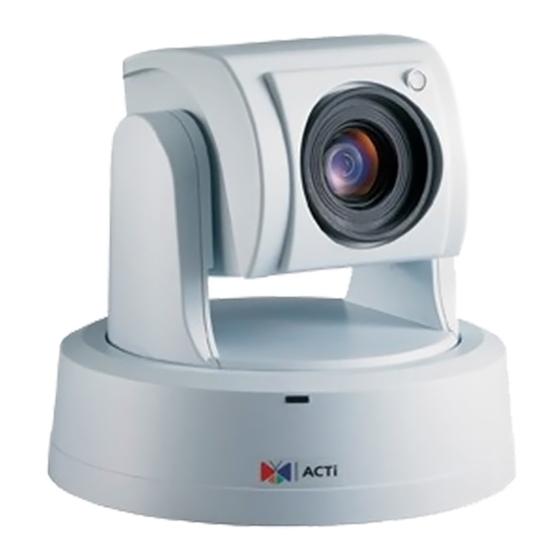

IP D/N PoE PTZ Camera
ACM-8511
Ver. 120312
Hardware User's Manual

Advertisement

Table of Contents
loading

Related Manuals for ACTi ACM-8511

Summary of Contents for ACTi ACM-8511

  • Page 1 IP D/N PoE PTZ Camera ACM-8511 Ver. 120312 Hardware User’s Manual...

  • Page 3: Trademarks

    PRECAUTIONS Read these instructions All the safety and operating instructions should be read before the product is operated. Heed all warnings All warnings on the product and in the instruction manual should be adhered to. The symbol indicates the following items, please carefully read the description next to each symbol.
  • Page 4 and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

  • Page 5: Table Of Contents

    Table of Contents PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Basic Connections _______________________________________________ 1-9 Product Specification ___________________________________________ 1-10...

  • Page 7: Introduction

    INTRODUCTION 1.1 Package Contents ACM-8511 Product CD Terminal Blocks & Screw Warranty Card Accessory...

  • Page 8: Features And Benefits

    1.2 Features and Benefits This IP D/N PoE PTZ Camera is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (D1, 720x480) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of MPEG4/MJPEG, and both formats offer megapixel resolution.
  • Page 9 powerful surveillance program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder. Schedule recording and manual recording keep every important image recorded in the local hard disk. Reliable and accurate motion detection with instant warning makes you responsive in every condition.

  • Page 10: Safety Instructions

    1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 11 If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 12: Physical Description

    1.4 Physical Description Power Input If your power input is DC12V. Ethernet Port The IP D/N PoE PTZ Camera connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP D/N PoE PTZ Camera can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
  • Page 13 Used in applications for e.g. motion detection, event triggering, time lapse recording, alarm notifications, etc., the I/O terminal connector provides the interface to: •1 transistor output - For connecting external devices such as relays and LED’s. Connected devices can be activated by Output buttons on the Live View page or by an Event Type.
  • Page 14 3.3V FUSE 1A DC TO DC CONVERTER POWER INPUT EARTH GND DC POWER RELAY DEVICE DIODE CAMERA...

  • Page 15: Basic Connections

    1.5 Basic Connections Follow the procedures below to connect the IP D/N PoE PTZ Camera to the respective apparatuses. 1. Connect the power adaptor to IP D/N PoE PTZ Camera 2. Connect IP D/N PoE PTZ Camera’s Ethernet port to an Ethernet (RJ45 connectors).

  • Page 16: Product Specification

    1.6 Product Specification 1-10...
