ACTi ACM-1231 Hardware User Manual

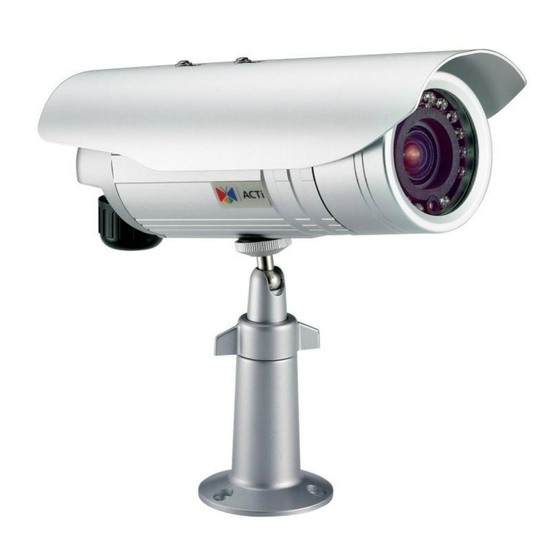

Megapixel ip ir d/n poe outdoor bullet camera (with dc 12v / poe)
Hide thumbs Also See for ACM-1231:
Table of Contents

Advertisement

Quick Links

Megapixel IP IR D/N PoE Outdoor
Bullet Camera
(with DC 12V / PoE)
ACM-1231
Ver. 120426
Hardware User's Manual

Advertisement

Table of Contents
loading

Related Manuals for ACTi ACM-1231

Summary of Contents for ACTi ACM-1231

  • Page 1 Megapixel IP IR D/N PoE Outdoor Bullet Camera (with DC 12V / PoE) ACM-1231 Ver. 120426 Hardware User’s Manual...

  • Page 3: Trademarks

    PRECAUTIONS Read these instructions All the safety and operating instructions should be read before the product is operated. Heed all warnings All warnings on the product and in the instruction manual should be adhered to. The symbol indicates the following items, please carefully read the description next to each symbol.
  • Page 4 and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

  • Page 5: Table Of Contents

    Table of Contents PRECAUTIONS________________________________________________ 0-1 Trademarks ________________________________________________________________ 0-1 Liability ___________________________________________________________________ 0-1 FCC/CE Regulation __________________________________________________________ 0-1 INTRODUCTION ______________________________________________ 1-1 Package Contents _______________________________________________ 1-1 Features and Benefits ____________________________________________ 1-2 Safety Instructions ______________________________________________ 1-4 Physical Description _____________________________________________ 1-6 Basic Connections _______________________________________________ 1-8 How to Do the Waterproof Installation _____________________________ 1-9 Product Specification ___________________________________________ 1-12...

  • Page 7: Introduction

    INTRODUCTION 1.1 Package Contents ACM-1231 (DC12V / PoE / AC24V) The bracket is not included Product CD Terminal Block for Power Warranty Card...

  • Page 8: Features And Benefits

    1.2 Features and Benefits This IP device is a cutting-edge digital video transmission device. It can compress and transmit real time images with outstanding images quality (SXGA, 1280x1024) at reasonable bandwidth through a standard TCP/IP network. That is because it is Ethernet ready and has the powerful ARM9 SoC with excellent system performance to offer dual streams of MPEG4/MJPEG, and both formats offer megapixel resolution.
  • Page 9 detection delivers better sensitivity and responds faster than software motion detection. Bundle Powerful Surveillance Software To extend the capabilities of this IP device, a powerful surveillance program is included in the package and is very free to use. Users can easily utilize the existing PC to be a digital video recorder.

  • Page 10: Safety Instructions

    1.3 Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 11 operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment . Other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 12: Physical Description

    1.4 Physical Description Power Input If your power input is DC12V. Please follow the description on the connector to connect to power. NAME DESCRIPTION DC Power Input Ground Pin If your power input is AC24V. Please follow the description on the connector to connect to power.
  • Page 13 Audio Input / Output The IP device supports audio input and output, with terminal block. Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed for a while, release the reset button.

  • Page 14: Basic Connections

    1.5 Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. 1. Connect the power adaptor to IP device 2. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your IP device has PoE built-in, you can regard it as a PD and connect it directly to a PSE device like PoE switch.

  • Page 15: How To Do The Waterproof Installation

    1.6 How to Do the Waterproof Installation The following installation procedure makes the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain. The important part to focus on during the installation: The protection of the cabling has to be done by a proper flex conduit.
  • Page 16 4. The third piece goes through the back side cover of the camera. 5. The fourth piece (locking nut) is used to lock the gland firmly from the inside of the back side cover. 6. Pull the network cable through the back side cover of the camera.
  • Page 17 8. Tighten the domed sealing nut. 9. Plug network cable into camera’s RJ-45 connector before closing the back side of the camera. If you are not using PoE and need an additional power cord then please connect it at this stage, too. 10.

  • Page 18: Product Specification

    1.7 Product Specification 1-12...
