B&D PanelPro Installation Instructions

Important Safety Instructions
This automatic garage door opener is designed and tested to offer safe service provided it is
installed and operated in strict accordance with the following safety rules. Failure to comply with
the following instructions may result in death, serious personal injury or property damage.
WARNING!
• The door may operate unexpectedly, therefore do not allow anything to stay in the path of
the door.
• When operating the manual release while the door is open, the door may fall rapidly due
to weak or broken springs, or due to being improperly balanced.
• The drive must not be used with a door incorporating a wicket door, unless the drive cannot
be operated with the wicket door open.
• The drive is intended to be installed at least 2.5m above the floor.
• Do not disengage the opener to manual operation with children/persons or any objects
including motor vehicles within the doorway.
• If the door is closing and is unable to re-open when obstructed, discontinue use. Do not
use a door with faulty obstruction sensing
• When using auto close mode, a Safety beam must be fitted correctly and tested for
operation at regular intervals. Extreme caution is recommended when using auto close
mode. All safety rules must be followed.
ELECTROCUTION!
• Place opener in protected area so that it does not get wet.
• Do not spray with water .
• Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
• If the power cord is damaged, it must be replaced by an Automatic Technology service
agent or suitably qualified person.
• Connect the opener to a properly earthed general purpose 240V mains power outlet
installed by a qualified electrical contractor.
CAUTION:
Emergency Access • If garage has no pedestrian entrance door, an emergency access device should be
installed. This accessory allows manual operation of the garage door from outside in case
of power failure.
Muscular strain • Practice correct lifting techniques (carton weighs approx 9kgs)
• Practice correct lifiting techniques when required to lift the door as per installation instructions.
Fall from ladder • Ensure ladder is the correct type for job.
• Ensure ladder is on flat firm ground that will take the weight without the legs sinking.
• Ensure user has 3 points of contact while on ladder.
Garage Door • Examine the door installation, in particular cables, springs and mountings for signs of wear,
damage and imbalance.
• The garage door must be well balanced. Sticking or binding doors must be repaired by a
qualified garage door installer prior to installation of the opener.
• Remove or disengage all garage door locks and mechanisms prior to installation of the
opener.
Entanglement • Never plug in and operate opener prior to installation.
• Keep hands and loose clothing clear of door and guides at all times.
Entrapment under • DO NOT operate the opener unless the garage door is in full view and free from objects
operating door such as cars and children/people. Make sure that the door has finished moving before
entering or leaving the garage
In order for the opener to sense an object obstructing the door way, some force must be
•
exerted on the object. As a result the object, door and/or person may suffer minor damage
or injury.
• Ensure the garage door is in good working order by undertaking regular servicing.
• Install the optional wall transmitter in a location where the garage door is visible, but out
of the reach of children at a height of at least 1.5m.
• Safety beams must be installed if the closing force at the bottom edge of the door exceeds
400N (40kg)
34-36 Marigold St, Revesby, NSW, Australia
P: 13 62 63 W: www.bnd.com.au
ABN 25 010 473 971
PanelPro
Overhead Garage Door Opener Installation Instructions
5
6
8
7
11
9
3
10
12
13
14
2

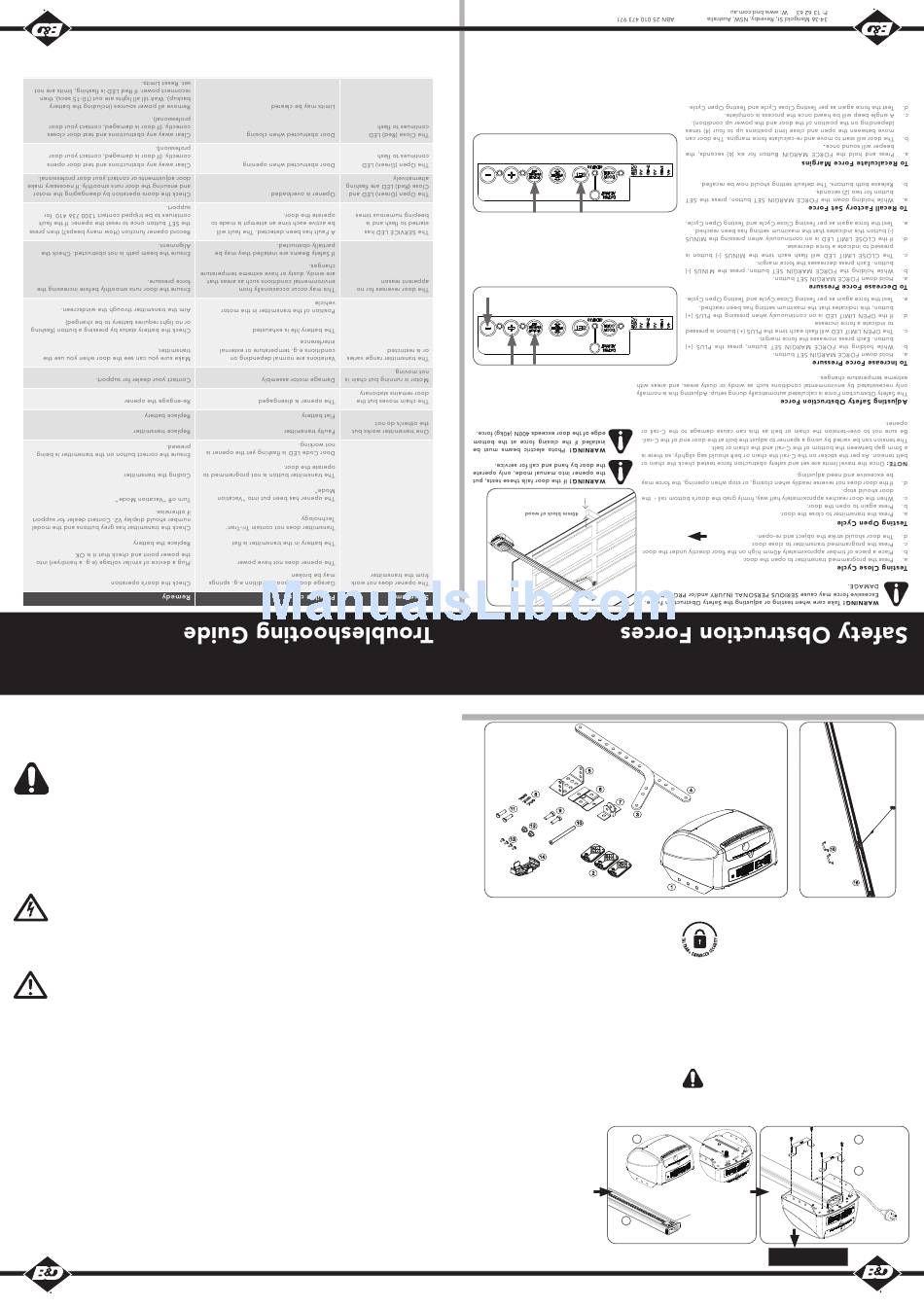

Kit Contents

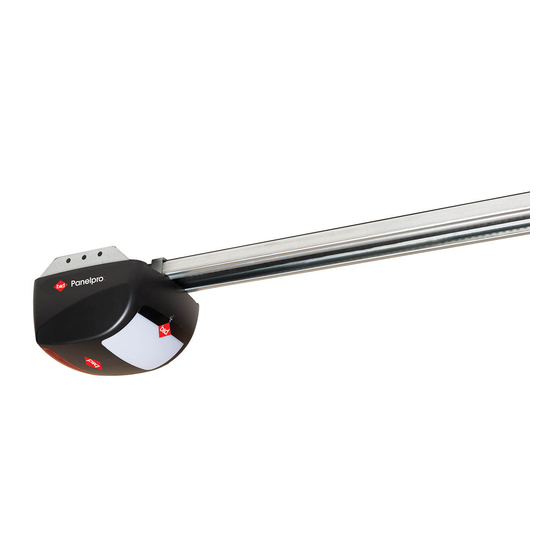

1. 1 x PanelPro TM drive unit
2. 3 x Transmitters with batteries
3. 1 x Bent arm door attachment
4. 1 x Straight arm door attachment
5. 1 x Wall bracket TS01
6. 1 x Door bracket Locator
7. 1 x Door bracket
8. 3 x Pin Snap SSP 8 ZNU 31080
9. 2 x Hex Head screw M8x25
10. 1 x Pin 0890
11. 2 x Clevis Pin 0829
12. 2 x Hex Serration flange nut M8
13. 4 x Hex flange screw taptite 'S' M4 x 10
14. 1 x Wall/Visor Clip
PLUS
15. 2 x Track Bracket
16. 1 x Pre-Assembled Single Piece C-Rail
Head Room
The minimum height required between the highest point
of the door's travel and the ceiling is 25mm.
Quick Install Guide
C-Rail Attachment
1
Single piece
C-Rails are pre-tensioned during
manufacturing for transport. Some
extra tension may be required after
installation.
If the C-Rail needs to be shortened
or lenghtened (using the extension
kit) ensure these modifications are
16
made to the drive unit end.
To prevent scratching the unit after
attaching the C-Rail, place the drive
unit back in its packing box.
Doc #: 161015_00
Part #: 79120
Released: 19/03/14
TM
4
15
1
Important Note:
Only Tri-Tran Technology Transmitters
+
and Keypads are compatible with this
PanelPro product.
Tools Required
• Ladder
• Door Stand
• Adjustable Wrench
• Socket set
• Drill
• Screwdrivers
• Marker Pen
Power Supply
Properly earthed 3 pin single -phase power is required.
WARNING! A portable power generator is
not recommended due to spikes, surges and
fluctuations in the supply.
Hex flange screw taptite
Shaft
'S' M4 x 10
Locate shaft into
sprocket
Open to Determine your
Door Type
16
13
Track bracket (x2)
15
