- Page 1 TELIKOU Intercom System UTS-200 Two-Channel Speaker Station Instruction Manual © 2006 TELIKOU Systems All Rights Reserved...
- Page 2 Thank you for choosing TELIKOU intercom product. The UTS-200 Two-channel main station is a powerful, yet user friendly unit that server as a heart of a TELIKOU intercom system. We recommend you read through this manual to better understand the function of UTS-200.

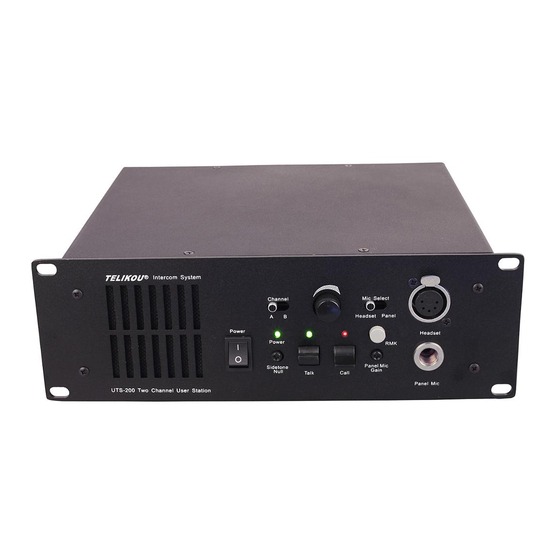

- Page 3 TELIKOU UTS-200 Two-Channel Speaker Station Front Panel 1. Headset connector 4-pin XLR Male or 5-pin XLR female connector. EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm The wiring of headset to be as follow: Pin 1--Mic common Pin 2--Mic hot...
- Page 4 Power switch is turned on, Power LED (10) light. 10. Power LED This green LED lights on when the UTS-200 is receiving AC power. This LED will flash when the UTS-200 senses a short or overload on the circuit. When the fault is removed, the power supply will automatically reset and LED 11.
- Page 5 TELIKOU UTS-200 Two-Channel Speaker Station 2 Turn the level control to a comfortable level. 3 Speak into the microphone while turning the sidetone null control slowly back and forth. There should be a point where your voice (and any accompanying acoustic feedback) is the lowest.
- Page 6 OFF position according to the actual connection of intercom line. 17. Online Connector on Channel A It is used for Online connection among TELIKOU working main stations. The pinout of Online Connector is as follows: Pin 1 --- Common (Shield)
- Page 7 18. Connect To Switch with Channel A To achieve Mic on the belt packs can be turned off by RMK function. All the TELIKOU main stations in the system must be connected by the Online connector which is on the rear panel.
- Page 8 V. Troubleshooting Problem: Power LED wink Cause 1: Direct short on the intercom channel Solution 1: Remove all the intercom cables from UTS-200. Check each channel one by one, until find the short channel. Cause 2: Overload Solution 2: Decrease the amount of remote stations.
- Page 9 Solution 2: Adjust. Refer to the procedure in the Front Panel section of this manual. Cause 3: Channel unterminated. Solution 3: Set the UTS-200 termination switch to the ON position. Cause 4: A headset cord is too long or jointing quality .
- Page 10 ‘INTERCOM LINE’ position. Solution 2: Check Connect To switch, set it to the proper position. Cause 3: Some main stations are not TELIKOU. So these main stations do not have Online connector. The connections among these main stations are with Intercom Line connector.
- Page 11 TELIKOU UTS-200 Two-Channel Speaker Station Adjustable range: -40dB, 32dB EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm CONNECTOR: Panel Mic connector: ø6.35mm/XLR-3F Pin 1 -- Mic common Pin 2 -- Mic hot Pin 3 -- parallel connected with Pin 2 internal...
