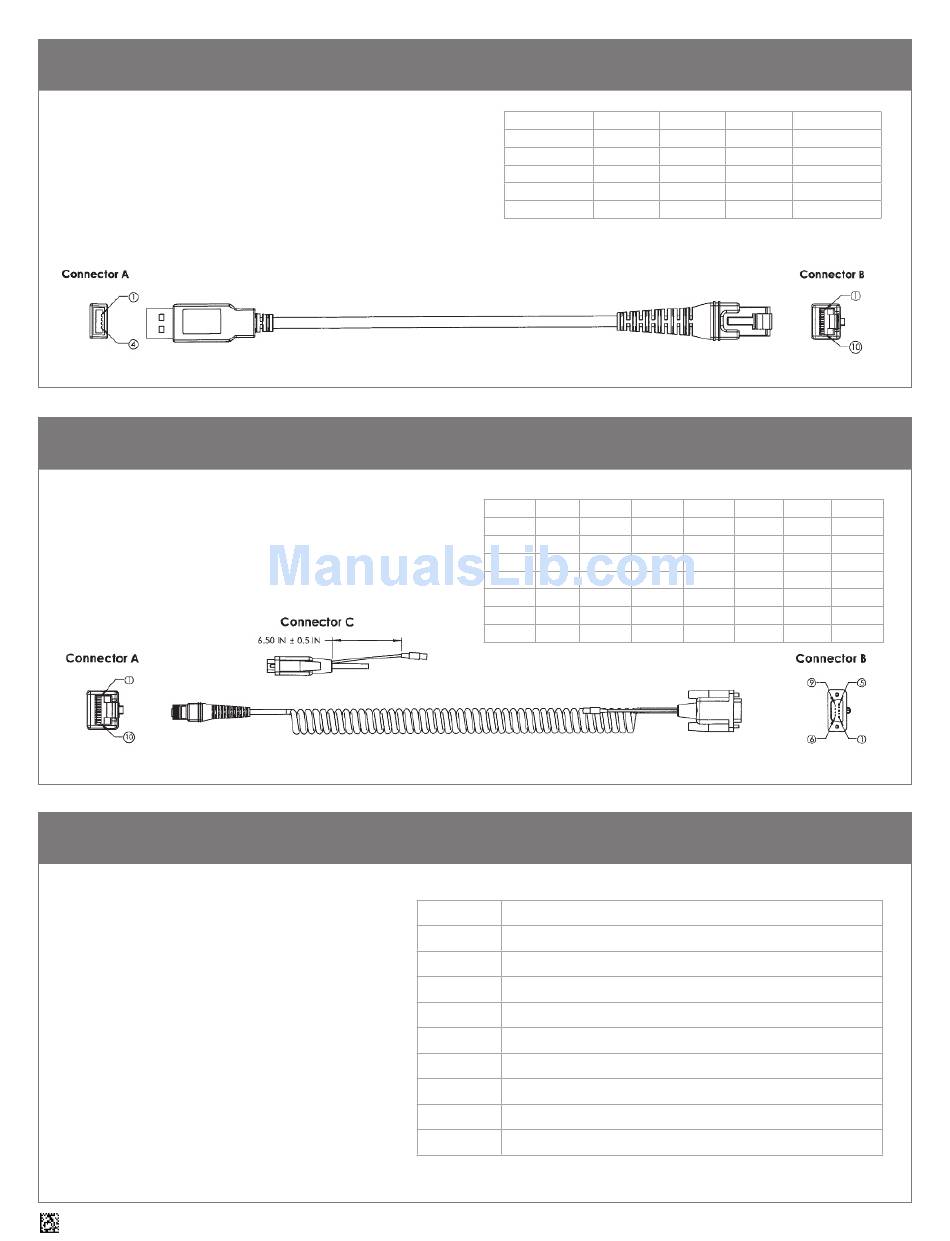

13.0 - USB Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A

14.0 - RS232 Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.

15.0 - Reader Pinouts

The connector on the CR900FD is an RJ-50
(10P-10C). The pinouts are as follows:
D020360_01_CR900FD_EMEA_User_Manual
CONNECTOR A
1
2
3
4
SHELL
CONN A NAME WIRE
1 VIN 24A WG
4 TX 28A WG BROWN
5 RTS 28A WG ORANGE
6 RX 28A WG YELLOW
7 CTS 28A WG
10 GND 24A WG
SHIELD - SHIELD
Pin 1 +VIN (5v)
Pin 2 USB_DM
Pin 3 USB_DP
Pin 4 RS232 TX (output from reader)
Pin 5 RS232 RTS (output from reader)
Pin 6 RS232 RX (input to reader)
Pin 7 RS232 CTS (input to reader)
Pin 8 External Trigger (active low input to reader)
Pin 9 N/C
Pin 10 Ground
NAME WIRE COLOR
VIN 24A WG RED
DM 28A WG WHITE
DP 28A WG GREEN
GND 24A WG BLACK
- SHIELD BARE
CONNECTOR B
COLOR CONN B WIRE COLOR CONN C
RED 9 24A WG
2
8
3
GREEN 7
BLACK 5 24A WG BLACK
SHIELD
CONNECTOR B
1
2
3
10
SHELL
RED TIP
RING
9
