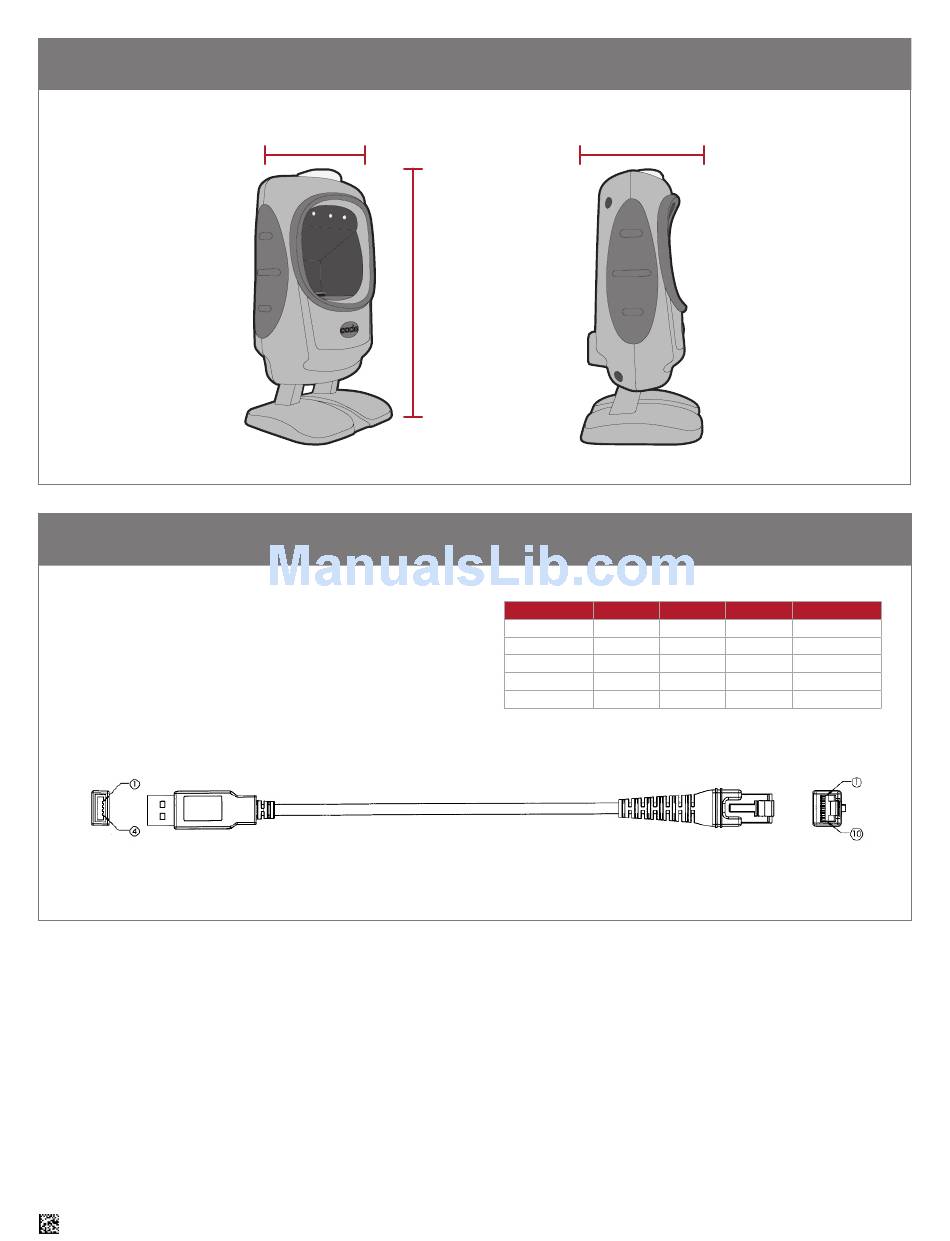

13.0 - CR5000 Overall Dimensions

14.0 - USB Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A
D021992_02 CR5000 User Manual
3.55"
(90.30 mm)
5.95"
(151.14 mm)
2.80"
(71.23 mm)
CONNECTOR A NAME WIRE
1 VIN 24AWG
2 DM 26AWG
3 DP 26AWG
4 GND 24AWG
SHELL - SHIELD
CONNECTOR B
COLOR CONNECTOR B
RED 1
WHITE 2
GREEN 3
BLACK 10
BARE SHELL
9
