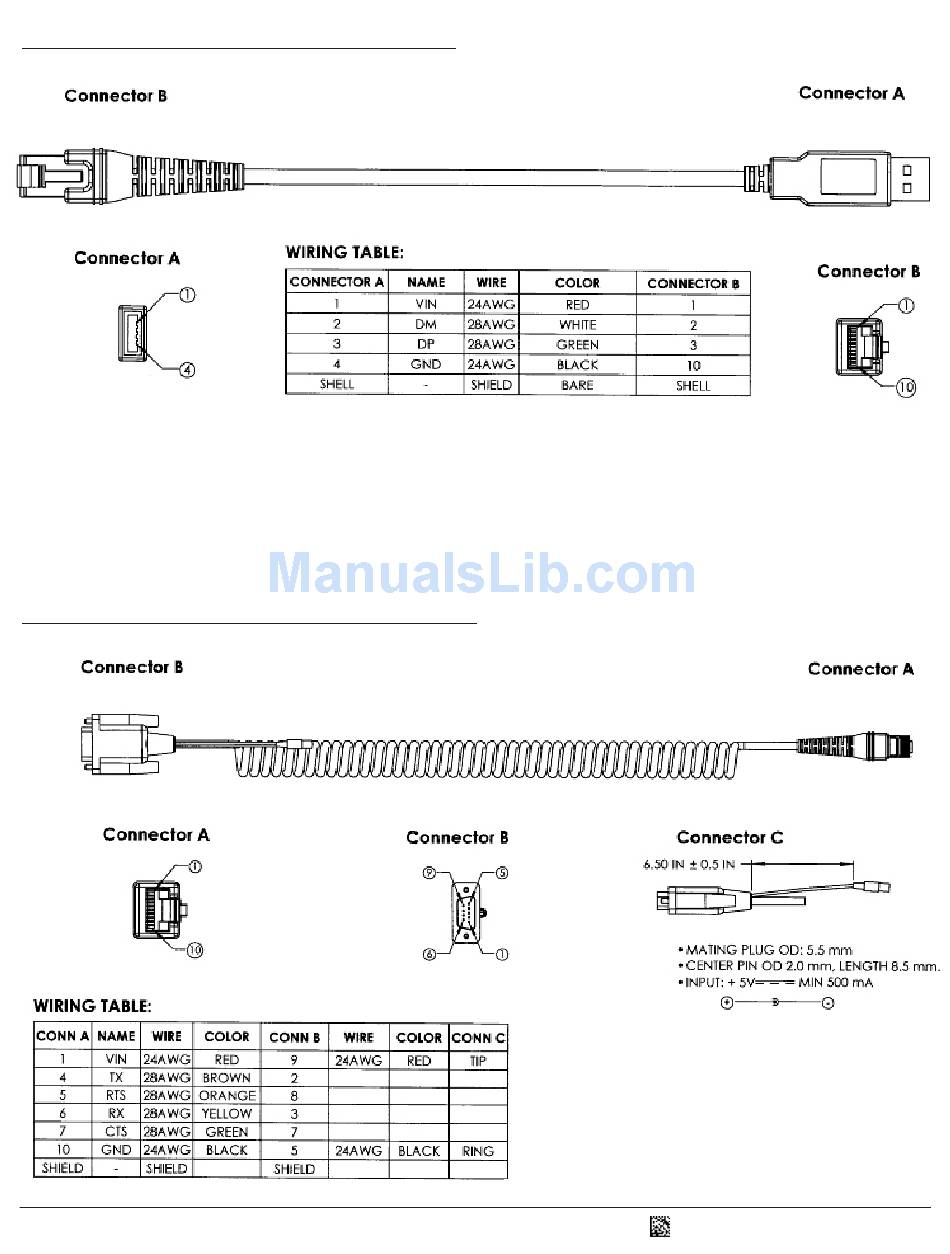

13.0 - USB Cable Example with Pinouts
NOTES
:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void manufacturer warranty.
14.0 - RS232 Cable Example with Pinouts
See Section 15.0 for complete reader pinouts descriptions.
See Section 15.0 for complete reader pinouts descriptions.
NOTES
:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void manufacturer
warranty.
C006819_03_CR1400_User_Manual
