Code CR900FD Quick Start Manual

Powering on the CR900FD
For USB Cable: plug the USB end of the Affinity® cable into a USB port on the host device.
After several seconds, the reader will beep twice and the LED will turn off to indicate the
CR900FD is ready for use.
For RS232 Cable: plug the power supply into the AC outlet, plug the power supply cord into
the barrel jack of the cable, and connect the RS232 connector to the appropriate serial port
on the host device. After several seconds, the reader will beep twice and the LED will turn off
to indicate the CR900FD is ready for use.

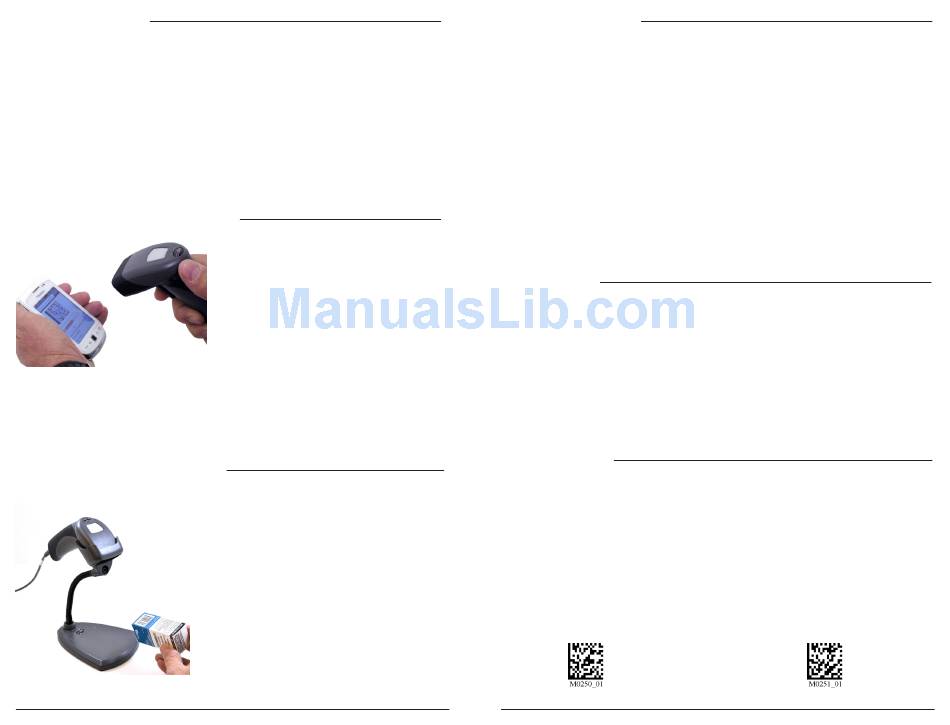

Using the CR900FD Out of a Universal Stand
Once the reader is at the optimal distance, the CR900FD will read the bar code (when the
trigger is pressed). The CR900FD will beep and flash a green LED to indicate a 'good read' has
occurred.
Using the CR900FD in a Universal Stand
2 www.codecorp.com
Press and hold the CR900FD trigger, the two
blue bars emitting from the reader are used for
targeting. Center the blue bars in the middle of
a bar code.
The optimal reading distance from reader to bar
code is approximately 4.0" (10 cm).
The CR900FD has a stand detection feature. By
default, when the CR900FD is placed in the stand,
the reader will automatically enter into motion
detection mode. When in this mode, simply place
a bar code in the scan field to activate the reader.
The CR900FD will beep and flash a green LED to
indicate a 'good read' has occurred.
When the CR900FD is removed from the stand,
the reader switches to manual mode and the
trigger must be pressed to read a bar code.
CR900FD Default Settings
The CR900FD, out of the box, will read the following 1D bar codes:
Codabar Code 128
Code 39 Interleaved 2 of 5
GS1 DataBar (RSS)
Code 93
To enable the following 1D bar codes, reference the CR900FD Configuration Guide available
at www.codecorp.com:
Code 11 Matrix 2 of 5
Code 32 Pharmacode
Hong Kong 2 of 5
Plessey
Note: a CR900FD will read Data Matrix configuration codes without a purchase of a license key.
Upgrade Options
The CR900FD can be upgraded to read 2D bar codes with the purchase of a license key. 2D
license keys can be purchased individually or as a package. Available licenses:
Aztec Code
PDF417/Micro PDF417/Composite Code
Data Matrix
QR Code/Micro QR
Han Xin
Package of all 2D bar codes listed
Visit www.codecorp.com for upgrading/license key information.
Configuration Codes
The CR900FD can be quickly and easily configured to meet the needs of different use cases.
Commonly used configuration codes have been included in the quickstart guide for your
convenience. For more configuration options refer to the CR900FD Configuration Guide
located at www.codecorp.com. For custom configuration options, please contact us at
support@codecorp.com.
To enable or disable cell phone reading mode, scan the appropriate code below.
Enable Cell Phone Reading Mode
www.codecorp.com
MSI Pessey
UPC/EAN/JAN
Straight 2 of 5
Telepen
Trioptic
Disable Cell Phone Reading Mode
3
