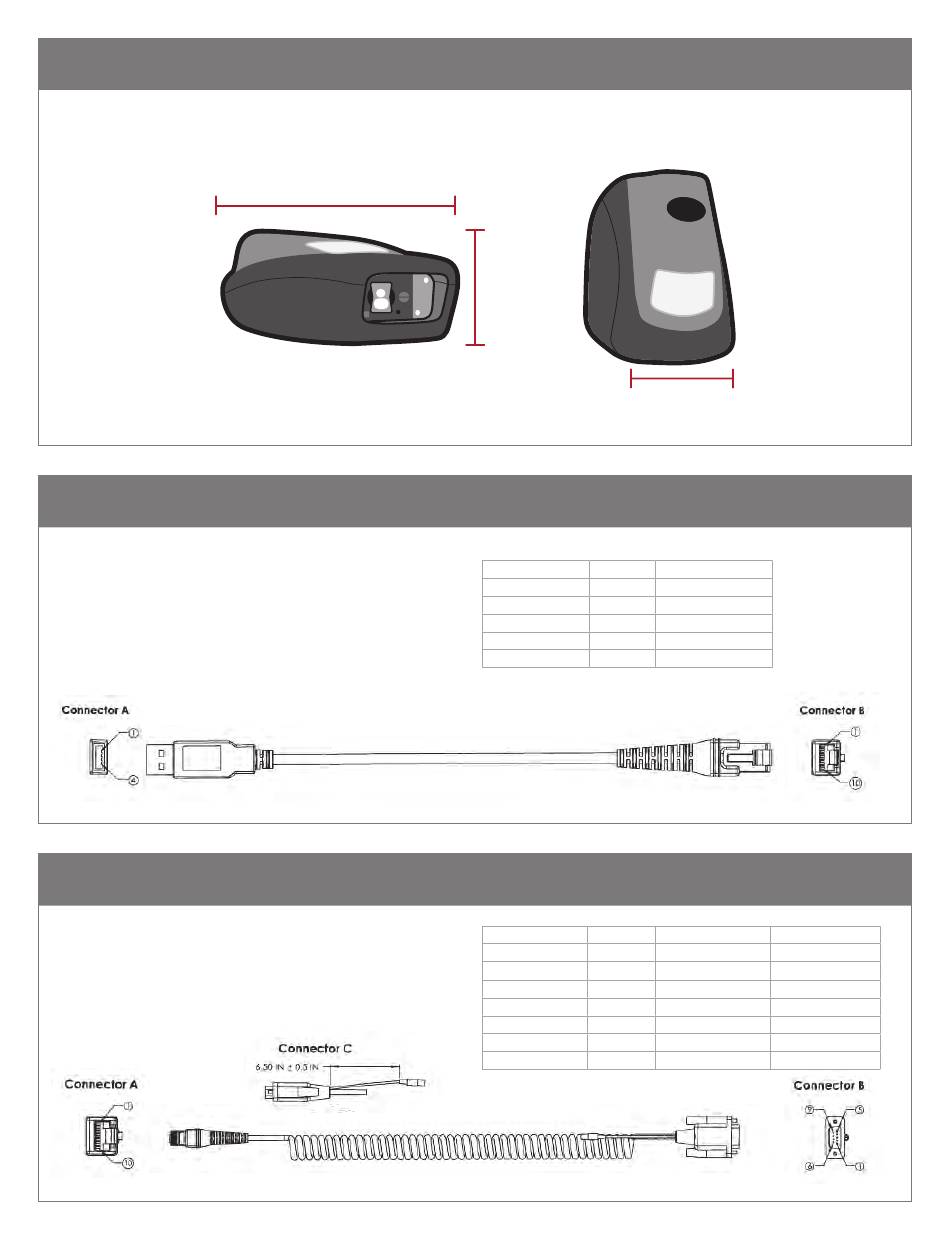

12.0 - CR1100 Overall Dimensions

13.0 - USB Cable Example with Pinouts

NOTES:
1. Maximum Voltage Tolerance = 5V +/- 10%.
2. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A

14.0 - RS232 Cable Example with Pinouts

NOTES:
1. Maximum Voltage Tolerance = 5V +/- 10%.
2. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
D032078 _02 CR1100 User Manual
67.5 mm
(2.7")
29.7 mm
(1.2")
52.5 mm
CONNECTOR A NAME
1 VIN
2 D-
3 D+
4 GND
SHELL SHIELD
CONNECTOR A NAME
1 VIN
4 TX
5 RTS
6 RX
7 CTS
10 GND
N/C SHIELD
(2.1")
CONNECTOR B
9
2
3
10
N/C
CONNECTOR B
CONNECTOR B CONNECTOR C
9
TIP
2
8
3
7
5 RING
SHELL
9
