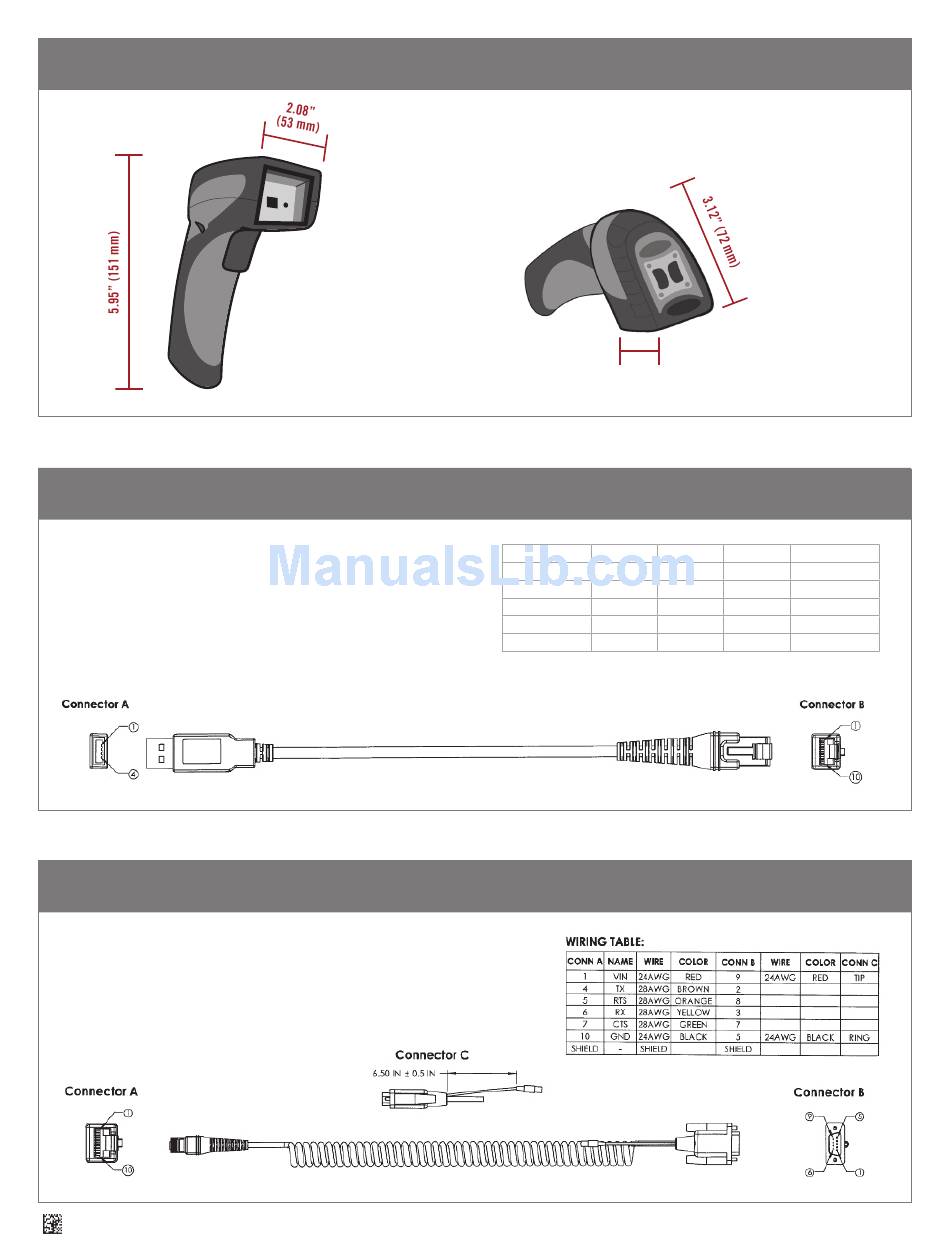

13.0 - CR6000 Overall Dimensions

14.0 - USB Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A

15.0 - RS232 Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
D019548_02_CR6000_User_Manual
1.82"
(46 mm)
CONNECTOR A NAME WIRE
1 VIN 24A WG
2 DM 28A WG
3 DP 28A WG
4 GND 24A WG
SHELL - SHIELD
CONNECTOR B
COLOR CONNECTOR B
RED 1
WHITE 2
GREEN 3
BLACK 10
BARE SHELL
9
