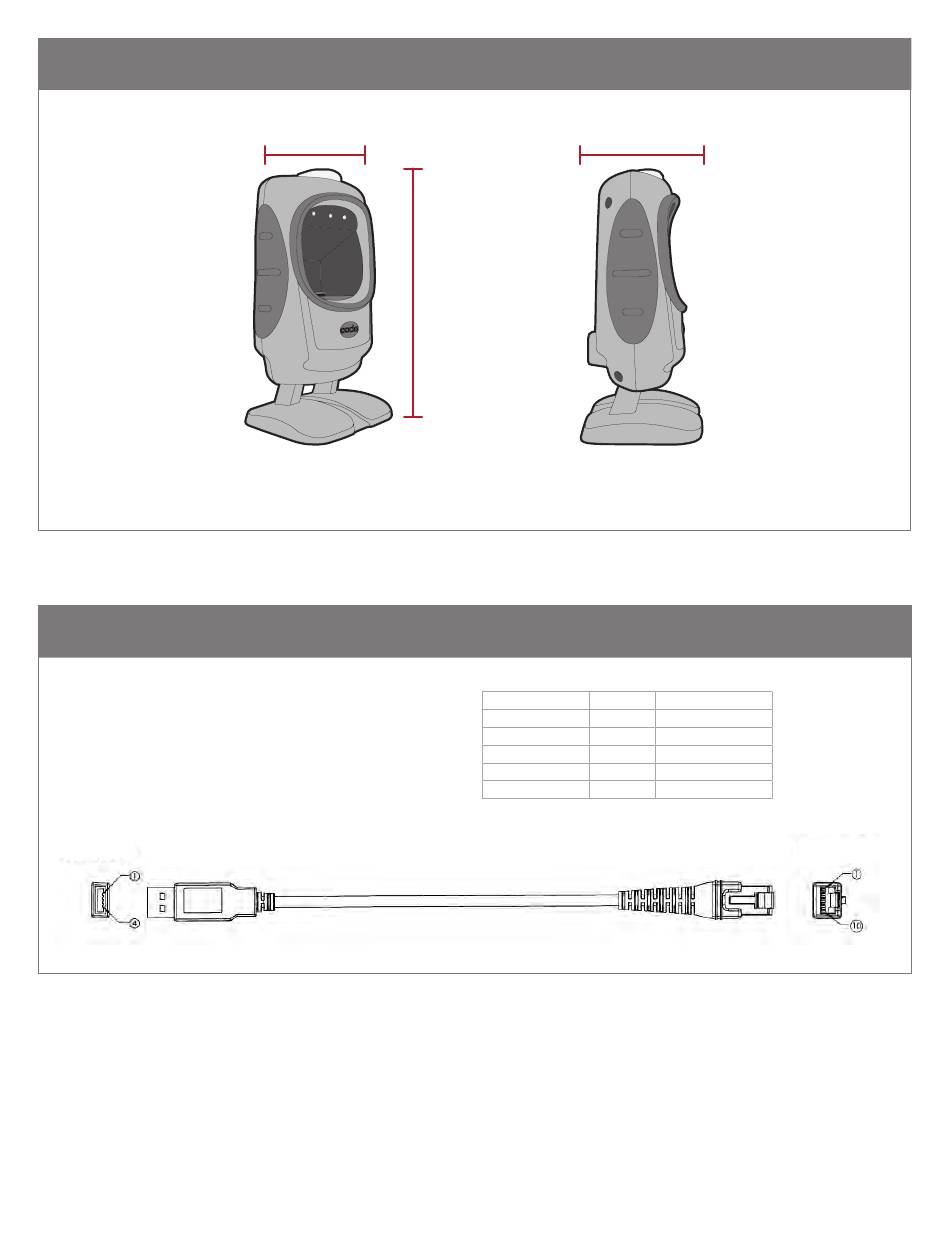

13.0 - CR5200 Overall Dimensions

14.0 - USB Cable Example with Pinouts

NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A
D041878 CR5200 User Manual
3.55"
(90.30 mm)
5.95"
(151.14 mm)
2.80"
(71.23 mm)
CONNECTOR A NAME CONNECTOR B
1 VIN
2 D-
3 D+
4 GND
SHELL SHIELD
CONNECTOR B
1
2
3
10
N/C
10
