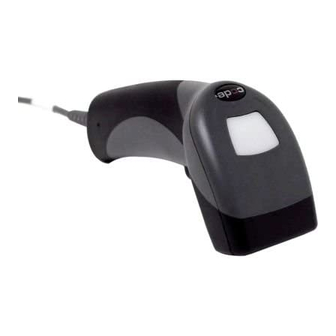

Code CR900FD User Manual
Hide thumbs
Also See for CR900FD:
- Configuration manual (106 pages) ,
- Quick start manual (2 pages) ,
- Configuration manual (11 pages)
Related Manuals for Code CR900FD
Summary of Contents for Code CR900FD

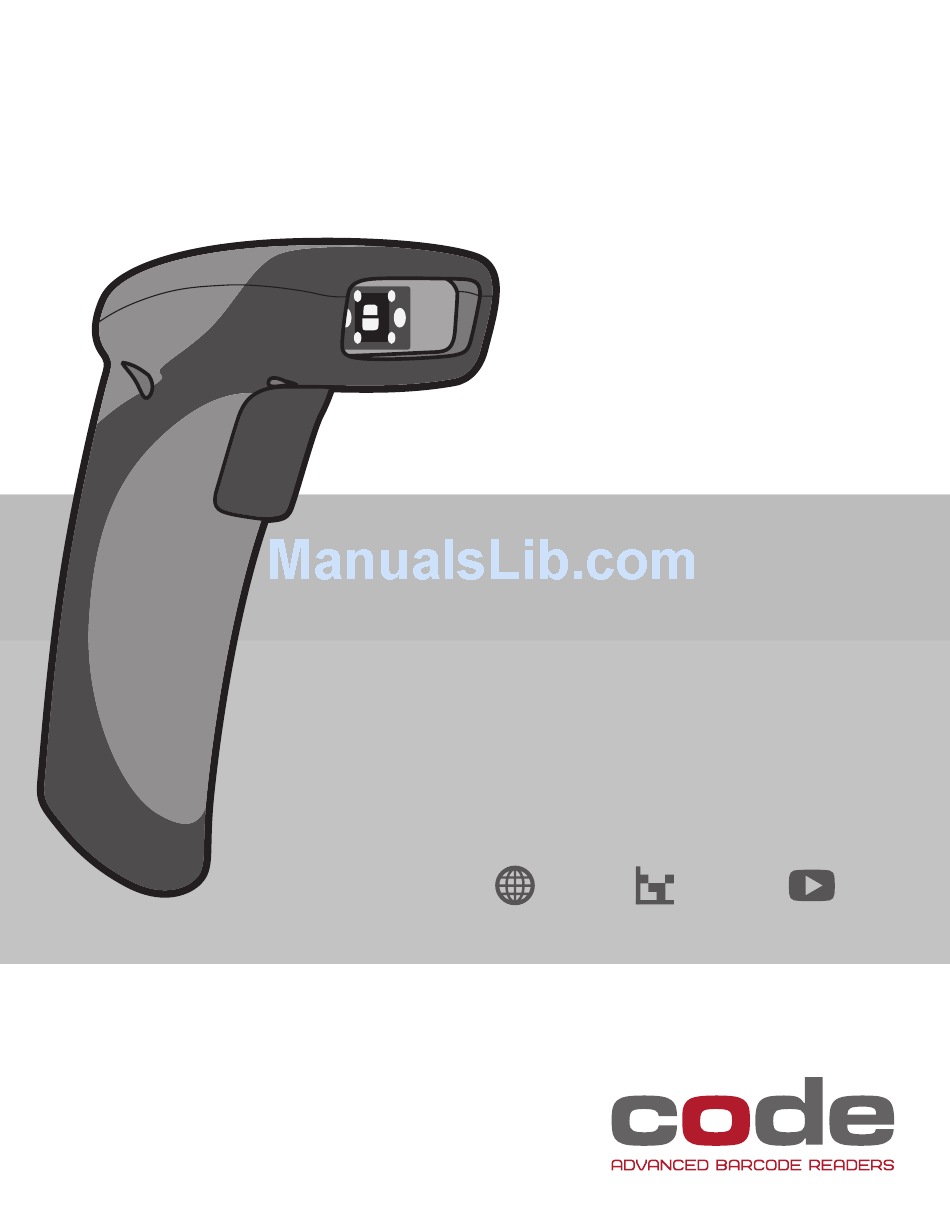

- Page 1 USER MANUAL EMEA: ENGLISH CR900FD MANUAL VERSION 01 RELEASE DATE: JULY 2014 www.codecorp.com Configuration Guide YouTube.com/codecorporation...
-
Page 2: Statement Of Agency Compliance
The software described in this manual may only be used in accordance with the terms of its license agreement. No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems. -
Page 3: Table Of Contents
2.0 - Attaching and Detaching a Cable ..............5 3.0 - Set Up ....................... 5 4.0 - Using a CR900FD Out of a Stand ..............6 5.0 - Using a CR900FD In a Stand ..............6 6.0 - Reading Ranges ..................6 7.0 - Reader Feedback .................. -
Page 4: Included Items
1.0 - Included if Ordered CR900FD USB 2.0 Cable RS232 Cable 5VDC Power Supply (Model #: CR921) D020360_01_CR900FD_EMEA_User_Manual... -
Page 5: Attaching And Detaching A Cable
2.0 - Attaching and Detaching a Cable 3.0 - Set Up RS232 Plug in Wait 10 seconds 10 Sec. LED will flash Reader will beep D020360_01_CR900FD_EMEA_User_Manual... -
Page 6: Using A Cr900Fd Out Of A Stand
Note: All samples were high quality barcodes and were read along a physical center line at a 10° angle. Default AGC settings were used. *Data Matrix is used for configuration barcodes for the CR900FD, however additional licensing is required to enable full Data Matrix reading. -
Page 7: Reader Feedback
9.0 - Symbologies Defaulted Off The following are symbologies that have a default of ON. Code barcode readers can read a number of barcode symbologies To turn symbologies on or off, scan the symbology barcodes that are not enabled by default. To turn symbologies on or... -
Page 8: Reader Id & Firmware Version
Note: Code will periodically release new firmware for CR900FD readers. For information on latest firmware visit our website at http://eu.codecorp.com/codesupport.php 12.0 - CR900FD Overall Dimensions 2.75" (70 mm) 5.5" (140 mm) 2.0"... -
Page 9: Usb Cable Example With Pinouts
24A WG BLACK 24A WG BLACK RING SHIELD SHIELD SHIELD 15.0 - Reader Pinouts The connector on the CR900FD is an RJ-50 Pin 1 +VIN (5v) (10P-10C). The pinouts are as follows: Pin 2 USB_DM Pin 3 USB_DP Pin 4... -
Page 10: Cr900Fd Maintenance
Cleaning the CR900FD Window CR900FD window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR900FD uses CMOS technology that is much like a digital camera. A dirty window may stop the CR900FD from reading barcodes. -
Page 11: Warranty
Code’s maximum liability related to its performance, or failure to perform, as described herein shall be limited to the amount paid by Customer for the Code product that is subject to the claim. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages.
