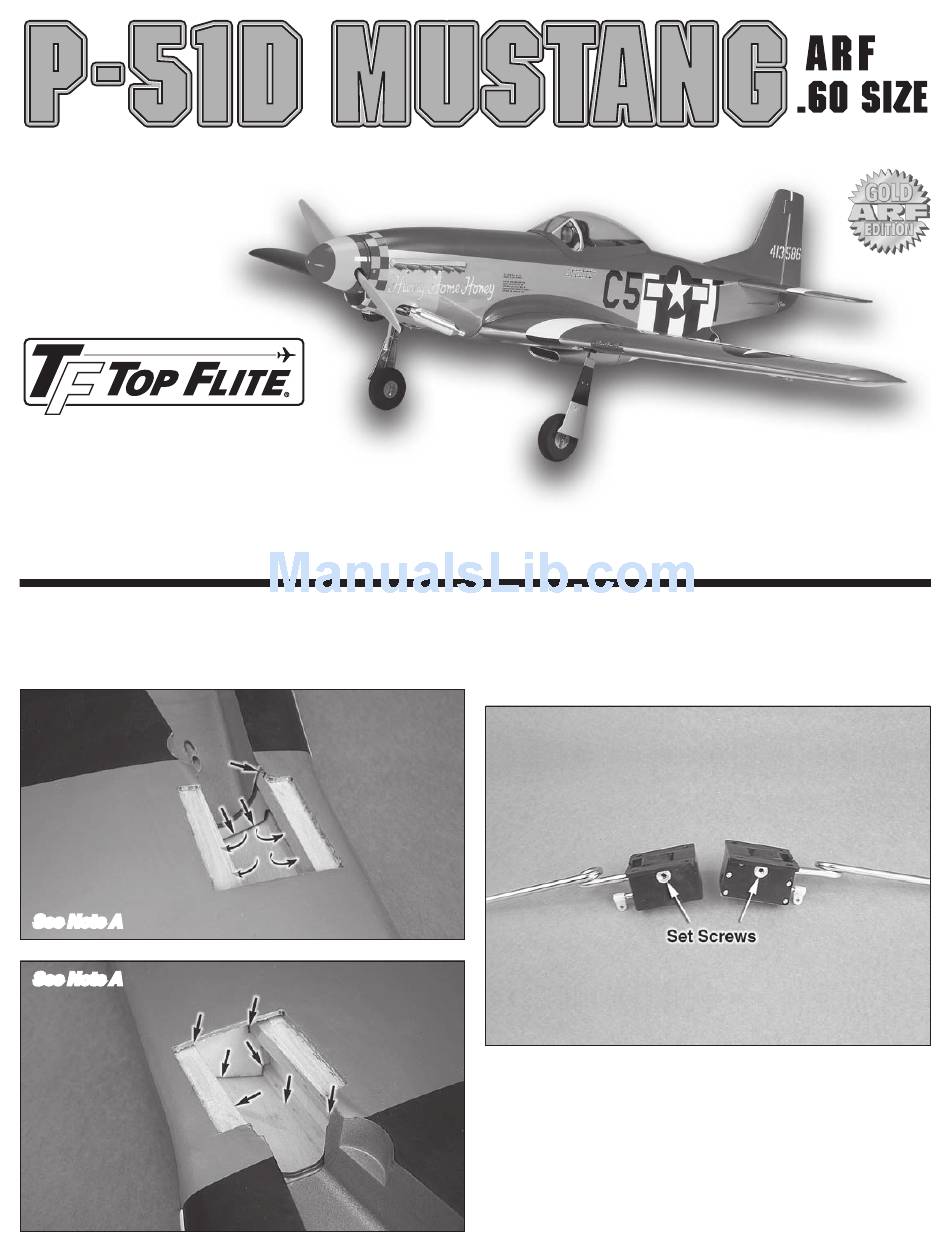

INSTRUCTION MANUAL ADDENDUM
© Copyright 2009
IMPORTANT UPGRADE
Note: This addendum replaces all previous addenda. At Top Flite we strive to produce the best airplanes on the market.
Before we started shipping the P-51 Mustang .60 ARF we found that a couple of the parts did not meet our high quality
standards. We have included the new upgraded parts with this addendum.
On page 13, INSTALL THE RETRACT SERVO
Before proceeding with installing the retract servo, the
retracts will need to be installed.
See Note A
See Note A
Note A: First, it is necessary to fuel proof and fortify the
retract mounting area, apply a generous amount of 30
minute epoxy to the areas shown. Allow the epoxy to cure
before moving on to the next step.
o
1. Use a 2mm hex wrench to remove the four set screws
(two per side) in the retract pivot. The first set on each side
secures the landing gear wire in the retract pivot. The second
set screw on each side locks the first set screw in the retract
pivot. Apply a drop of threadlocker to the threads of the set
screws. Reinstall the set screws making sure that they tighten
on the flats on the landing gear wires. Be sure to assemble
a left and right retract.
