Intelix DIGI-HD60 Installation Manual page 2

The Intelix DIGI-HD60 extends HDMI over a single cable by incorporating HDBaseT technology. The
DIGI-HD60 supports a 1080p video signal including multichannel audio up to 60m, as well as 3D
and 4K x 2K signals up to 35m. Built-in surge protection and diagnostic LEDs ensure hassle-free and
robust installations. Flexible power design allows the units to be powered at either the TX or RX end,
and only one power supply is required. The power supply (PS-24D-25) is sold separately.
The DIGI-HD60 series extenders are compatible with all Intelix HDBaseT product offerings and any
product that meets the HDBaseT specifications.

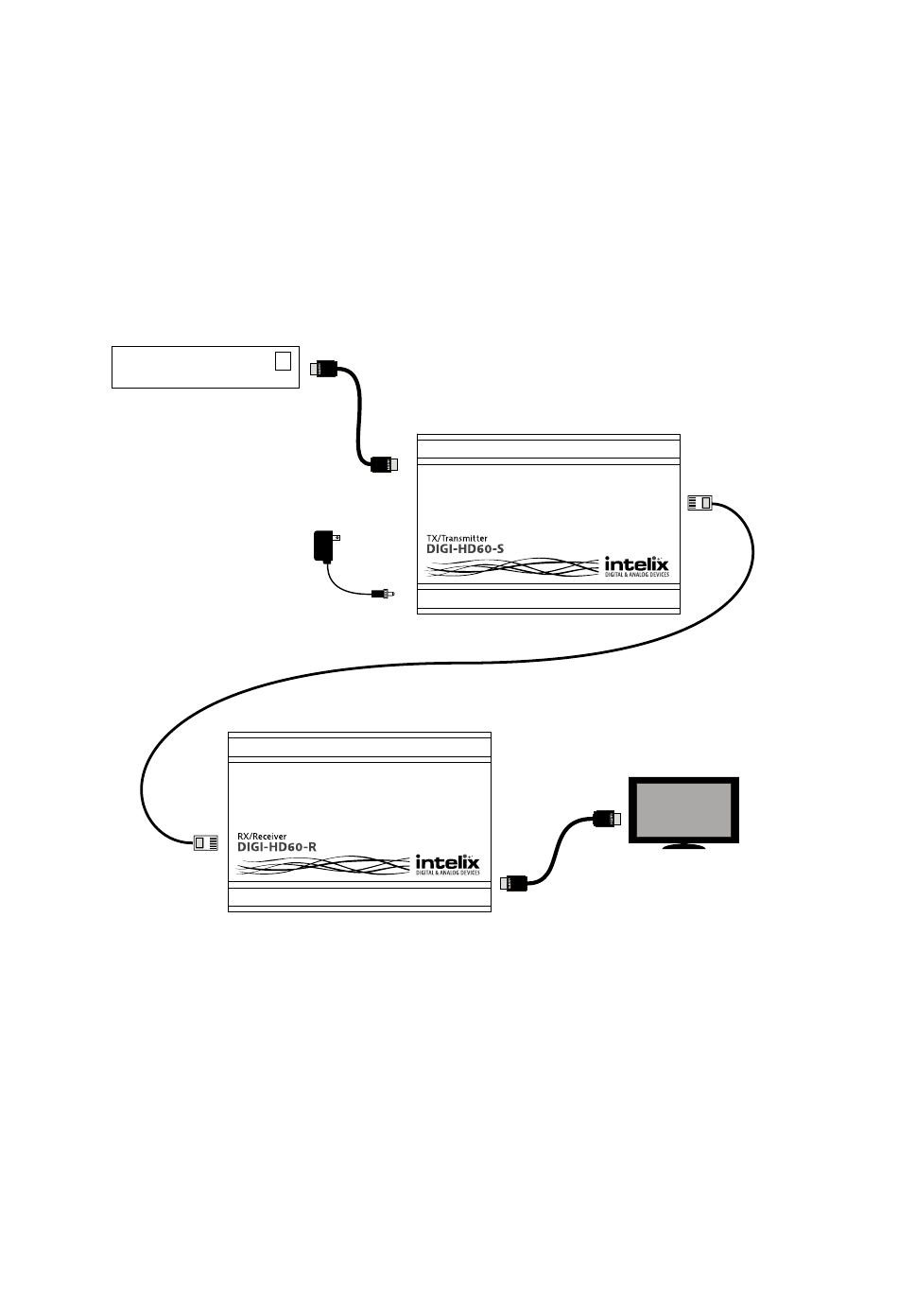

Example Diagram
HD Source
Up to 60m (196 ft) of shielded
Cat 5e or greater cable.
* Power supply (PS-24D-25) can be connected on either end and is sold separately.
Diagnostic LEDs:
The DIGI-HD60 provides two LEDs to indicate the current operating status and to assist
troubleshooting an installation.
Power: Solid, the DIGI-HD60 extender is receiving power from the power supply or from the remote
extender via shielded Category 5e or greater cabling.
Link: Solid, the two DIGI-HD60 extenders are communicating via shielded Category 5e or greater
cabling.
*
