DIGI-HDUSB Installation Guide

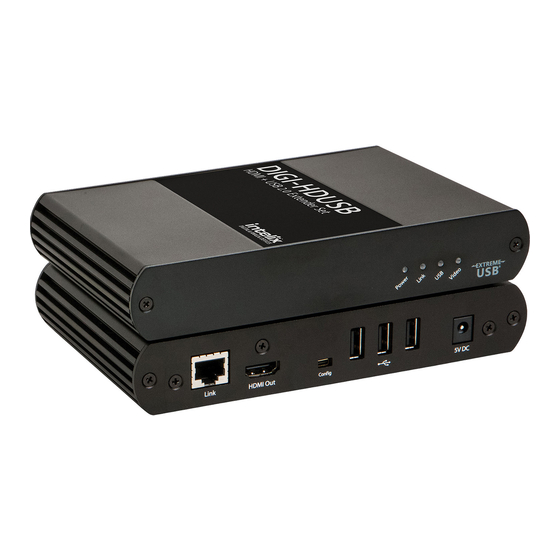

The Intelix DIGI-HDUSB extends HDMI and computer USB
2.0 signals up to 100m (330 ft) over twisted pair cabling. The
DIGI-HDUSB 3-port USB/Video extender system supports full
uncompressed HD video and USB 2.0 (up to 30Mbps) suitable for
video applications in conjunction with keyboards, mice, and USB
1.1 web cameras. The DIGI-HDUSB supports HDMI video features
such as 1080p, 4K, Deep Color and CEC/HDCP pass-through. The
DIGI-HDUSB supports both USB 1.1 and 2.0 devices.
Included Accessories
• (2) Power supplies
• USB Type A to USB Type B cable
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable
parts inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD),
all source and destination equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated
equipment. Doing so may damage the unit or any connected equipment. Ensure all
connected twisted pair cabling is straight-through (point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
• HDMI Cable
• Installation Guide
