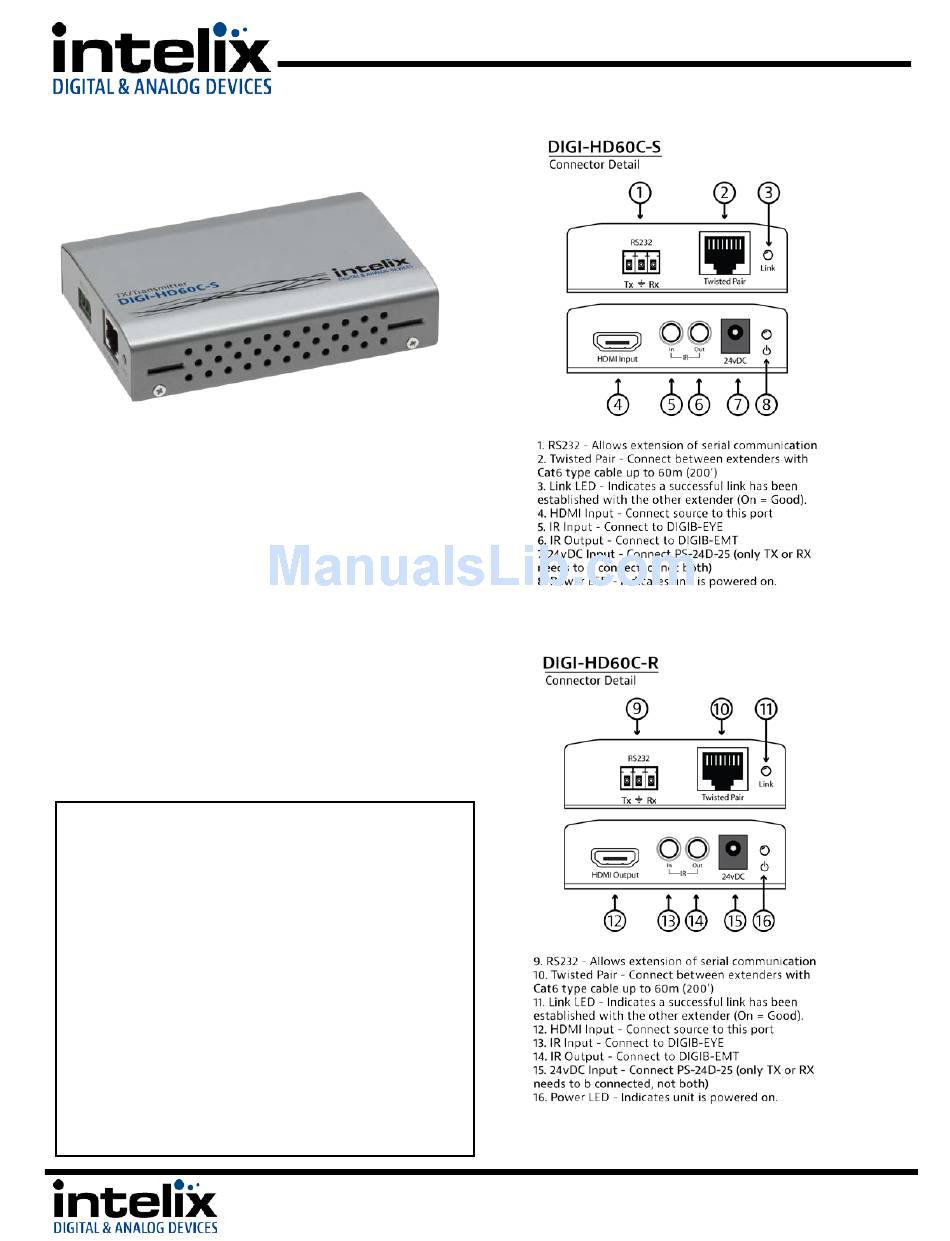

DIGI-HD60C Installation Guide
The Intelix DIGI-HD60C extends HDMI, IR, and RS232
over a single twisted pair cable. The DIGI-HD60C
supports a 1080p video signal up to 60m, as well as
3D and 4K x 2K signals up to 40m.
Built-in surge protection and diagnostic LEDs ensure
hassle-free and robust installations. Flexible power
design allows the units to be powered at either the
TX or RX end, and only one power supply is required.
The power supply (PS-24D-25) and IR accessories
(DIGIB-EMT and DIGIB-EYE) are sold separately.
The DIGI-HD60C-S and DIGI-HD60-R are designed for
use only with Intelix branded HDBaseT products.
The power circuit may not be compatible with other
HDBaseT devices and may damage them.
Instructions
1. Turn off power and disconnect the audio/video
equipment by following the manufacturer's
instructions.
2. Connect twisted pair cable between the transmitter

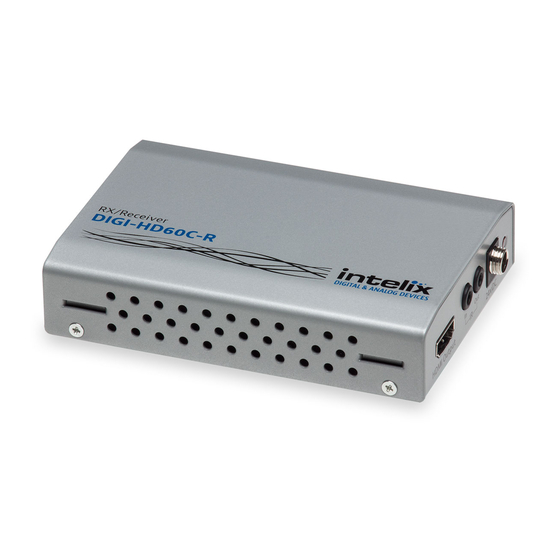

(DIGI-HD60C-S) and the receiver (DIGI-HD60C-R).
Ensure T568B straight-thru wiring.
3. Connect any IR or RS232 cables.
4. Connect HDMI cables between the display and the
receiver (DIGI-HD60C-R).
5. Connect HDMI cables between the source and the
transmitter (DIGI-HD60C-S).
6. Connect the power supply (PS-24D-25) to either the
transmitter or the receiver.
7. Power on attached audio/video devices.
