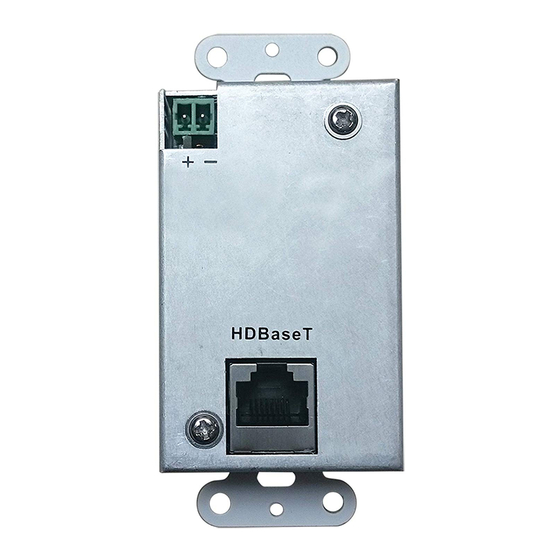

- Page 1 PDF provided by Conference Room AV Intelix DIGI-HD60-WP-S HDMI Ultra HD 4K Decora HDBaseT Wall Plate Transmitter, PoH...
- Page 2 DIGI-HD60-WP-S Installation Guide Important notice: • Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside the unit. Doing so will void your warranty. • To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination equipment must be powered off during installation.
-
Page 3: Diagnostic Led
The Intelix DIGI-HD60-WP-S extends HDMI over a single twisted pair cable by incorporating HDBaseT technology. The DIGI-HD60-WP-S supports HDCP Encrypted Content & DDC/EDID Transmission. DIGI-HD60-WP-S transmits Ultra HD (4K2K), HDTV Video Resolutions up to 720p/1080i/1080p@60Hz and WUXGA (1920X1200 @60Hz) at distances of 60m (196ft). Diagnostic LED ensure hassle-free and robust installations. -
Page 4: Troubleshooting Tips
Troubleshooting Tips Symptom Possible Solutions • Power indicator is off. • Ensure that active power is connected. • If power is provided by another HDBase-T device, verify twisted pair cable is securely connected to the HDBT port on back of wall plate. •... -
Page 5: Technical Specifications
Technical Specifications Input/Output Connections HDMI One (1) HDMI Type A Receptacle Twisted Pair One (1) 8P8C port (Shielded RJ45) Supported Audio and Video Maximum Video Compatibility at 60 m Deep Color 36/30/24 Bit at 1080p Maximum Video Compatibility at 35 m Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2;...
