User Manual

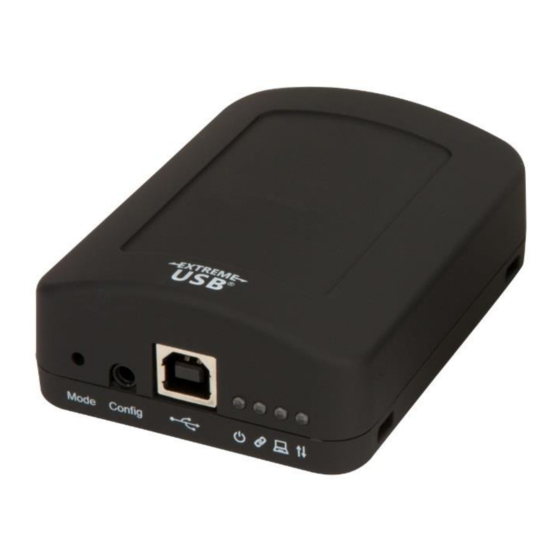

USB 2.0 DIGI‐USB2
1‐Port USB 2.0 100m (330 feet) Category
5e/6/6a/7 Extender Set with Flexible
Power.
Quick Start
Guide
Package Contents:
(1) DIGI‐USB2 Local Extender (LEX)
(1) DIGI‐USB2 Remote Extender (REX)
(1) USB 2.0 Cable
(1) AC Power Adapter
(1) US Power Cord
(1) Quick Start Guide
For full User's Manual scan this QR Code:
Before you get started, ensure all drivers
required for your remote USB device(s) are
installed.
Step 1:
Place the units where desired and connect the
solid core Category 5e/6/6a/7 extension link
cabling into the Link ports (RJ45) of the Local and
Remote extenders.
Step 2:
Connect the power adapter into the desired unit
– LEX or REX. Only one side is powered, do not
attempt to power both sides.
Step 3:
Connect the LEX into your computer using the
included USB 2.0 A‐B cable.
Step 4:
Attach your USB device to the REX.
11675 Ridgeline Drive
Colorado Springs, CO 80921
Phone: 800‐530‐8998
Technical Support x 2185
supportlibav@libav.com
Advertisement
Related Manuals for Intelix DIGI-USB2
Summary of Contents for Intelix DIGI-USB2
- Page 1 Before you get started, ensure all drivers USB 2.0 DIGI‐USB2 required for your remote USB device(s) are installed. 1‐Port USB 2.0 100m (330 feet) Category 5e/6/6a/7 Extender Set with Flexible Step 1: Power. Place the units where desired and connect the solid core Category 5e/6/6a/7 extension link cabling into the Link ports (RJ45) of the Local and Remote extenders. Quick Start Step 2: Connect the power adapter into the desired unit – LEX or REX. Only one side is powered, do not attempt to power both sides. Guide Package Contents: (1) DIGI‐USB2 Local Extender (LEX) (1) DIGI‐USB2 Remote Extender (REX) Step 3: ...
- Page 2 Technical Specifications I/O Connections USB Type A and Type B Twisted Pair Shielded RJ45 Female 24V DC Power 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel Maximum Distance CAT 5e/6/6a/7 100m (330’) Supported Signals USB 2.0 Up to 480 Mbps USB 1.1 Up to 12 Mbps Chassis and Environmental Enclosure Black ABS with Rubberized coating Dimensions 87.5mm x 65mm x 30mm (3.4 in. x 2.6 in. x 1.2 in.) Shipping Weight 0.45kg (1 lbs.) Operating Temperature 0° to +50° C (+32° to +122° F) Operating Humidity 20% to 80%, Non‐condensing Storage Temperature ‐20° to +70° C (‐4° to +158° F) Storage Humidity 10% to 90%, Non‐condensing Power, EMC, and Regulatory Power to USB Devices 1000mA Maximum Power Consumption 5.0 watts Power Supply 24VDC 1A Regulatory FCC (Class A), CE (Class A), RoHS2 (CE), Flammability V‐0 Other ...
