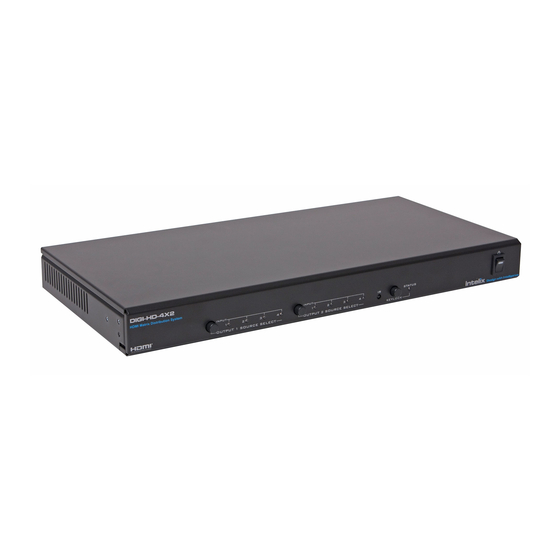

Intelix DIGI-HDMI-4X2 Update Instructions

DIGI‐HDMI‐4X2 & DIGI‐HDMI‐4X4 V.2 Single UTP Extender Update Instructions

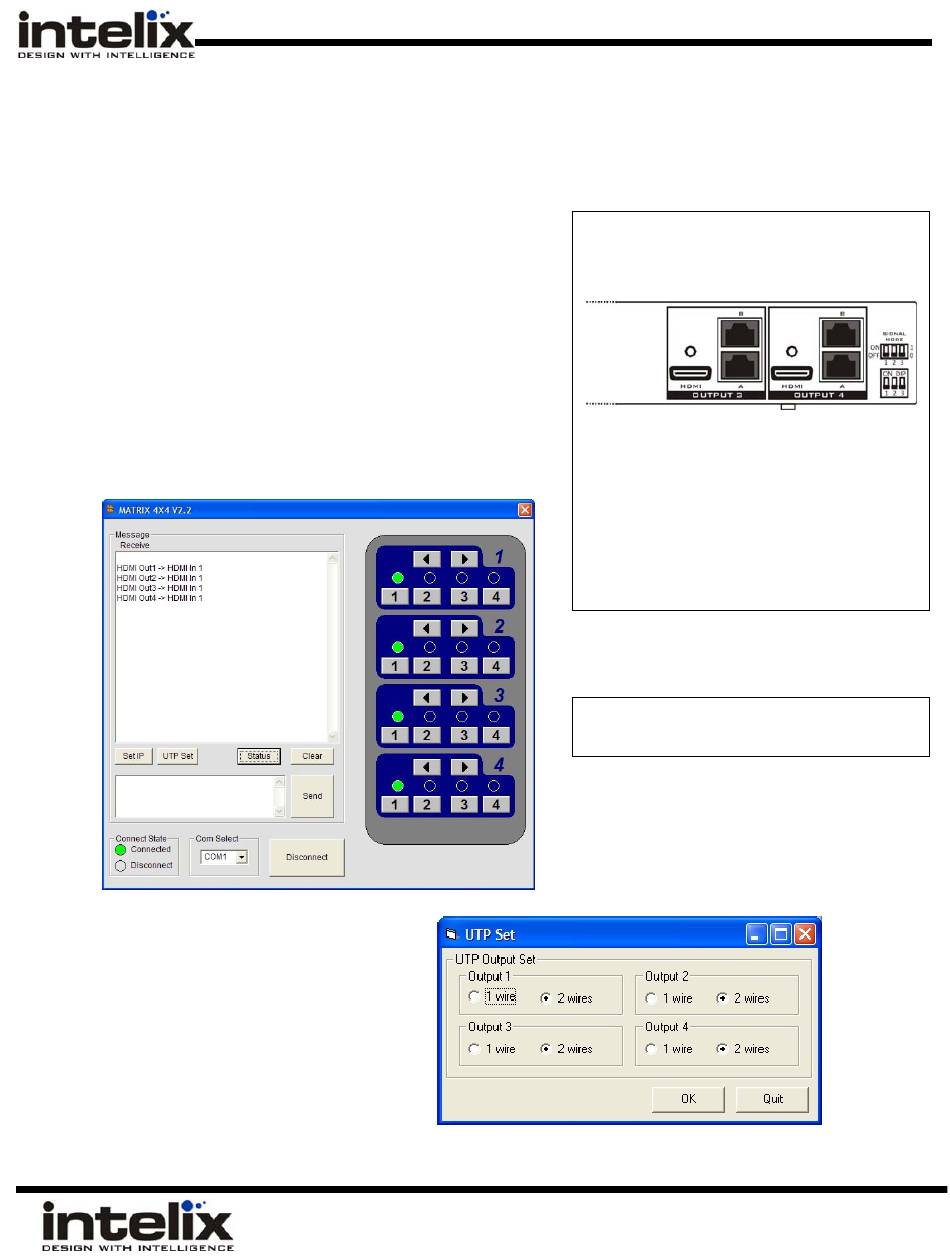

Option 1: Toggling Single UTP Mode through Intelix Software
Different modes of operation are toggled through Intelix COMCTL
software. Please visit Intelix's online technical library to download the
latest version of the software.
1. Download and install COMCTL software on your computer.
2. Connect your computer to the matrix using a serial or cross‐
over Ethernet cable.
3. Launch the utility and verify you are connected to the matrix.
A successful connection will illuminate the Connected icon in
the Connected State box.
4. Select the UTP Set button.
5. Select which outputs you wish to toggle.
6. Select OK to enable the changes.
7. Select Quit to exit the window.
DIGI‐HDMI‐4X2 & DIGI‐HDMI‐4X4 V.2 Single UTP Extender Update Instructions
Intelix Technical Bulletin:
Rev. 1008
2222 Pleasant View Road
Suite #1
Middleton, WI 53562
How do I know if this update applies to me?
Version 2 HDMI matrix switchers feature red
DIP switches on the rear panel of the unit.
Who should do this update?
This update applies to users desiring to use
single twisted pair receivers (DIGI‐HD‐UHR2‐R)
with Version 2 matrix switchers.
Intelix's Online Technical Library Link
www.intelix.com/tech_library/software.htm.
