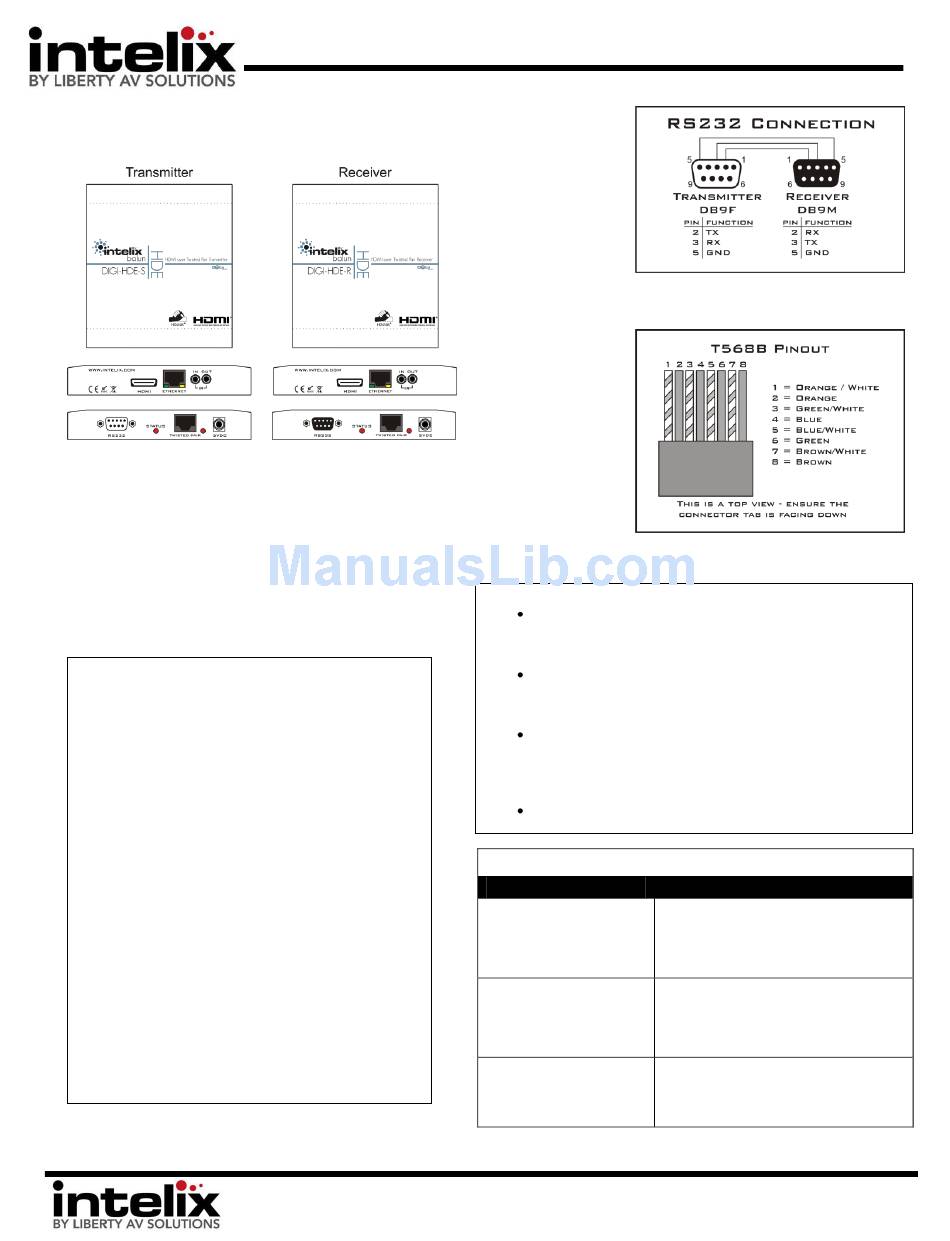

Intelix DIGI-HDE Installation Manual

DIGI-HDE Installation Manual

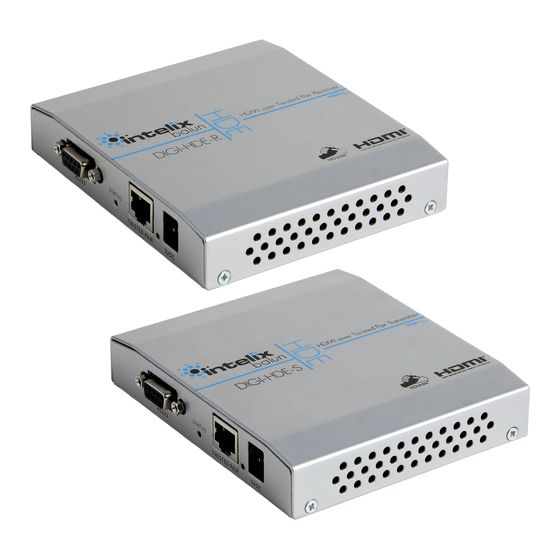

The Intelix DIGI-HDE extends HDMI, Ethernet, bi-
directional IR and bi-directional RS232 over a single
twisted pair cable. The DIGI-HDE
and 3D video up to 100m.
Built-in surge protection and diagnostic LEDs ensure
hassle-free and robust installations. The DIGI-HDE
incorporates HDBaseT technology.
Instructions
1. Turn off power
audio/video equipment by following the
manufacturer's instructions.
2. Connect twisted pair cable between the
transmitter (DIGI-HDE-S) and the receiver
(DIGI-HDE-R). (ensure T568B straight-thru
wiring).
3. Connect required
(IR/RS232/Ethernet)
4. Connect HDMI cables between the display
and the receiver (DIGI-HDE-R).
5. Connect HDMI cables between the source
and the transmitter (DIGI-HDE-S).
6. Connect the included power supplies to the
transmitter and receiver.
7. Power on attached audio/video devices.
supports 1080p, 2k, 4k,
and disconnect the
control cables.
8001 Terrace Ave.
Suite #201
Middleton, WI 53562
Serial
Communicaton
Wiring - RS232
connection
between send
and receive is
straight-
through.
Twisted Pair
Wiring - Use
T568B wiring
for Cat5e/6
connection
between send
and receive
units.
Important notice:
Do not attempt to disassemble or alter the extender housing.
There are no user-serviceable parts inside the unit. Doing so
will void your warranty.
To minimize the possibility of equipment damage from
electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
Do not connect the extender to a telecommunication outlet
wired to unrelated equipment. Doing so may damage the unit or
any connected equipment. Ensure all connected twisted pair
cabling is straight-through (point-to-point).
Allow proper ventilation to reduce the risk of thermal failure.

Troubleshooting

Symptom Possible Solutions
No signal Verify that both ends of the twisted pair cables
use T568B crimp pattern.
Status LED is off
Verify HDMI cables and source and destination
HDMI ports are operational.
No signal Verify the power supplies are connected to both
the send and receive baluns.
Verify the power LEDs on both the send and
receive units are brightly illuminated.
Unusual colors in the video Power off the destination device and power it
back on to force renegotiation.
Unplug and re-plug the HDMI cable from receive
to force renegotiation.
Phone: 608-831-0880
Toll-Free: 866-4-MATMIX
Fax: 608-831-1833
