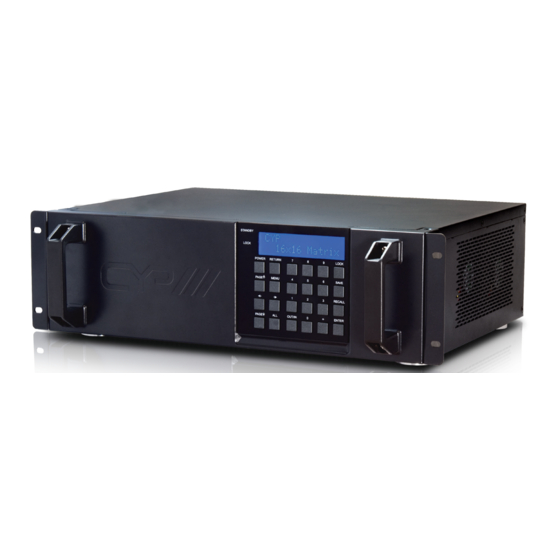

CYP MOD-16 Operation Manual

16x16 modular matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MOD-16
16x16 Modular Matrix
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOD-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP MOD-16

Summary of Contents for CYP MOD-16

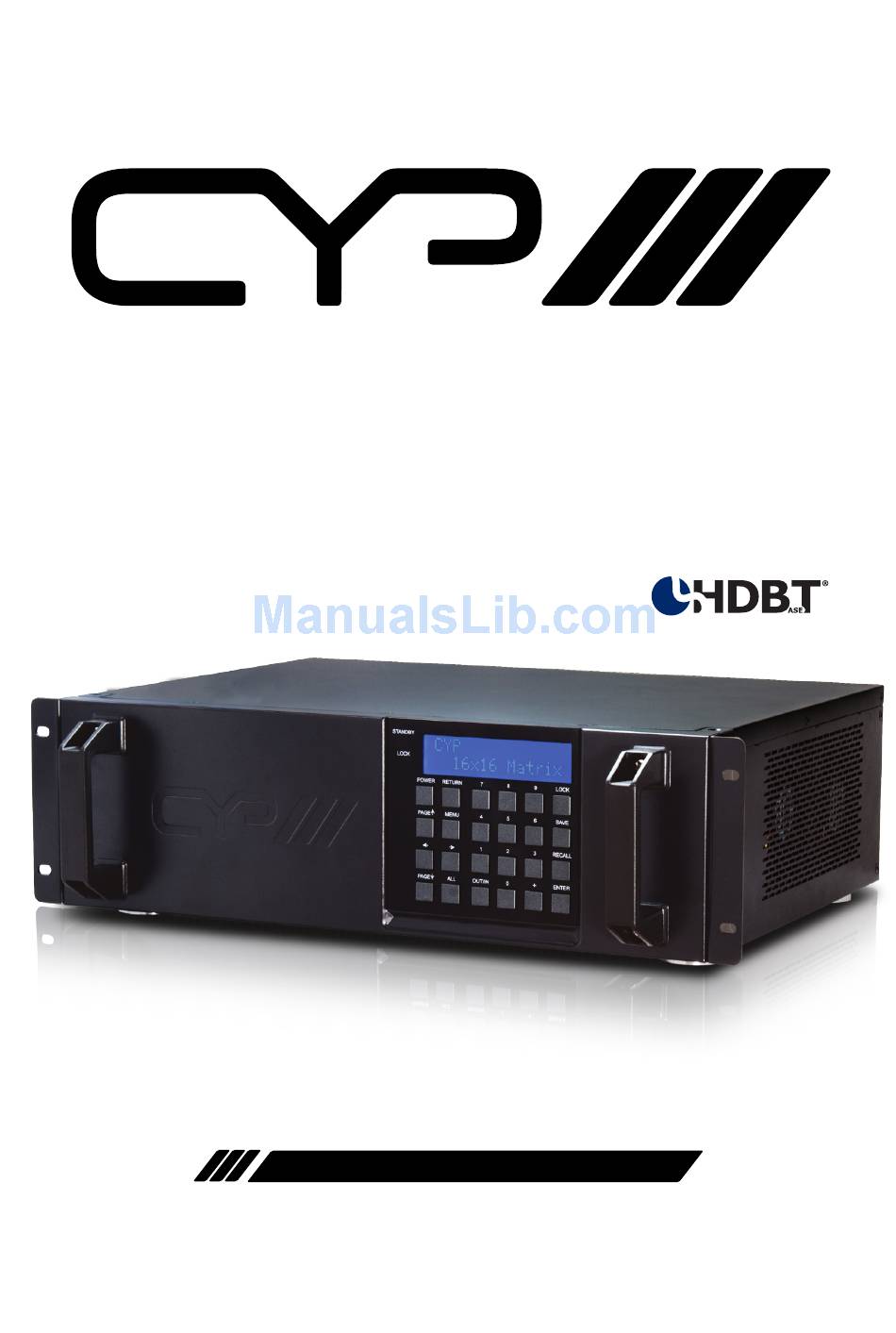

  • Page 1 MOD-16 16x16 Modular Matrix OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..............6 2. Applications ..............6 3. Package Contents ............6 4. System Requirements ........... 7 5. Features ................7 6. Operation Controls and Functions ....... 8 6.1 Front Panel ...................8 6.2 Rear Panel ..................10 6.3 RS-232 Protocols ..............11 6.4 Remote Control ...............

  • Page 6: Introduction

    1. INTRODUCTION The 16x16 Modular Matrix is designed to allow the switching and distribution of up to 16 source devices to up to 16 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration).

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS Up to 16 HDMI/DVI/CAT5e/6/7 or VGA source devices (dependent on module configuration) connected with appropriate cables. Up to 16 displays (TV or monitor) or AV receivers, equipped with HDMI/ DVI/CAT5e/6/7 connection (dependent on module configuration) connected with appropriate cables Industry standard CAT5e/6/7 cable (for CAT5e/6/7 inputs/outputs) Compatible PoC HDBaseT™...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel STANDBY LOCK POWER RETURN LOCK PAGE MENU SAVE RECALL PAGE OUT/IN ENTER POWER button & LED: Press this button to turn the device ON or press it again to put the device into standby mode. The LED will illuminate when the unit is in standby mode.
  • Page 9 connected to the lowest numbered output port. 3. Manual Mode: Supports independent EDID settings by selecting the input and output ports. B. IP 1. IP address, 2. Netmask, 3. Gateway. C. Temperature 1. Temperature 1 2. Temperature 2 NOTE: these figures show the internal temperature of the device. D.

  • Page 10: Rear Panel

    6.2 Rear Panel OUTPUT MODULE OUTPUT MODULE RS232 IR IN CONTROL IR ALL SERVICE OUTPUT 0 INPUT MODULE INPUT MODULE Note: The above panel is an example of a 16x16 HDMI configuration. OUTPUTS 1~16: Install up to 2 Output modules as required for up to 16 display or CAT5e/6/7 outputs (dependent on module configuration).

  • Page 11: Rs-232 Protocols

    INPUT 1~16: Install up to 2 Input modules as required for up to 16 source devices or CAT5e/6/7 inputs (dependent on module configuration). POWER & POWER Supply: The device will automatically turn ON when connected to an active power supply. Ventilation Fan: This fan will automatically operate when the device is switched ON.

  • Page 12: Remote Control

    6.4 Remote Control Power: Press this button to switch on the device or set it to standby mode OUTPUT: Output port selection CLEAR: Press to clear the present input/output OUTPUT CLEAR ENTER selection ENTER: Press to confirm the present input/ output selection INPUT INPUT:...

  • Page 13: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Emitter Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Ground...

  • Page 14: Rs-232 & Telnet Command

    6.4 RS-232 & Telnet Command HELP: Show Command list. Command Description Power on. Power off. OxIy Set Output (x:0~32) to Input (y:1~32). ALLOUT x Set all outputs to input (x:01~32). ACTIVE Report active I/O channels. INDETECT Input channels detection indicator. OUTDETECT Output channels detection indicator.
  • Page 15 Command Description HPDLALL Set the Hot-Plug-Detect of all inputs to Low. HPDHALL Set the Hot-Plug-Detect of all inputs to High. HPDSTATUS Report the Hot-Plug-Detect signal status of all inputs. EDIDMODE x y Set the EDID mode of input (x: 01~32) to (y:1~2). EDIDMODEALL x The EDID mode of All Input to (x:1~2) .

  • Page 16: Rs-232 & Ip To Rs-232 Rx Output Configuration

    Command Description REBOOT Reboot the System. SAVETO x Save as Preset x(1~10). RECALLTO x Recall Preset x(1~10). RESET System Reset to O1I1,O2I2,O3I3,O4I4,O5I5..VERSION Display controller firmware version. Note: Commands will be not executed unless followed by a carriage return. Commands are not case-sensitive 6.5 RS-232 &...

  • Page 17: Telnet Control

    6.6 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"...
  • Page 18 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a static IP, type ”SETIP” (For a full list of commands, see Section 6.4).

  • Page 19: Web Gui Control

    6.7 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages.
  • Page 20 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.

  • Page 21: Connection Diagram

    7. CONNECTION DIAGRAM 7.1 Example installation (16x16 HDMI Matrix) Up to 16 HDMI Outputs - TV/Displays/ Projectors Smartphone/Tablet device for WebGui Control Local Monitor Wireless Router Power OUTPUT MODULE Supply OUTPUT MODULE RS232 IR IN CONTROL IR ALL SERVICE OUTPUT 0 Backup Power INPUT...

  • Page 22: Input And Output Modules

    7.2 Input and Output Modules Output Modules (x2) CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 OUT-HBT5P-4K-8 5Play 8 port HDBaseT output module OUT-HBT4P-8 4Play 8 port HDBaseT output module OUT-HBT3P-8 3PLAY 8 port HDBaseT output module OUT-DVI-8 8 port DVI output module 4K UHD OUTPUT OUT-HDMI-4K-8...

  • Page 23: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Input ports Up to 16× HDMI or DVI or CAT5e/6/7 or VGA ) dependent on module configuration Output ports Up to 16× HDMI or DVI or CAT5e/6/7 dependent on module on module configuration Power Supply 2×...

  • Page 24: Technical Specifications (Input Modules)

    8.2 Technical Specifications (Input Modules) IN-HDMI-8 8 Port HDMI Input Module Video Bandwidth 225MHz/6.75Gbps Input ports 8× HDMI Video resolutions PC: VGA ~WUXGA@60RB HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS- HD Master Audio (32~192KHz Fs sample rate) IN-DVI8 8 Port DVI input module Video Bandwidth 225MHz/6.75Gbps...

  • Page 25: Technical Specifications (Output Modules)

    8.3 Technical Specifications (Output Modules) OUT-HDMI-8 8 Port HDMI output module Video Bandwidth 225MHz/6.75Gbps Input ports 8× HDMI Video resolutions PC: VGA ~WUXGA@60RB HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) OUT-DVI8 8 Port DVI output module Video Bandwidth 225MHz/6.75Gbps...
  • Page 26 OUT-HBT4P-8 8 Port HDBaseT output module Video Bandwidth 225MHz/6.75Gbps Features Support HDBaseT/PoC/IR/RS232 Output ports 8× CAT5e/6, 8× IR Extender, 8× IR Blaster IR Frequency 30~50Hz Video resolutions PC: VGA ~ WUXGA HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs samplerate) OUT-HDBT-4K-8 8 Port HDBaseT output module Video Bandwidth...

  • Page 27: Cat5E/6/7 Cable Specification

    8.4 CAT5e/6/7 Cable Specification OUT-HBT3P-8 CABLE DISTANCE Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5E/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower (HD Video) than 5.3 Gbps or below 225 MHz TMDS clock).

  • Page 28: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Power over Cable Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
  • Page 32 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
